Rear Quarter Glass: Removal

Remove the glass in the same procedure as for windshield glass. Refer to REMOVAL  , Windshield Glass.

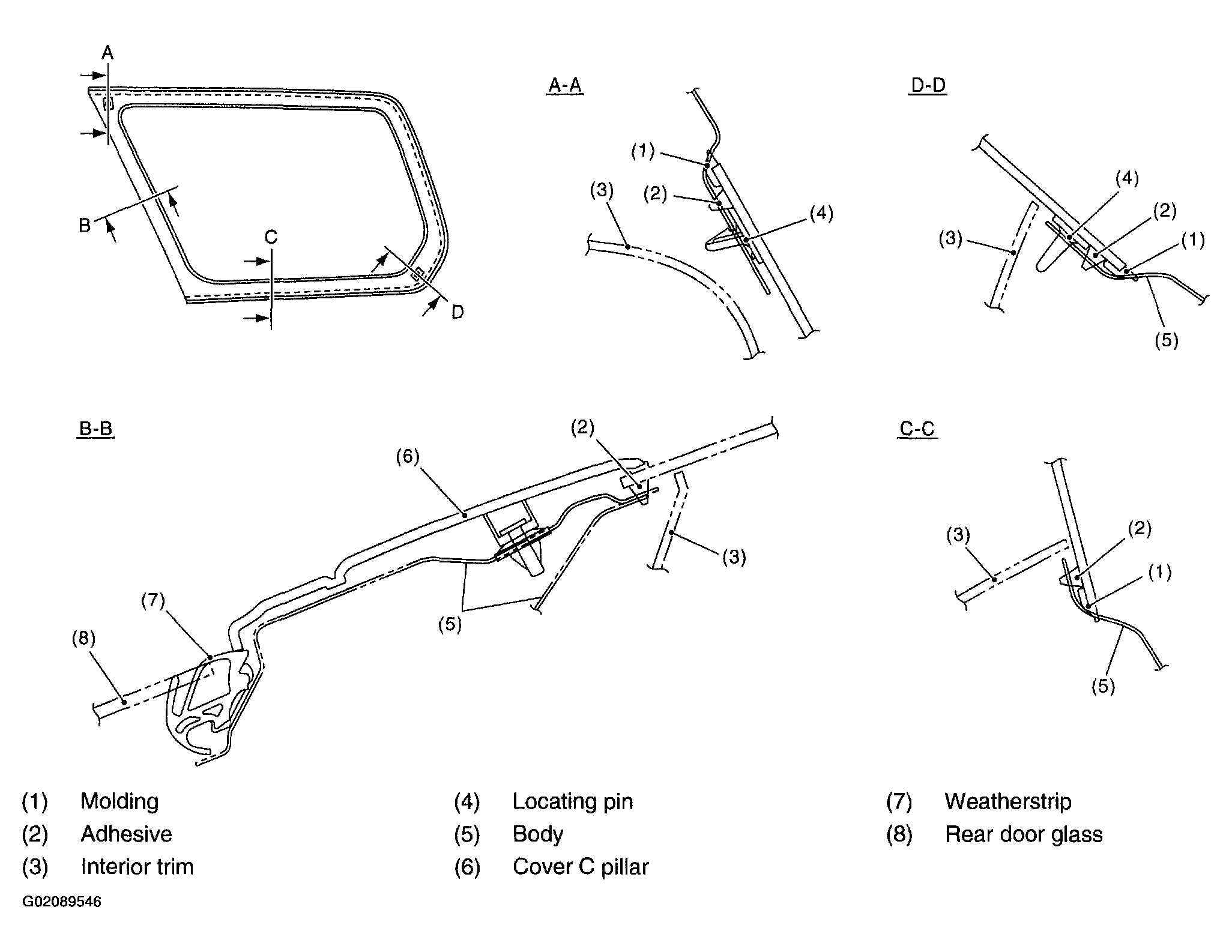

Fig 1: Identifying Components Of Rear Quarter Glass
G02089546Courtesy of SUBARU OF AMERICA, INC.
