Front Door Glass: Adjustment

NOTE: Before adjustment, ensure that all adjusting bolts of stabilizer, upper stopper, and sash are loose and door glass is raised so that it is in contact with weatherstrip.

Temporarily tighten one adjusting bolt on one side of rear sash at the midpoint of slotted hole in the inner panel.
Temporarily tighten the regulator B-channel in a position at the top of slotted hole.
Lower the door glass 10 to 15 mm (0.39 to 0.59 in) from fully closed position. While applying outward pressure of 45.0 +/- 5 N (4.6+/-0.5 kg, 11.0+/-1.1 lb) (F) to upper edge of glass above midpoint of two outer stabilizers, press the inner stabilizer at pressure of 25+/-5 N (2.5+/-0.5 kg, 5.5+/-1.1 lb) to the glass, then secure it.

Fig 1: Adjusting Front Door Glass
Courtesy of SUBARU OF AMERICA, INC.

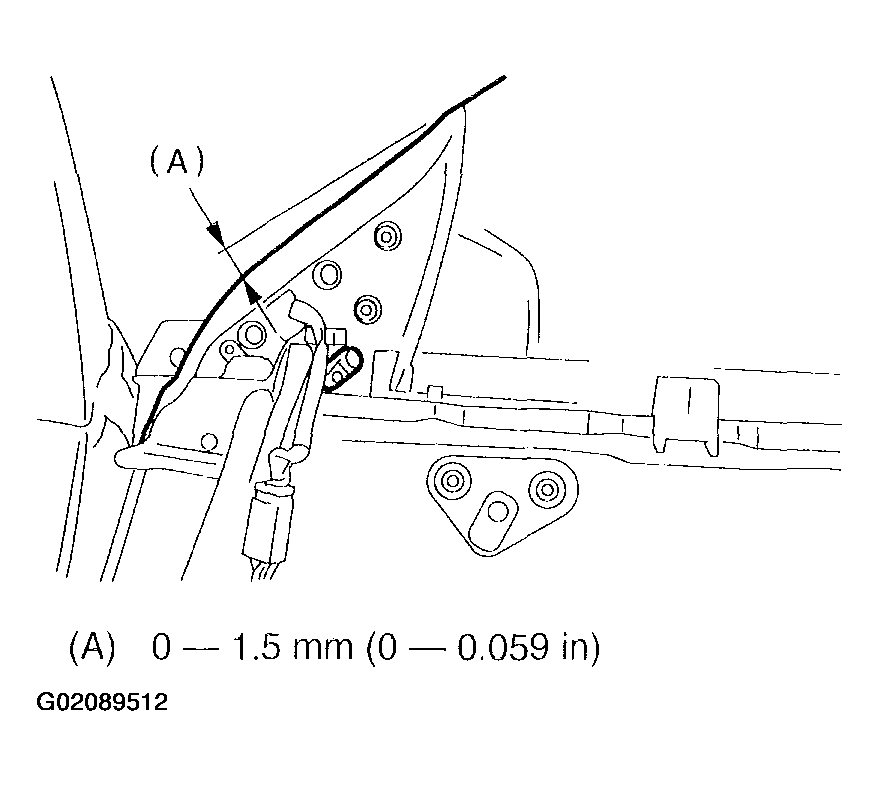

For adjustment of clearance between front glass and center pillar cover, loosen the nuts (A), and move the rear sash back and forward until clearance becomes the value shown. (Clearance between upper side and lower side is within 15 mm (0.059 in).)

Fig 2: Loosening Nuts & Moving Rear Sash Back & Forward (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Loosening Nuts & Moving Rear Sash Back & Forward (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

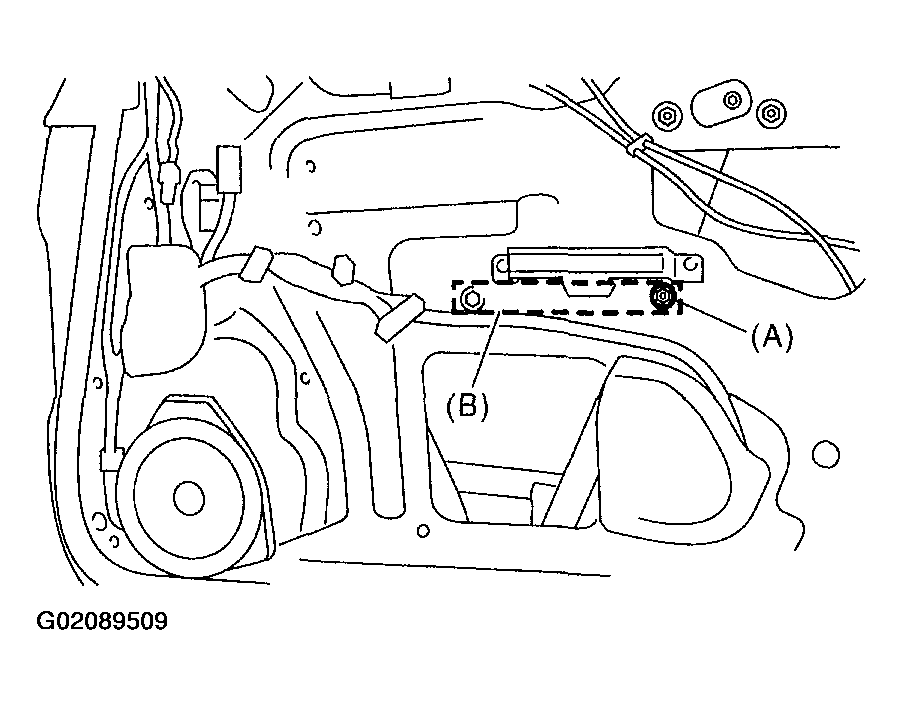

For adjustment of upper and lower ends of center pillar, loosen the adjusting nut (A) of B-channel (B).

Fig 4: Loosening Adjusting Nut Of B-Channel
Courtesy of SUBARU OF AMERICA, INC.

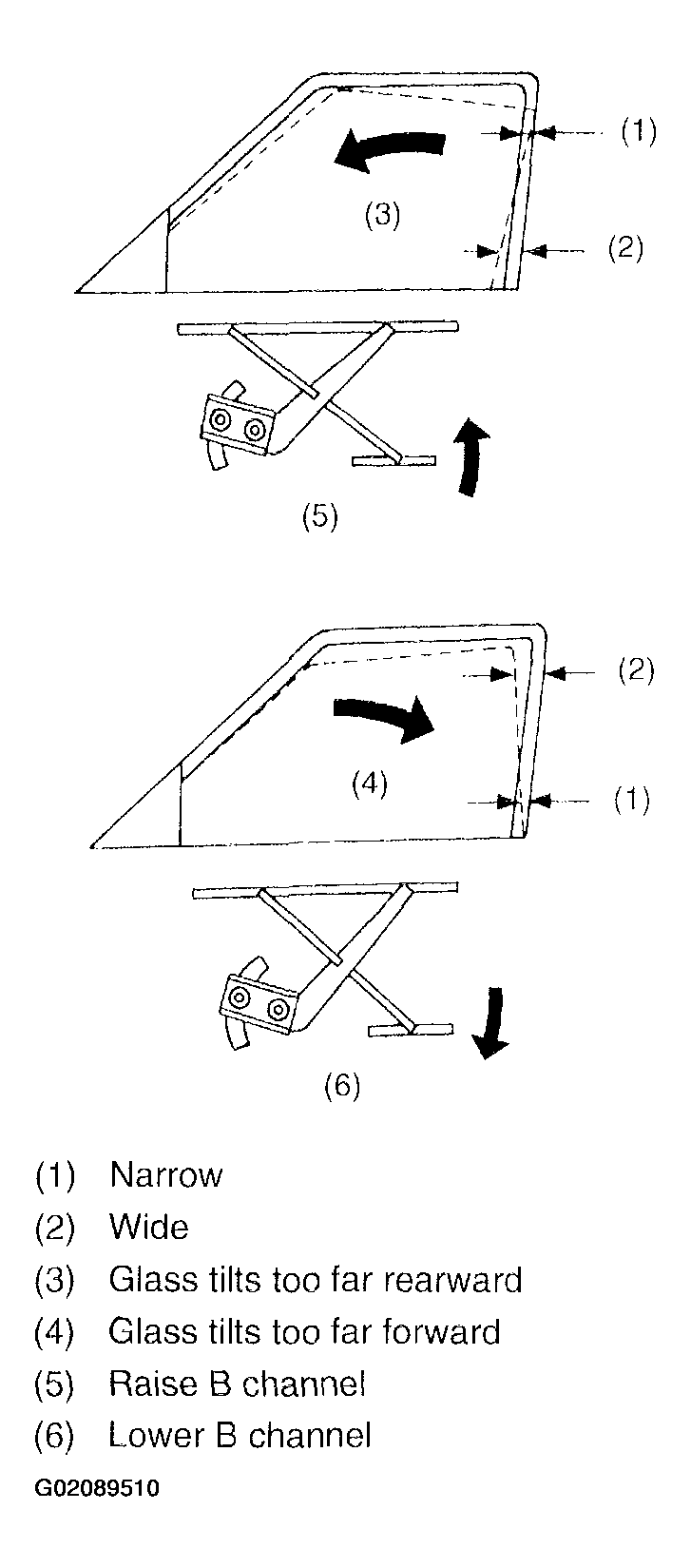

Adjust so that the upper and lower ends of center pillar are the same size.

Fig 5: Adjusting Upper & Lower Ends Of Center Pillar
Courtesy of SUBARU OF AMERICA, INC.
For glass stroke adjustment, close the door, raise glass until positional relationship between glass and weatherstrip becomes as shown. And secure the glass so that the upper stopper lightly touches the glass holder.

Fig 6: Raising Glass Until Positional Relationship Between Glass & Weatherstrip
Courtesy of SUBARU OF AMERICA, INC.

For preventing wind noise, adjust the glass at the position where tip of gusset is raised up a little.

Fig 7: Adjusting Glass To Prevent Wind Noise Raising Tip Of Gusset
Courtesy of SUBARU OF AMERICA, INC.
After stabilizer adjustment, carry out the glass crimp adjustment. First, visually ensure positional relationship between retainer & molding and glass of the roof side, and then begin with rear sash adjustment. Adjust two adjusting bolts alternately step by step to obtain dimensions shown below (crosssection A).
NOTE: If two nuts are loosened at the same time, sash moves back and forth. Therefore, when one nut is adjusted, secure the other.
Make the same adjustment of two adjusting bolts of rear sash.

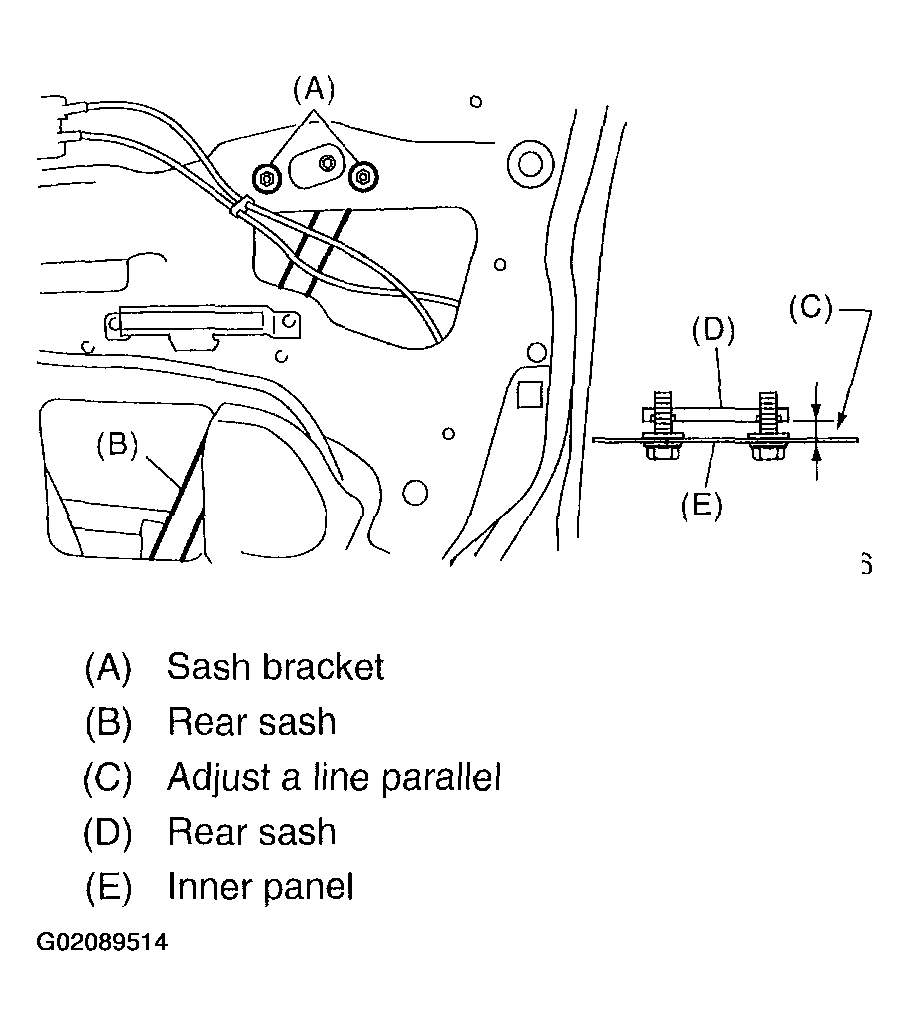

Fig 8: Adjusting Bolts Of Rear Sash
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Do not tilt the sash bracket to inner panel during adjustment. Otherwise smooth regulator operation cannot be achieved.

Fig 9: Adjusting Inner Panel Sash Bracket
Courtesy of SUBARU OF AMERICA, INC.
Make adjustment of front sash in the same manner as that of rear sash.
NOTE: Although front and rear sashes must, as a rule, be adjusted in the same manner, in some door installation, the adjustment in a different manner may be required. However, adjustment of one sash to the maximum amount and the other to the minimum amount is not permitted. Such adjustment may result in application of excessive load to regulator.
After adjustments, tighten the nuts.
After adjustment to glass, close the door. If there is a gap between outer lip of gusset and glass surface, adjust the gap with adjusting nut (A) in lower fitting part of the gusset to prevent generation of wind noise.
During adjustments, loosen the other three clamping screws.

Fig 10: Loosening Clamping Screws
Courtesy of SUBARU OF AMERICA, INC.
After adjustment, tighten the bolts and nuts.
