Integrated Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Remove the nut, then remove the integrated module while disconnecting the connector.

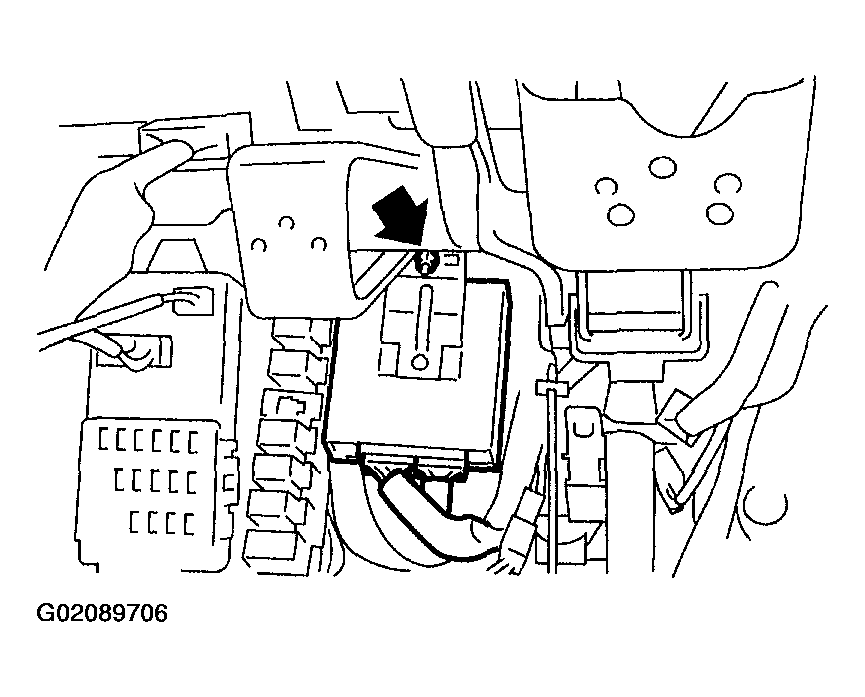

    Fig 1: Removing Integrated Module
    G02089706Courtesy of SUBARU OF AMERICA, INC.
