Cruise Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to REMOVAL , Glove Box.
  3. Disconnect the connector from cruise control module.
  4. Remove the bolt, then detach the cruise control module (A).

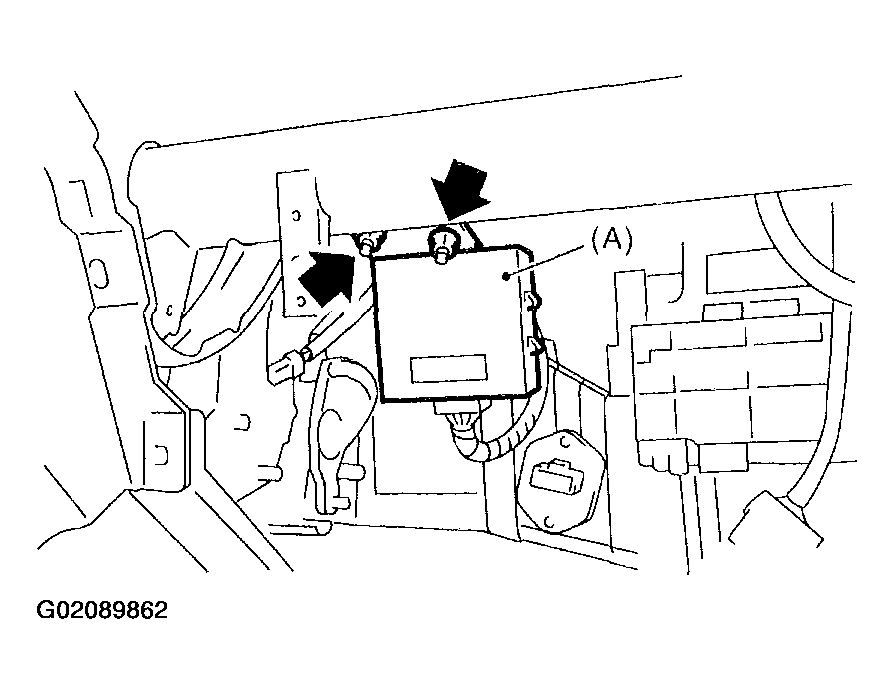

    Fig 1: Removing Cruise Control Module
    G02089862Courtesy of SUBARU OF AMERICA, INC.
