Reduction Drive Gear: Removal

  1. Remove the transmission assembly from the vehicle. Refer to REMOVAL , Automatic Transmission Assembly.
  2. Remove rear vehicle speed sensor, and separate the transmission case and extension case.

    Refer to REMOVAL , Extension Case.

  3. Remove the reduction driven gear. Refer to REMOVAL , Reduction Driven Gear.
  4. Using ST, extract the reduction drive gear.

    ST1 499737100 PULLER

    ST2 899524100 PULLER SET

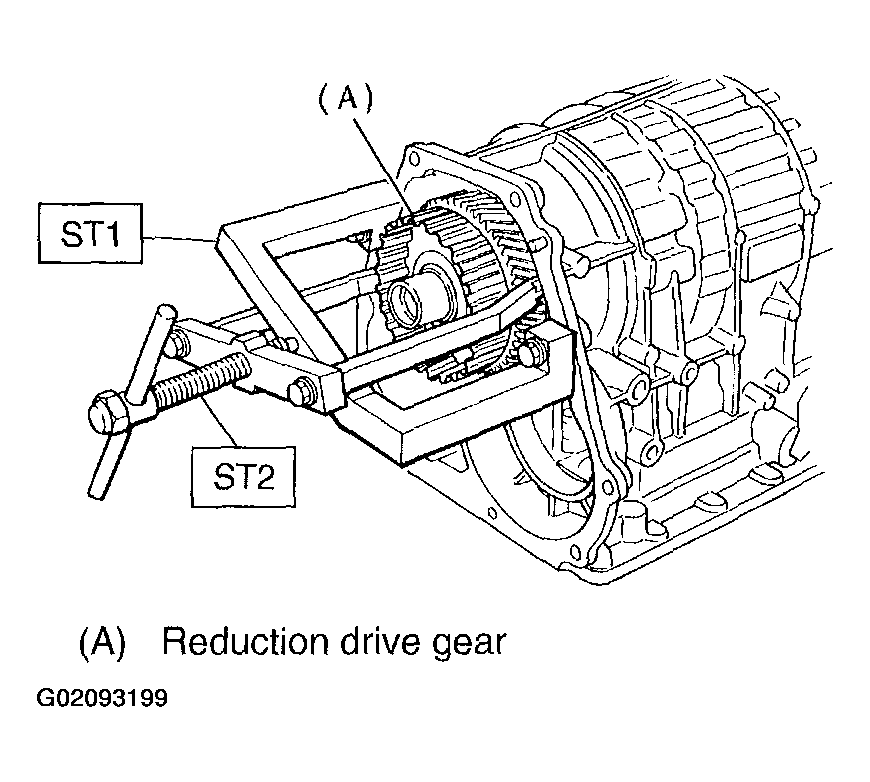

    Fig 1: Removing Reduction Drive Gear
    G02093199Courtesy of SUBARU OF AMERICA, INC.
