Home >> Subaru >> 2003 >> Forester X, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> General Description >> Specifications >> Planetary Gear And Plate

Planetary Gear And Plate

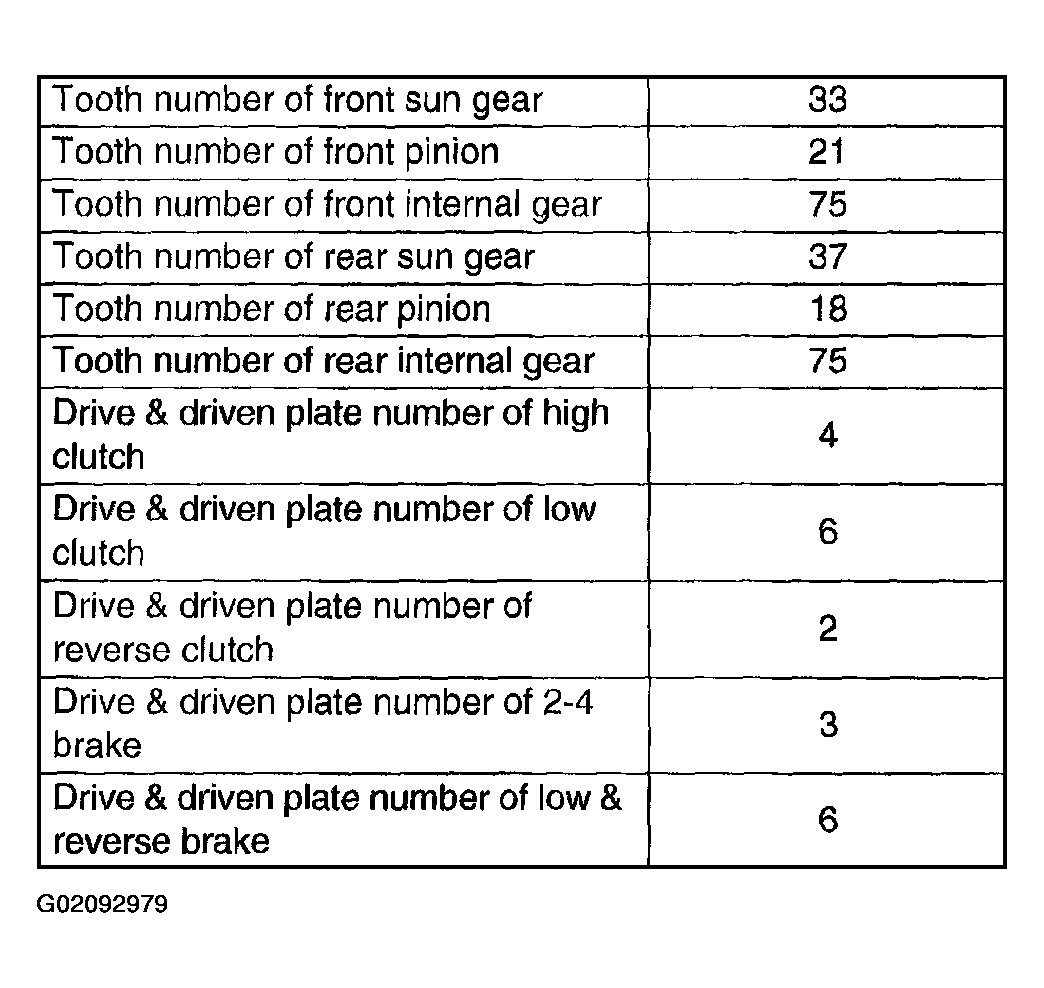

Fig 1: Planetary Gear & Plate Specifications Chart

G02092979

Courtesy of SUBARU OF AMERICA, INC.
