Differential Gear

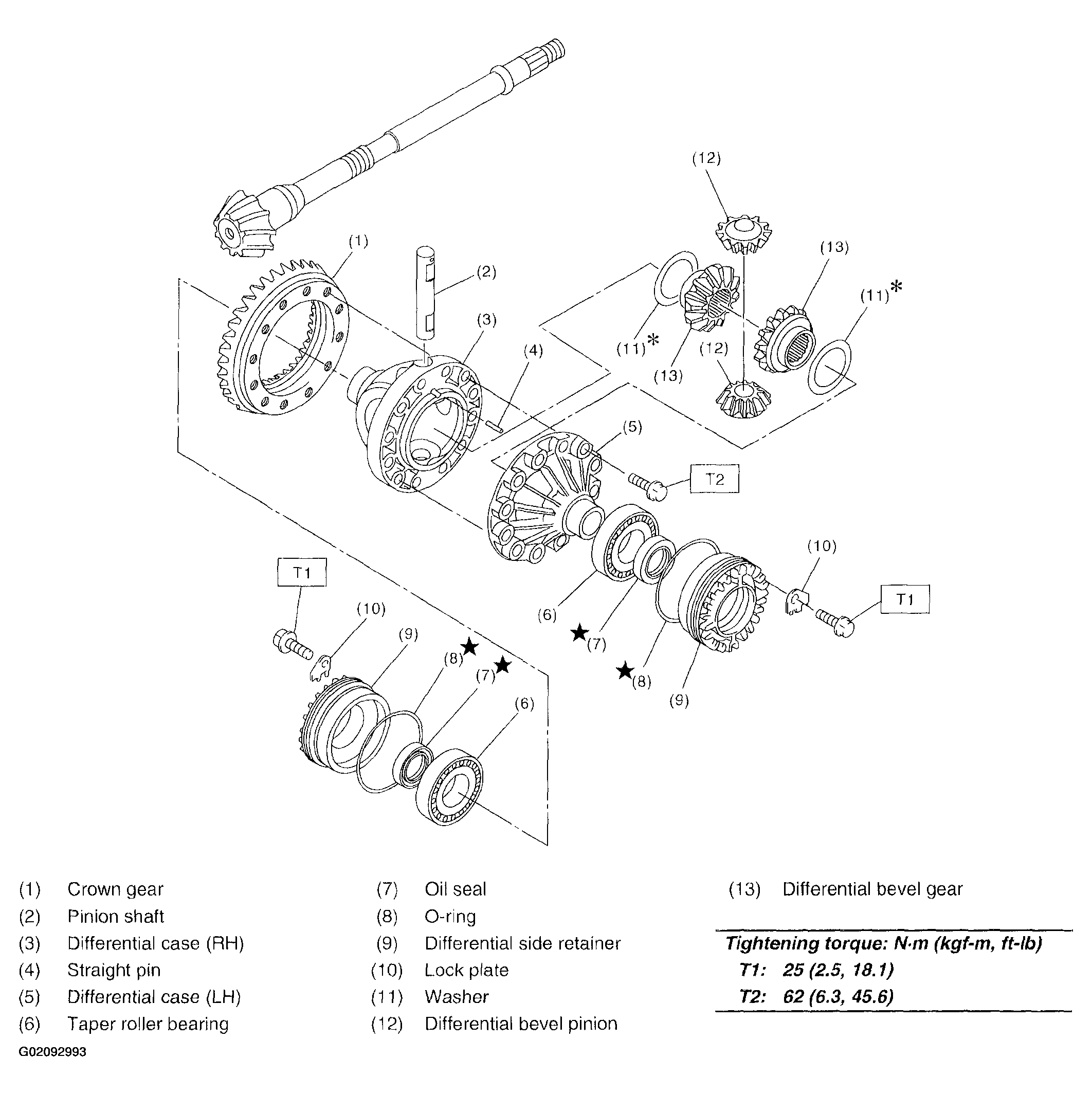

Fig 1: Exploded View Of Differential Gear With Torque Specifications

G02092993

Courtesy of SUBARU OF AMERICA, INC.
