Forester X, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - Mechanism & Function
>>
Schematic Drawing
>>
1ST Speed Of 1 Range
1ST Speed Of 1 Range

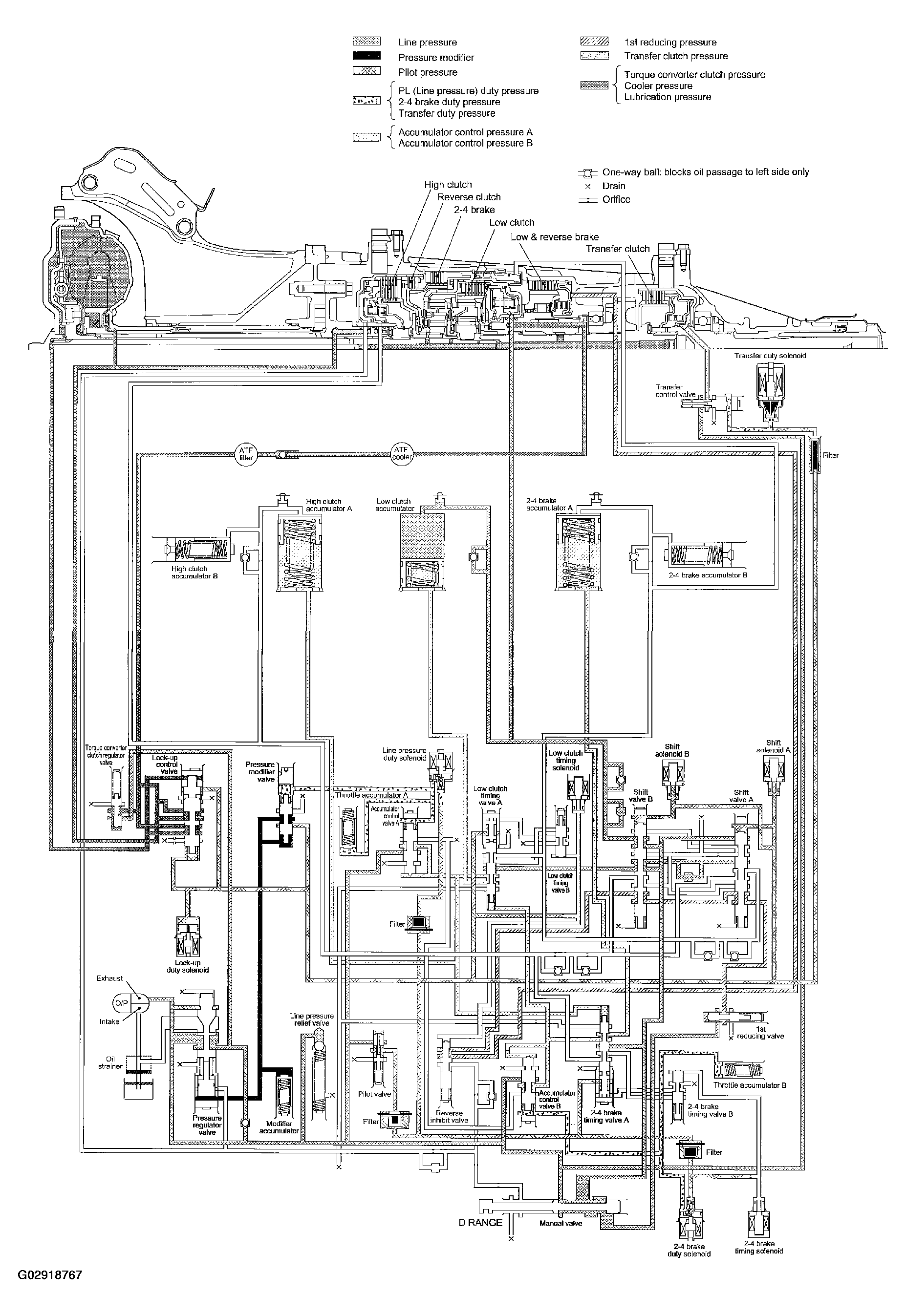

Fig 1: Hydraulic Schematic Diagram - 1st Speed Of 1 Range
Courtesy of SUBARU OF AMERICA, INC.
