Hydraulic Control Valve: Function

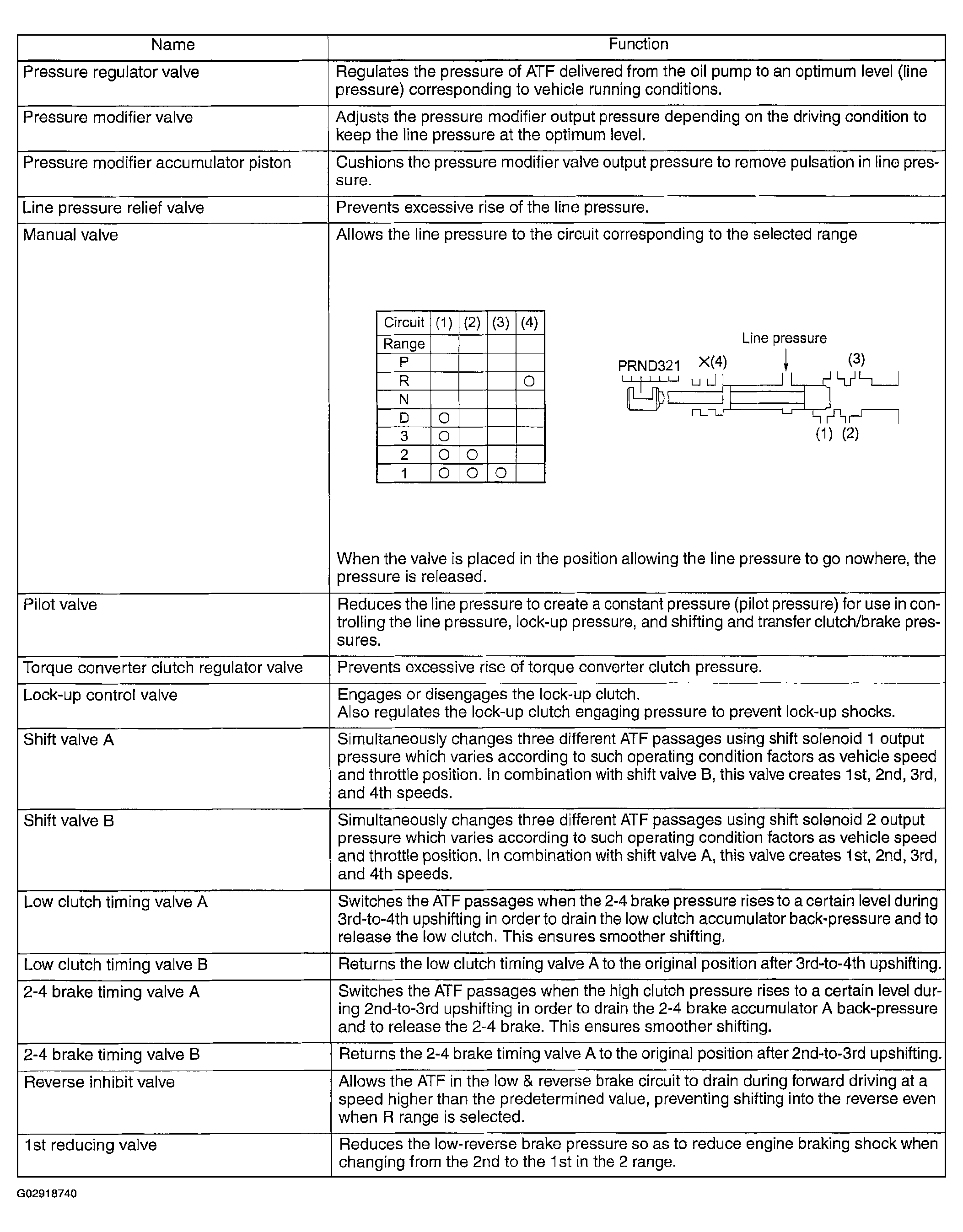

Fig 1: Hydraulic Control Valve Function Chart (1 Of 2)
G02918740Courtesy of SUBARU OF AMERICA, INC.

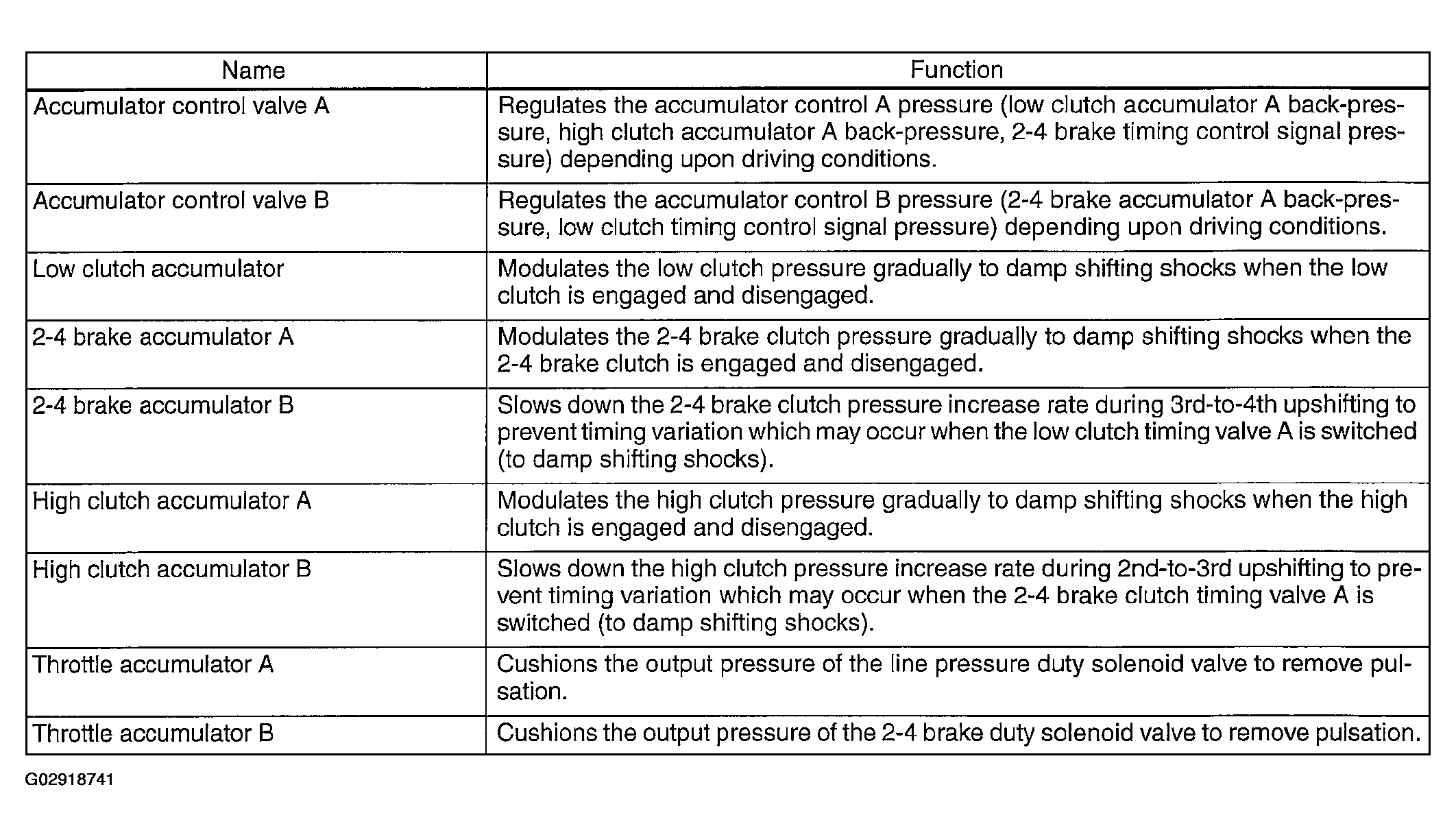

Fig 2: Hydraulic Control Valve Function Chart (2 Of 2)
G02918741Courtesy of SUBARU OF AMERICA, INC.
