Transmission Control Module (TCM) I/O Signal: Schematic

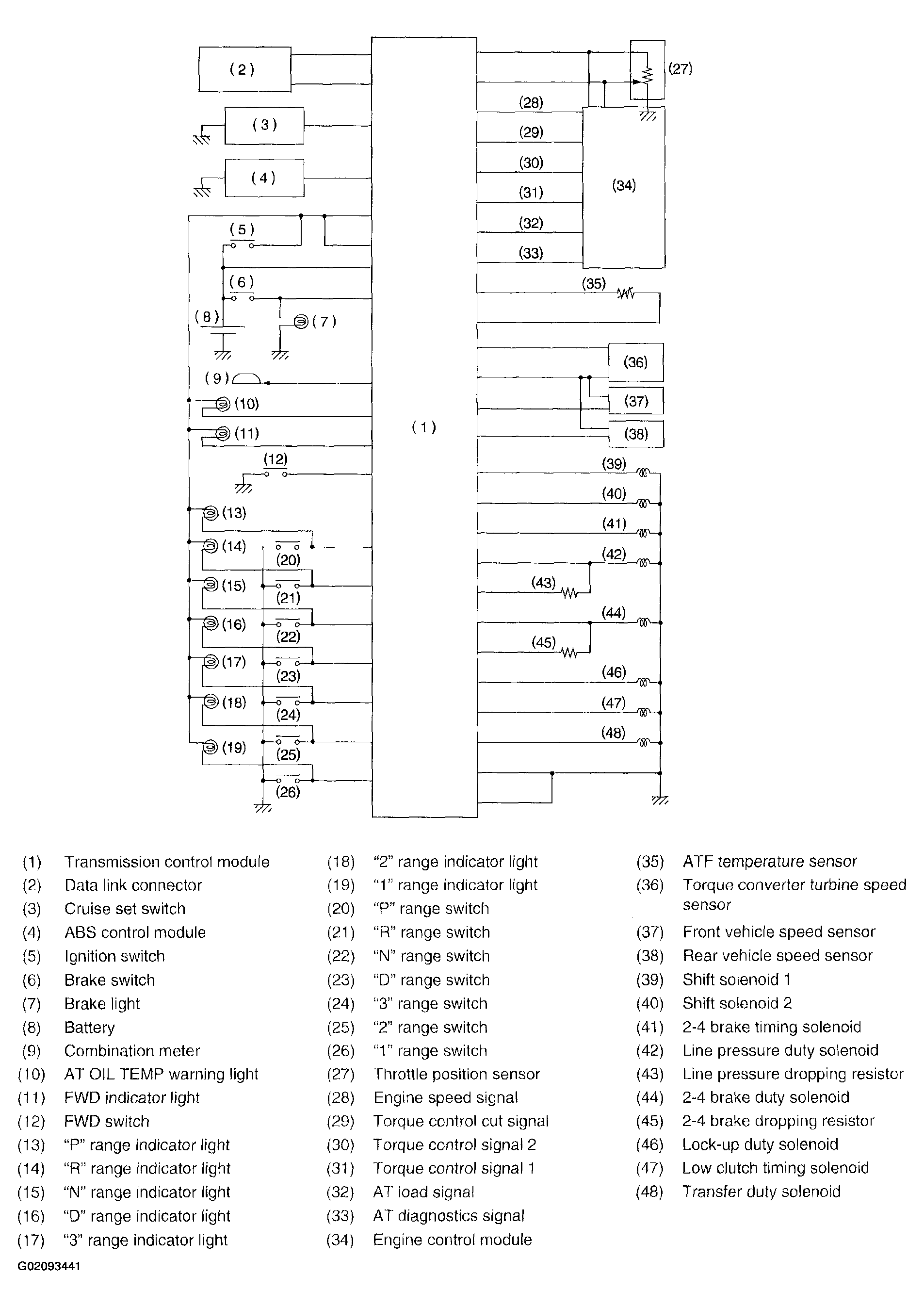

Fig 1: TCM I/O Signal Schematic Diagram

G02093441

Courtesy of SUBARU OF AMERICA, INC.
