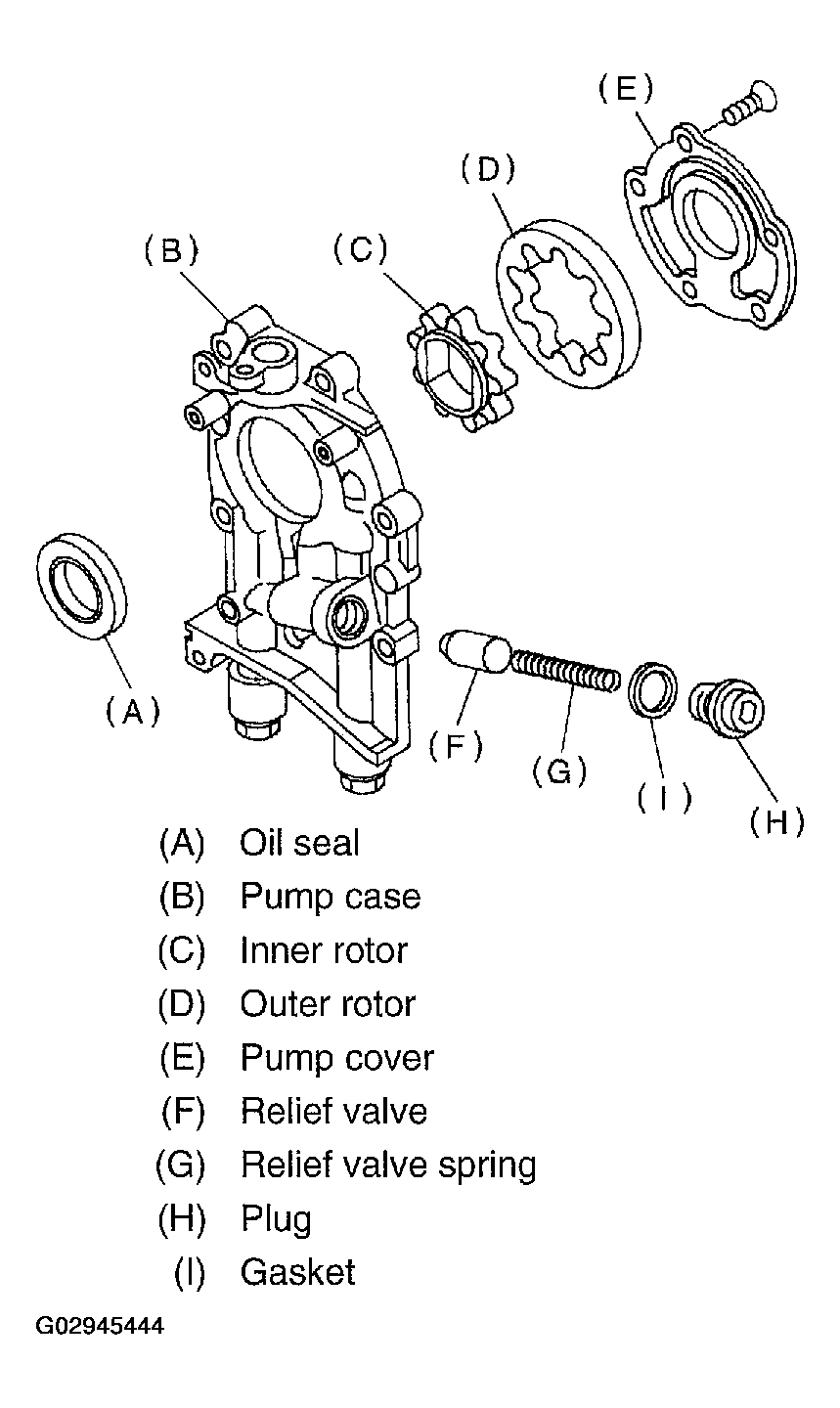

Oil Pump: Disassembly
Remove the screws which secure oil pump cover and disassemble oil pump. Inscribe alignment marks on the inner and outer rotors so that they can be replaced in their original positions during reassembly.
CAUTION:
Before disassembling the oil pump, remove the relief valve.
