Oil Pump: Assembly

  1. Install the front oil seal by using ST.

    ST 499587100 OIL SEAL INSTALLER

    NOTE: Use a new oil seal.
    Fig 1: Installing Oil Seal
    G02945445Courtesy of SUBARU OF AMERICA, INC.
  2. Apply a coat of engine oil to the inner and outer rotors.
  3. Install the inner and outer rotors in their original positions.
  4. Install the oil relief valve and relief valve spring and plug.
    NOTE: Use a new gasket.
  5. Install the oil pump cover.

    Tightening torque:

    1. T1: 5 N.m (0.5 kgf-m, 3.6 ft-lb)
    2. T2: 44 N.m (4.5 kgf-m, 32.5 ft-lb)

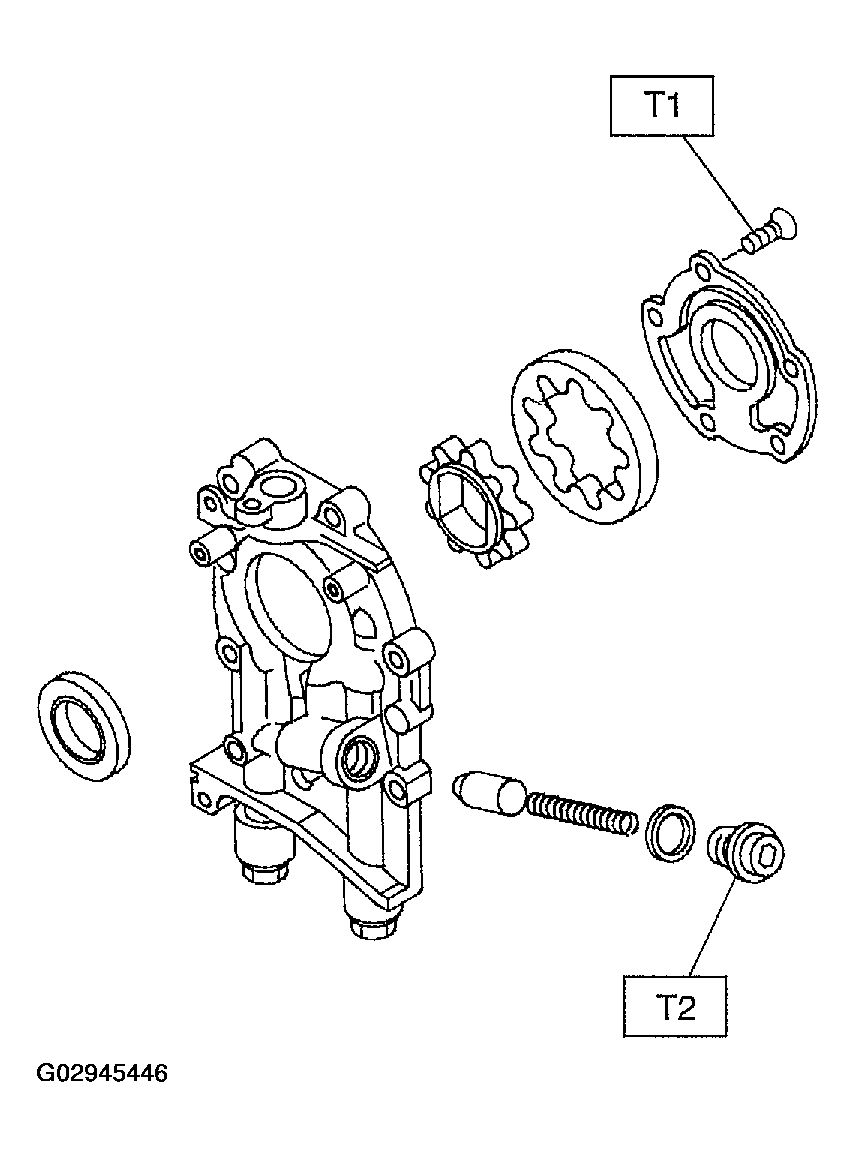

    Fig 2: Installing Oil Pump Cover
    G02945446Courtesy of SUBARU OF AMERICA, INC.
