Oil Pressure System: Schematic

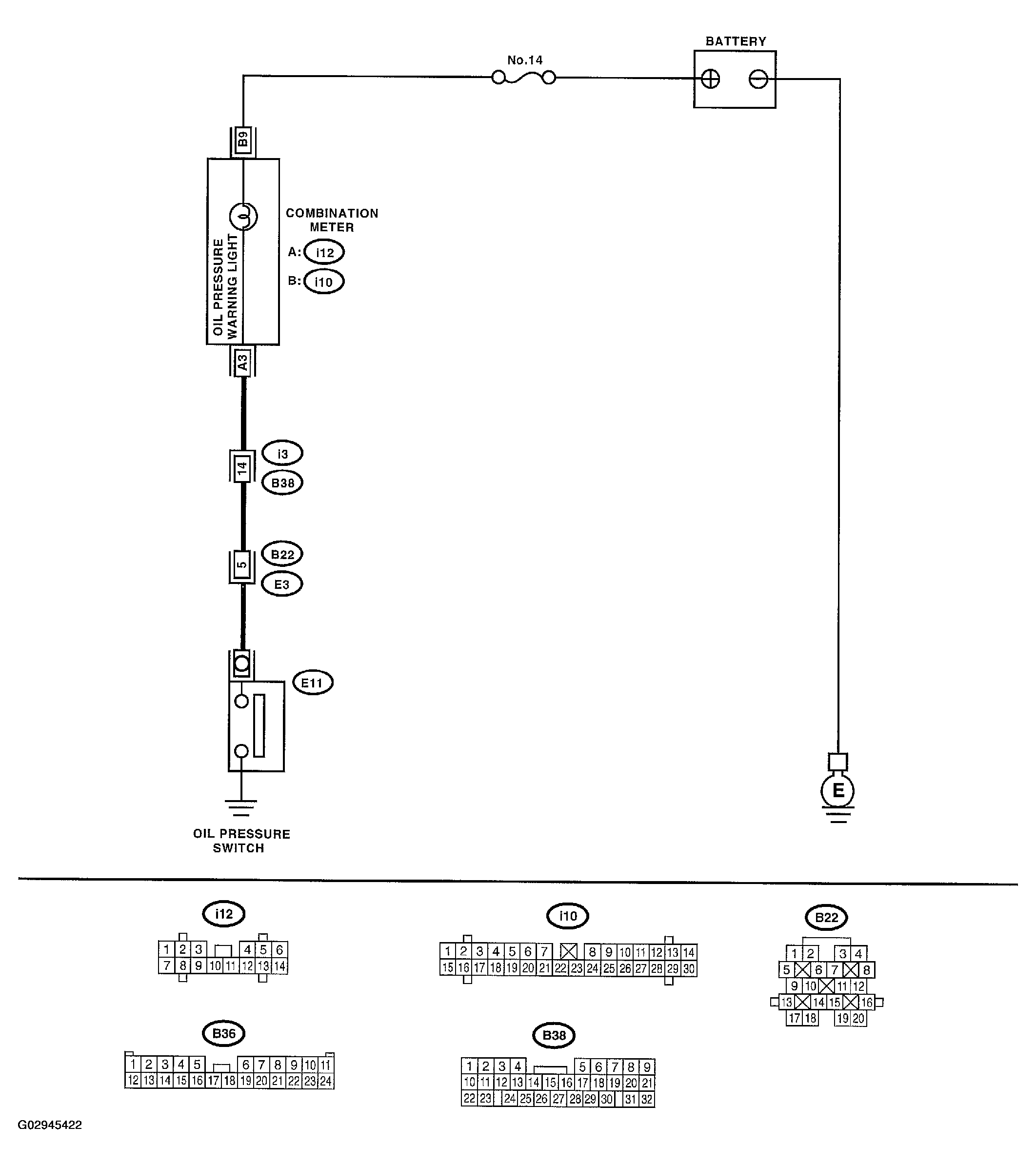

Fig 1: Wiring Diagram - Oil Pressure System

G02945422

Courtesy of SUBARU OF AMERICA, INC.
