Oil Pressure System: Inspection

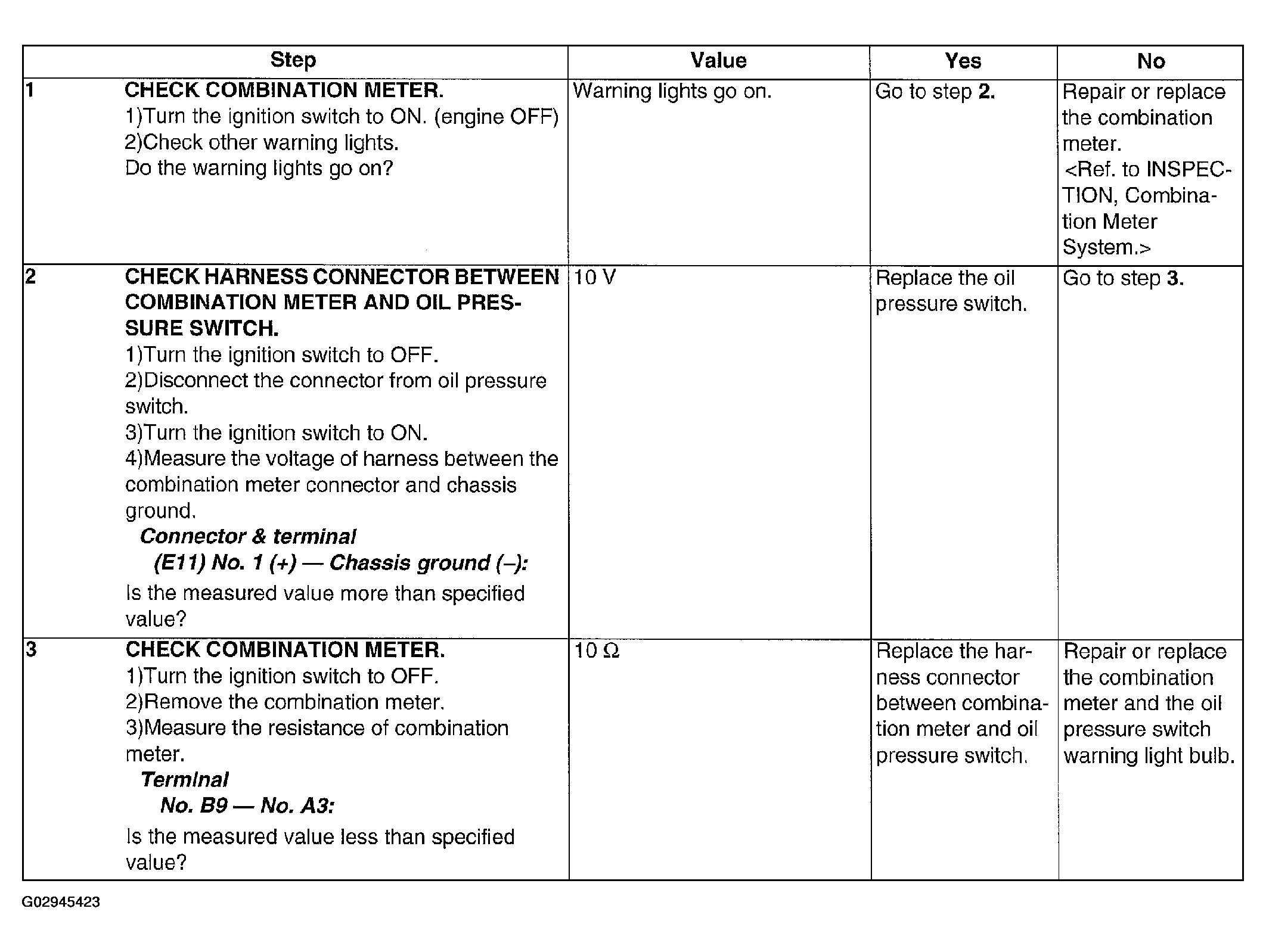

Fig 1: Oil Pressure System Inspection Table
G02945423Courtesy of SUBARU OF AMERICA, INC.
