Oil Pressure Switch: Installation

Apply fluid packing to the oil pressure switch threads.
Fluid packing:
1. Parts No. 004403042
2. THREE BOND 1324 or equivalent

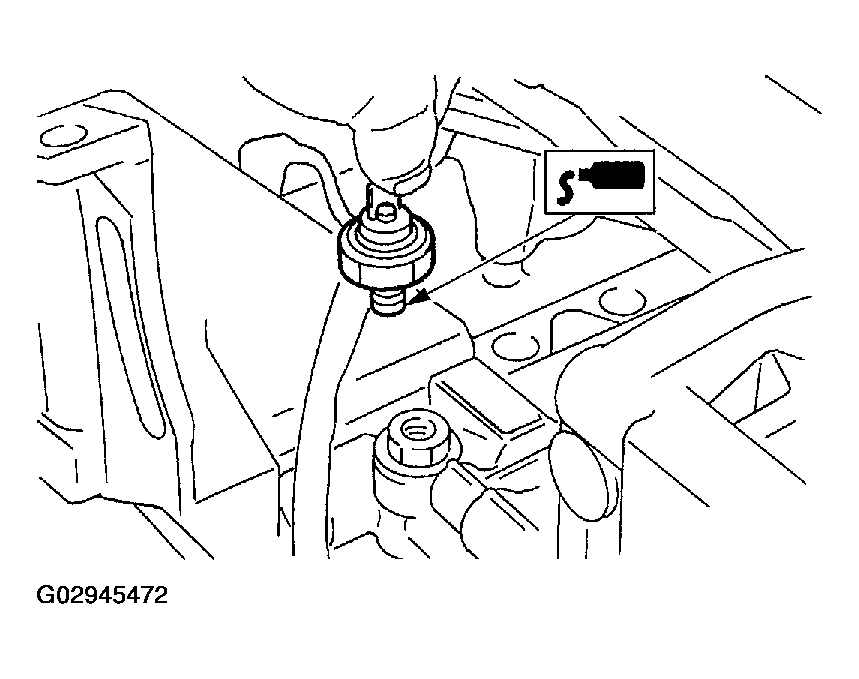

Fig 1: Applying Fluid Packing To Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch onto engine block.
Tightening torque:
1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

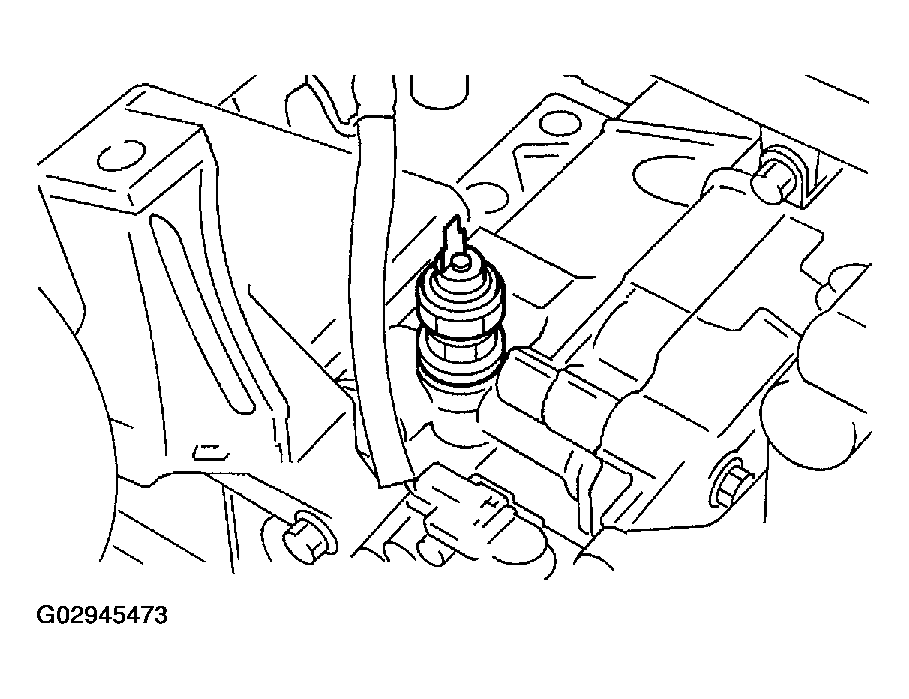

Fig 2: Installing Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal of oil pressure switch.

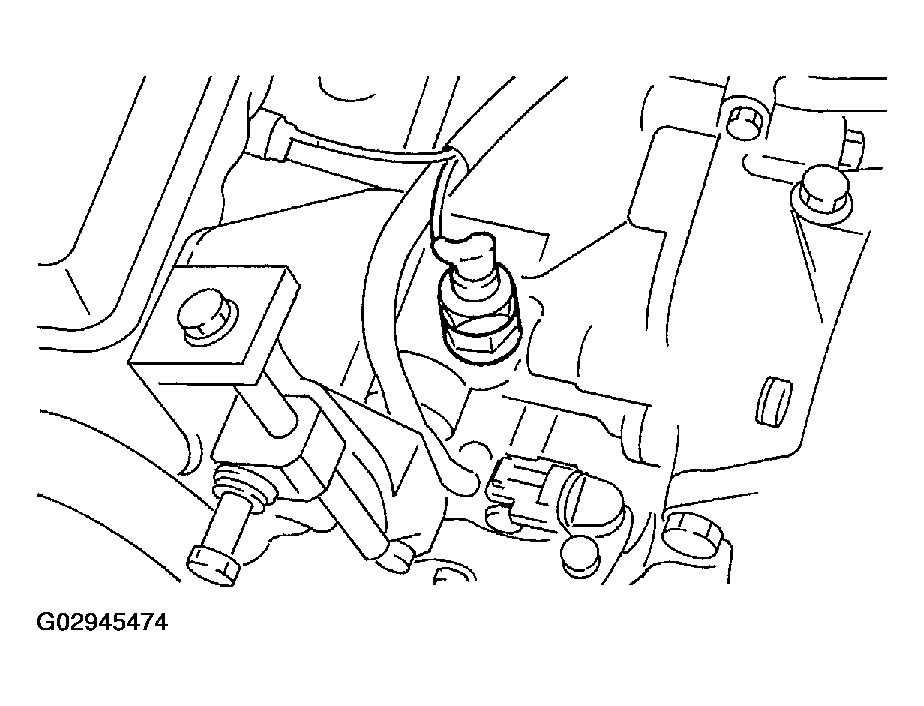

Fig 3: Connection Terminal Of Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the generator on bracket. Refer to INSTALLATION , Generator.
