RH Side

Install in the reverse order of removal.

CAUTION: Replace O-rings with new ones.

Fig 1: Replacing O-Ring With New Ones

G02945277

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

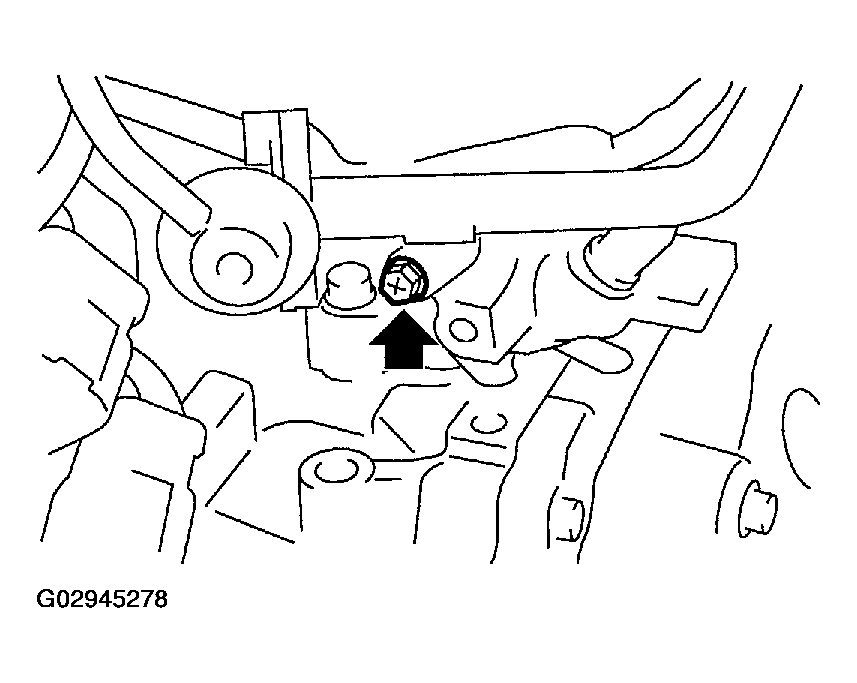

Fig 2: Locating Bolt For Tightening

G02945278

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

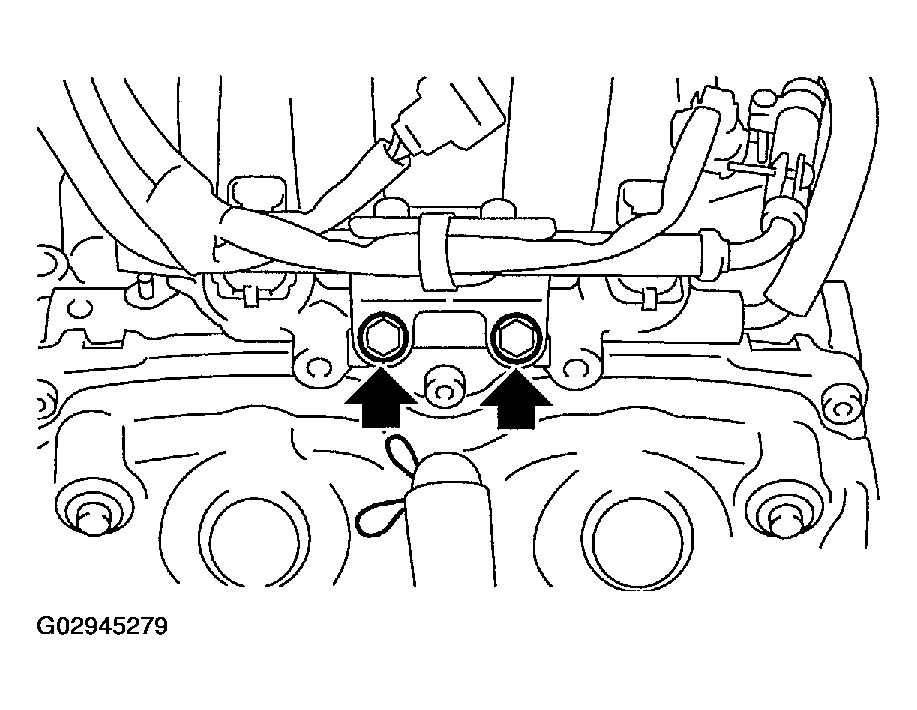

Fig 3: Locating Bolt For Tightening

G02945279

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

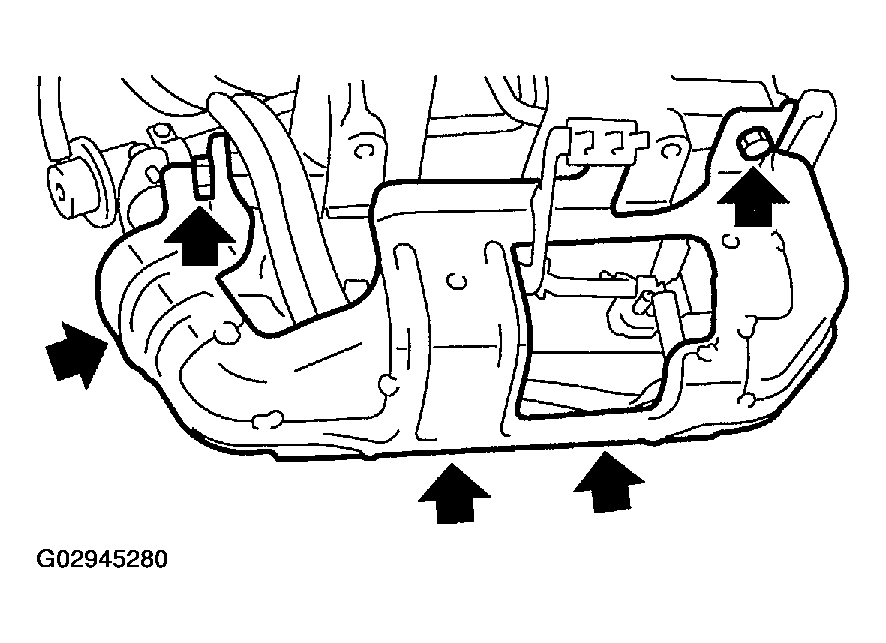

Fig 4: Locating Bolt For Installing Fuel Pipe Protector

G02945280

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

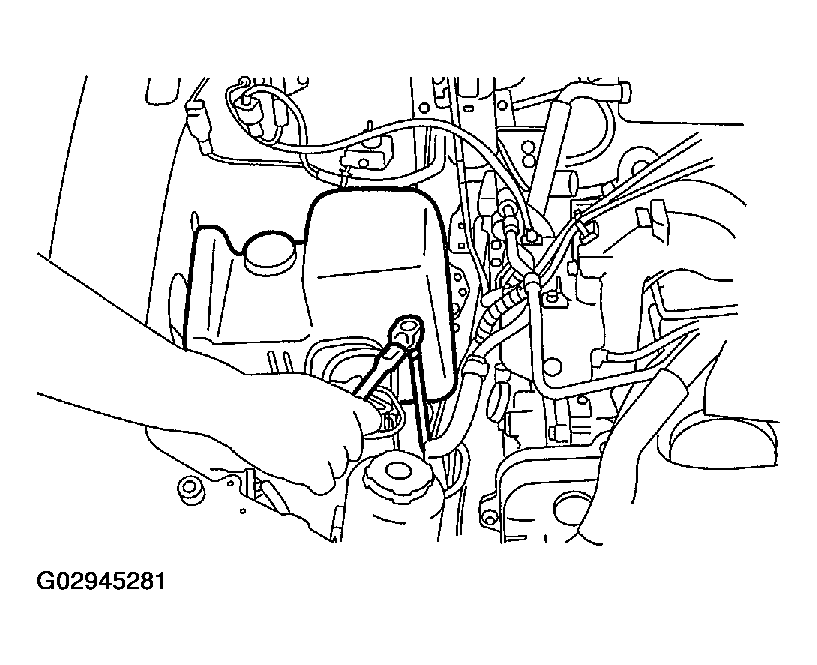

Fig 5: Tightening Bolt

G02945281

Courtesy of SUBARU OF AMERICA, INC.
