LH Side

Install in the reverse order of removal.

CAUTION: Replace O-rings with new ones.

Fig 1: Replacing O-Ring With Harness

G02945282

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

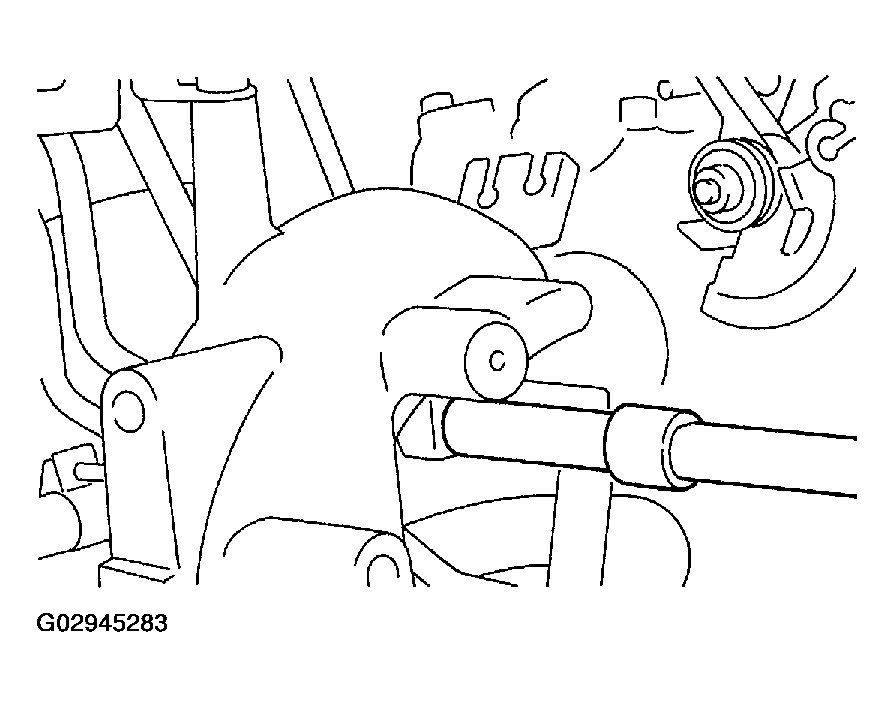

Fig 2: Tightening Injector Pipe

G02945283

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

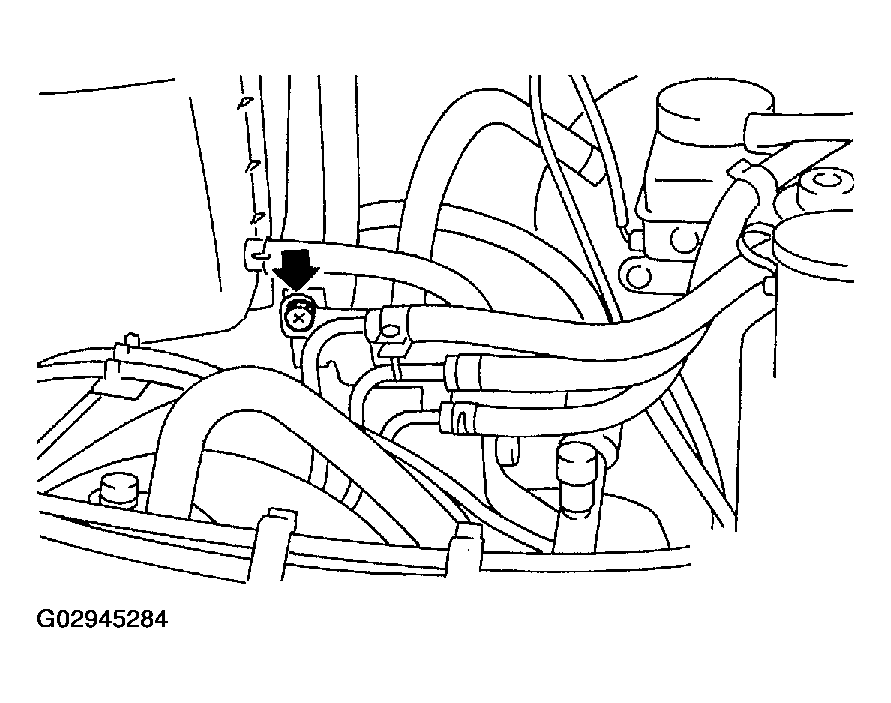

Fig 3: Locating Bolt For Tightening

G02945284

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

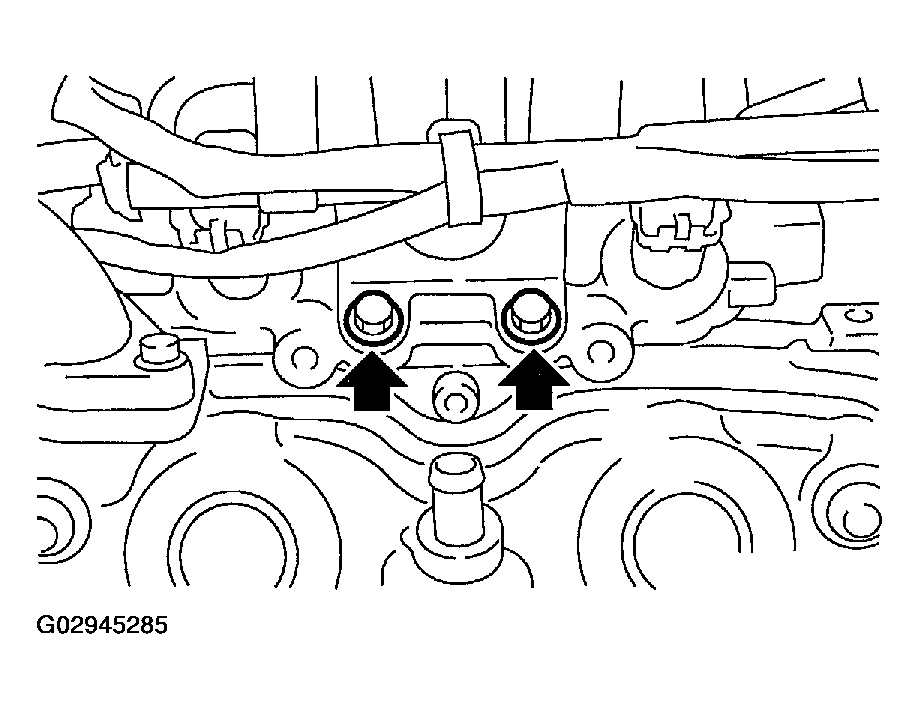

Fig 4: Locating Bolts For Tightening

G02945285

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

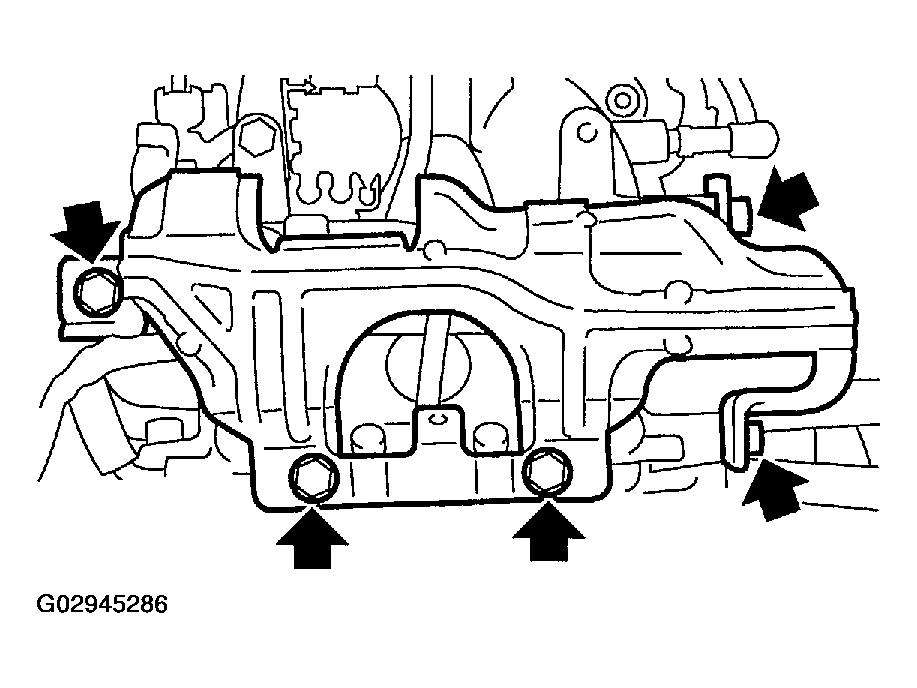

Fig 5: Locating Bolt For Tightening Fuel Pipe Protector

G02945286

Courtesy of SUBARU OF AMERICA, INC.
