Radiator Fan System: Schematic

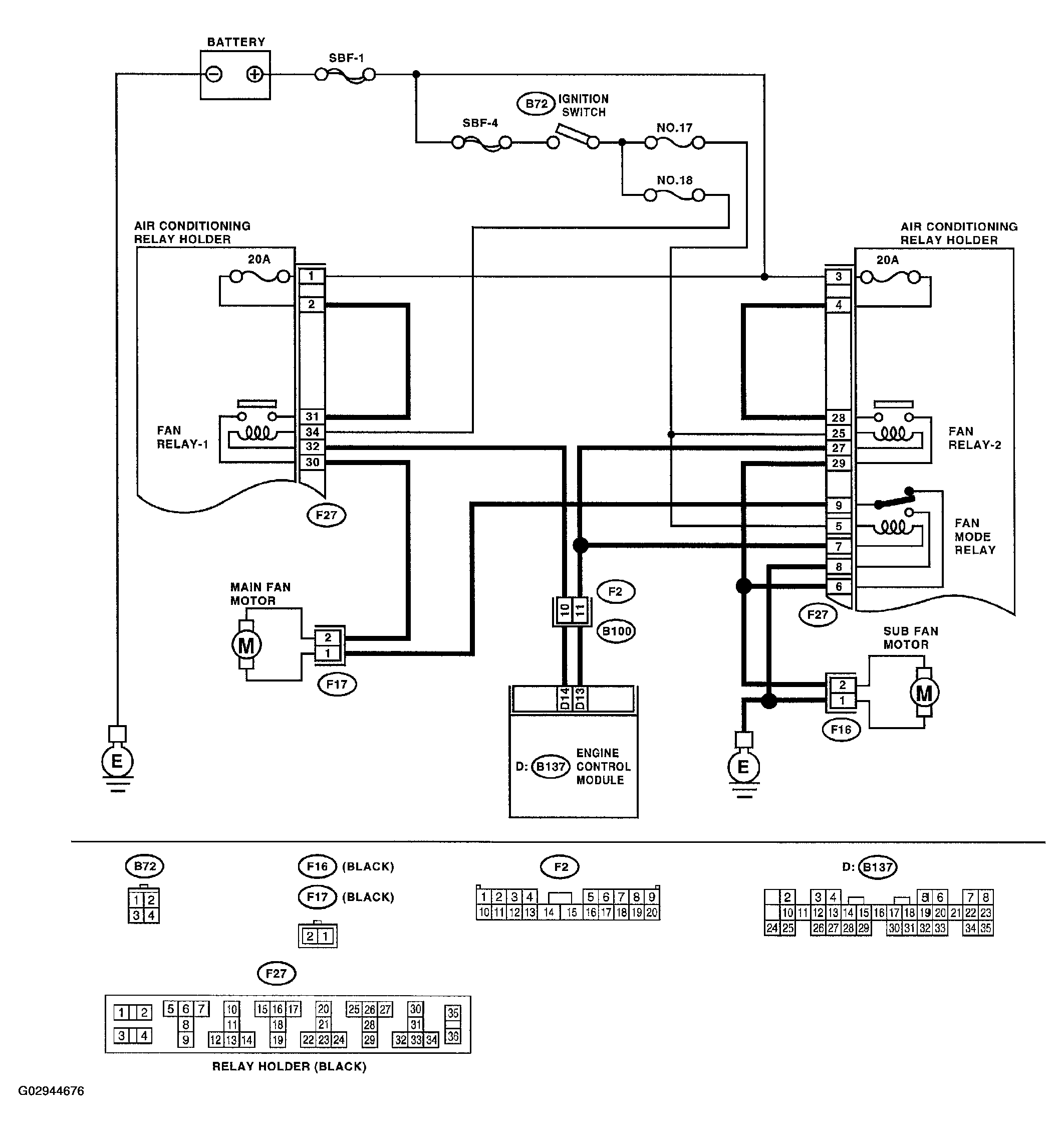

Fig 1: Radiator Fan System Circuit Diagram

G02944676

Courtesy of SUBARU OF AMERICA, INC.
