General Diagnostics Table: Inspection

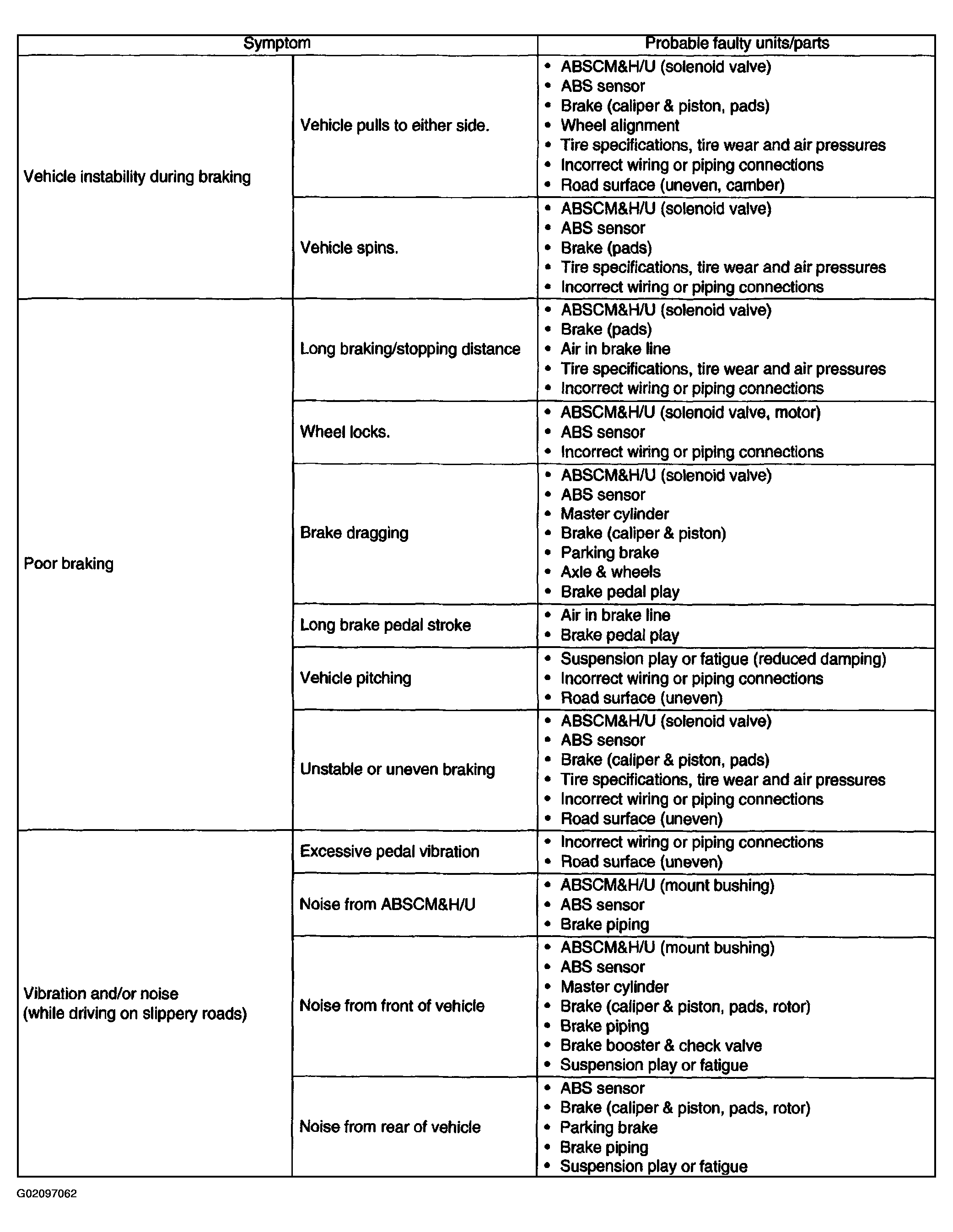

Fig 1: General Diagnostics Inspection Chart

G02097062

Courtesy of SUBARU OF AMERICA, INC.
