With SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation.

NOTE:

To check the harness for broken wires or short circuits, shake it while holding it or the connector.
Check list for interview. Refer to CHECK LIST FOR INTERVIEW .

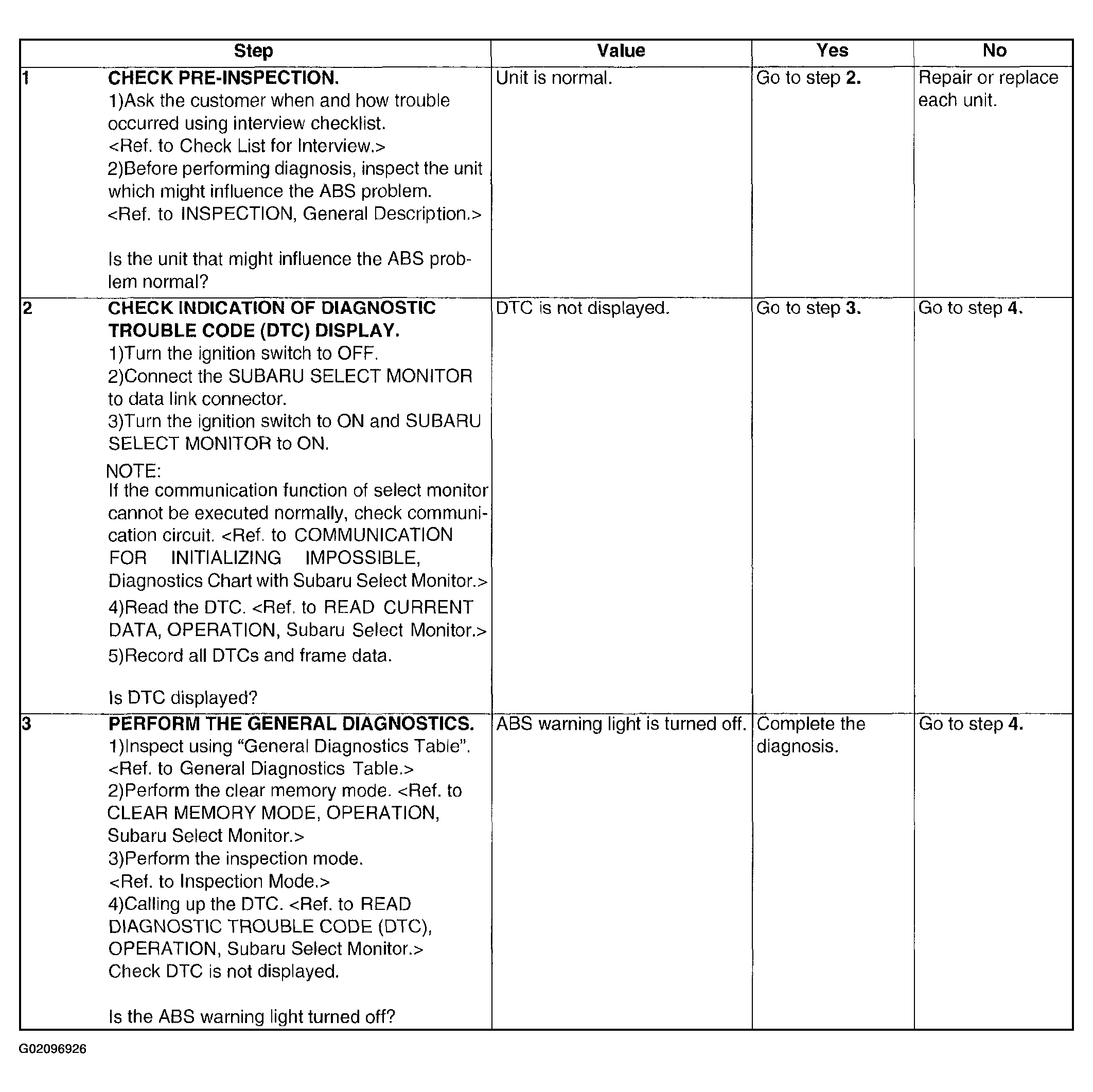

Fig 1: Basic Diagnostic Procedure Chart (With Subaru Select Monitor - 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

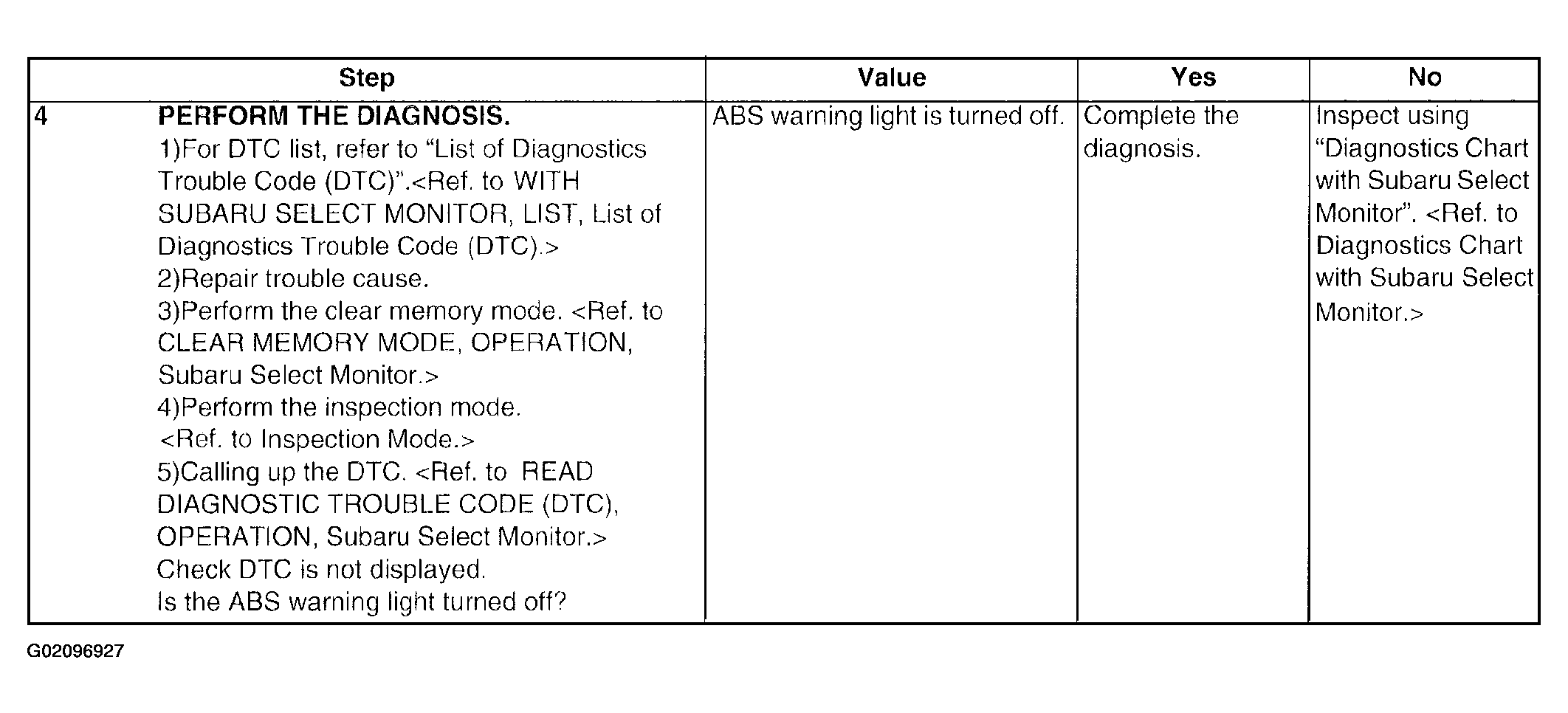

Fig 2: Basic Diagnostic Procedure Chart (With Subaru Select Monitor - 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
