Manual Transmission Assembly: Installation

Install rear cushion rubber to transmission assembly.
1. Tightening torque: 35 N.m (3.6 kgf-m, 26 ft-lb)
Install transmission onto engine.
1. Gradually raise transmission with transmission jack.
2. Engage them at splines.
NOTE: Be careful not to strike main shaft against clutch cover.

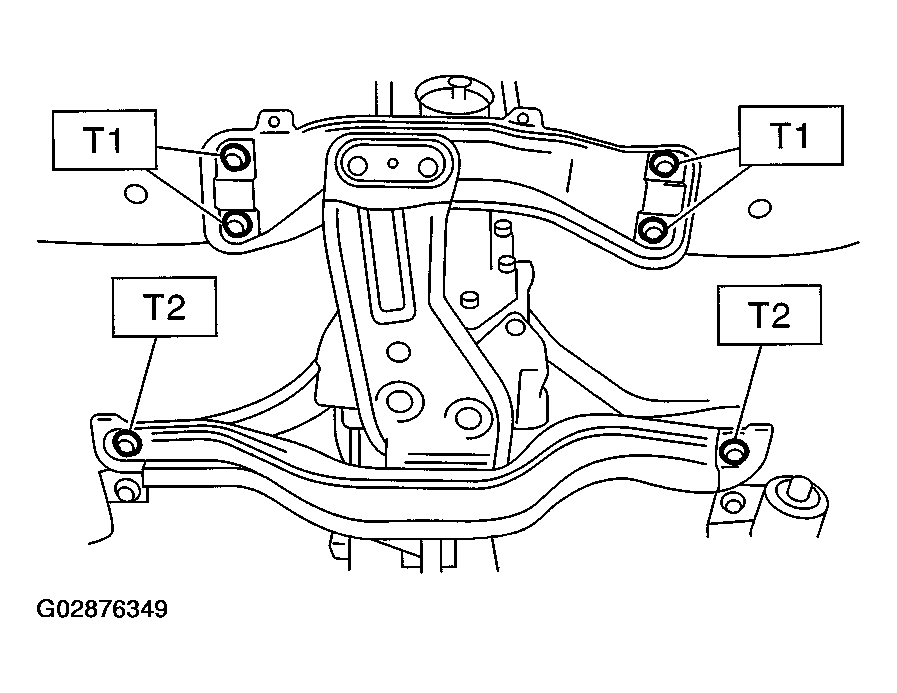

Install transmission rear crossmember.
Tightening torque:
1. T1: 75 N.m (7.6 kgf-m, 55 ft-lb)
2. T2: 140 N.m (14.3 kgf-m, 103 ft-lb)
Fig 1: Installing Transmission Rear Crossmember Bolts
Courtesy of SUBARU OF AMERICA, INC.
Take off transmission jack.
Tighten nuts which hold lower side of transmission to engine.
1. Tightening torque: 50 N.m (5.1 kgf-m, 37 ft-lb)
Fig 2: Tightening Nuts Holding Lower Side Of Transmission
Courtesy of SUBARU OF AMERICA, INC.
Connect engine and transmission.
1. Install starter.
  < Ref. to INSTALLATION , Starters.>
2. Tighten bolt which holds right upper side of transmission to engine.
  1. Tightening torque: 50 N.m (5.1 kgf-m, 37 ft-lb)
  Fig 3: Tightening Bolts Holding Right Upper Side Of Transmission
  Courtesy of SUBARU OF AMERICA, INC.
Remove ST.

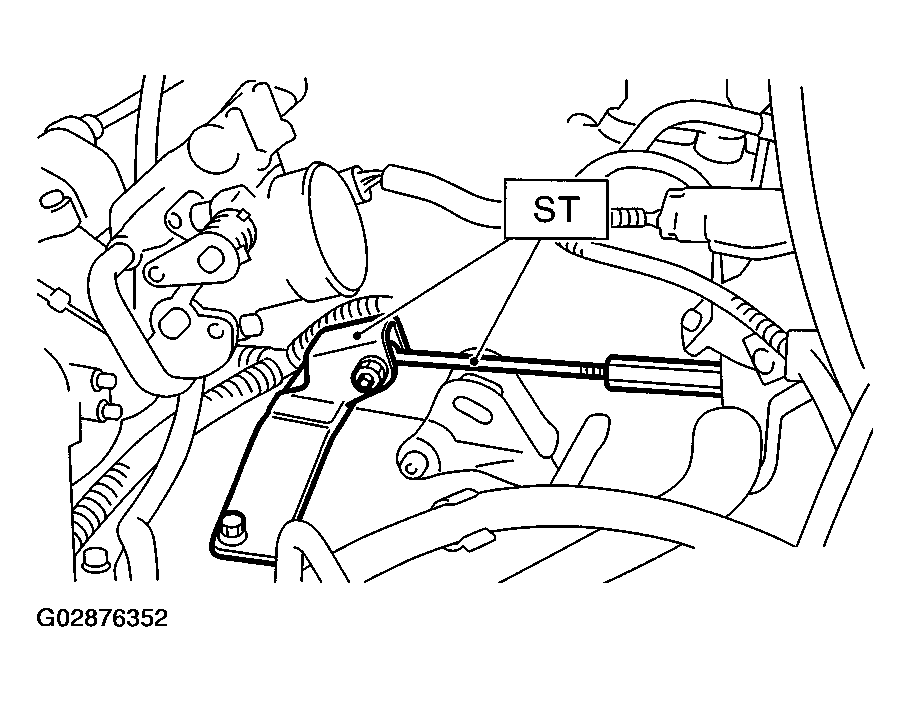

Fig 4: Removing ST
Courtesy of SUBARU OF AMERICA, INC.

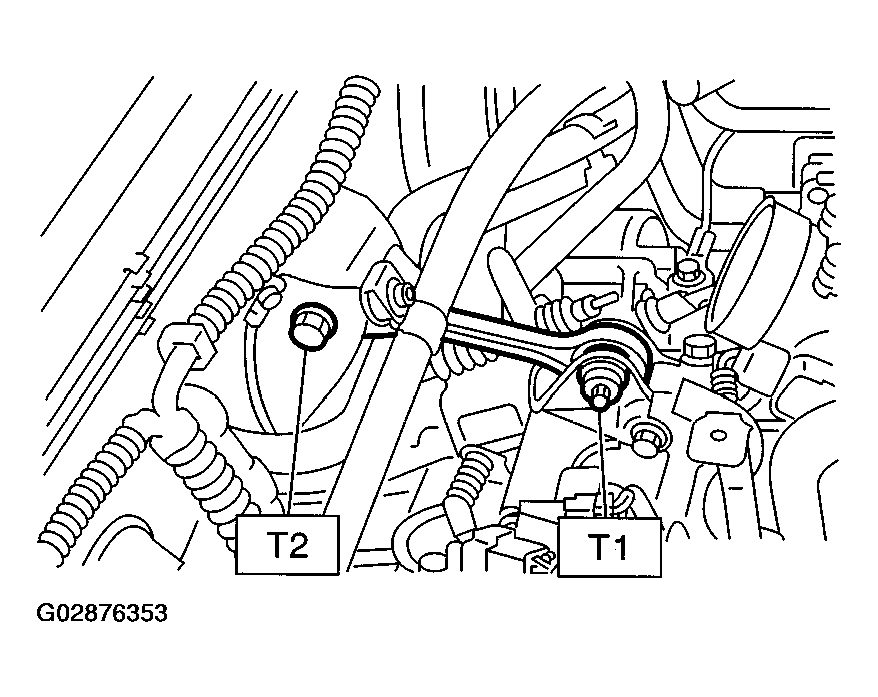

Install pitching stopper.
Tightening torque:
1. T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2: 58 N.m (5.9 kgf-m, 43 ft-lb)
Fig 5: Installing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install front drive shafts into transmission.

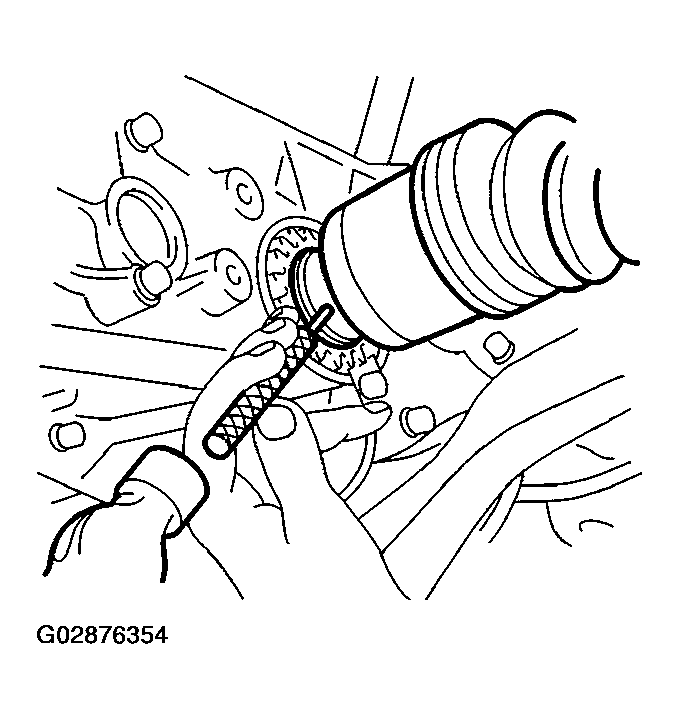

New drive spring pin into chamfered hole of drive shaft.

Fig 6: Installing Drive Spring Pin
Courtesy of SUBARU OF AMERICA, INC.

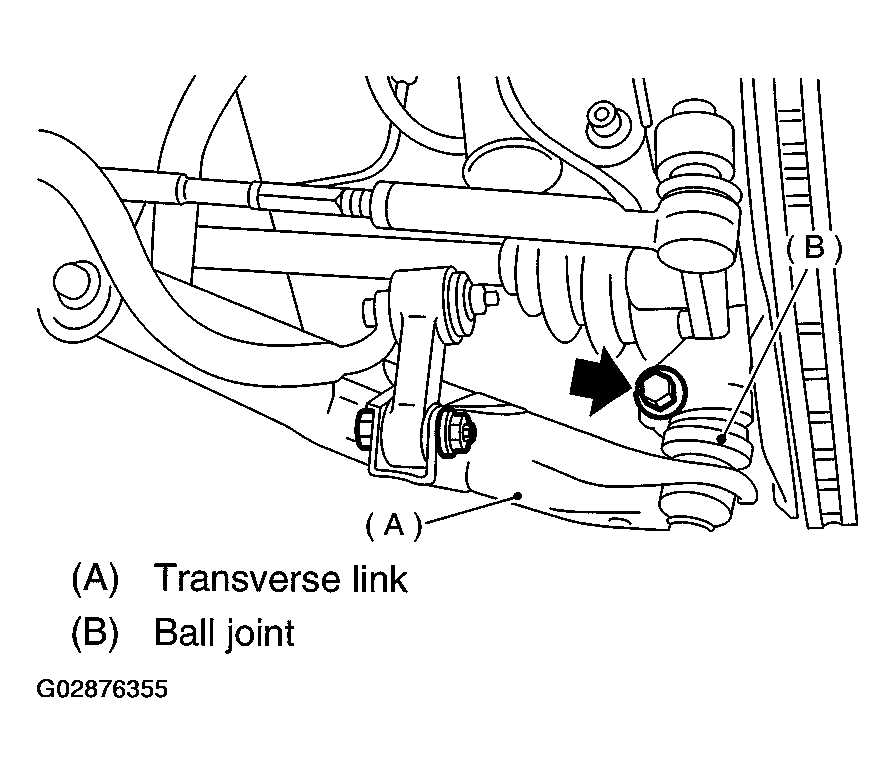

Install ball joints of lower arm into knuckle arm of housing, and tighten installing bolts.
1. Tightening torque: 50 N.m (5.1 kgf-m, 37 ft-lb)
Fig 7: Installing Ball Joints Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install stabilizer link from transverse link.
1. Tightening torque: 30 N.m (3.1 kgf-m, 22.1 ft-lb)

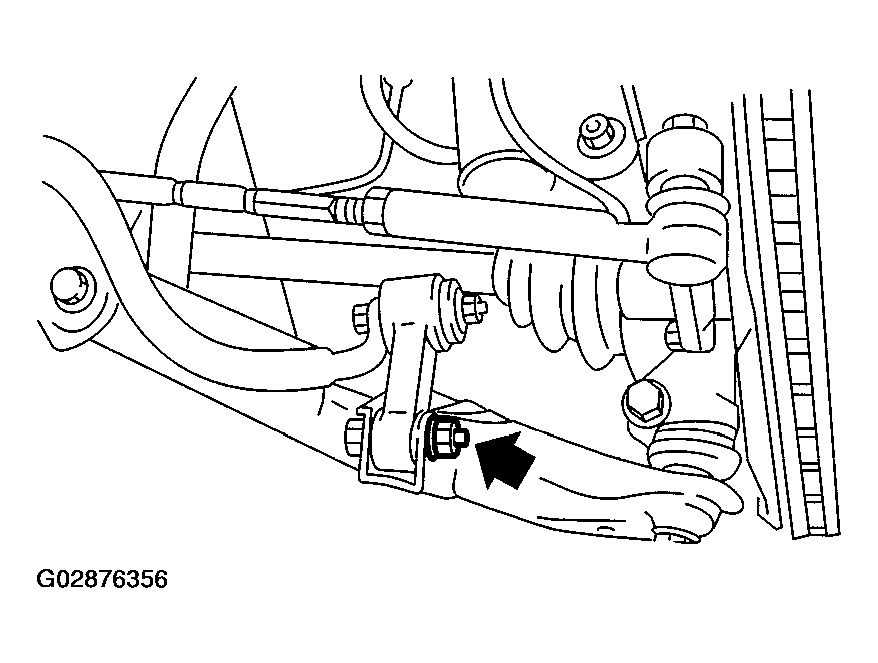

Fig 8: Installing Stabilizer Link Bolts
Courtesy of SUBARU OF AMERICA, INC.

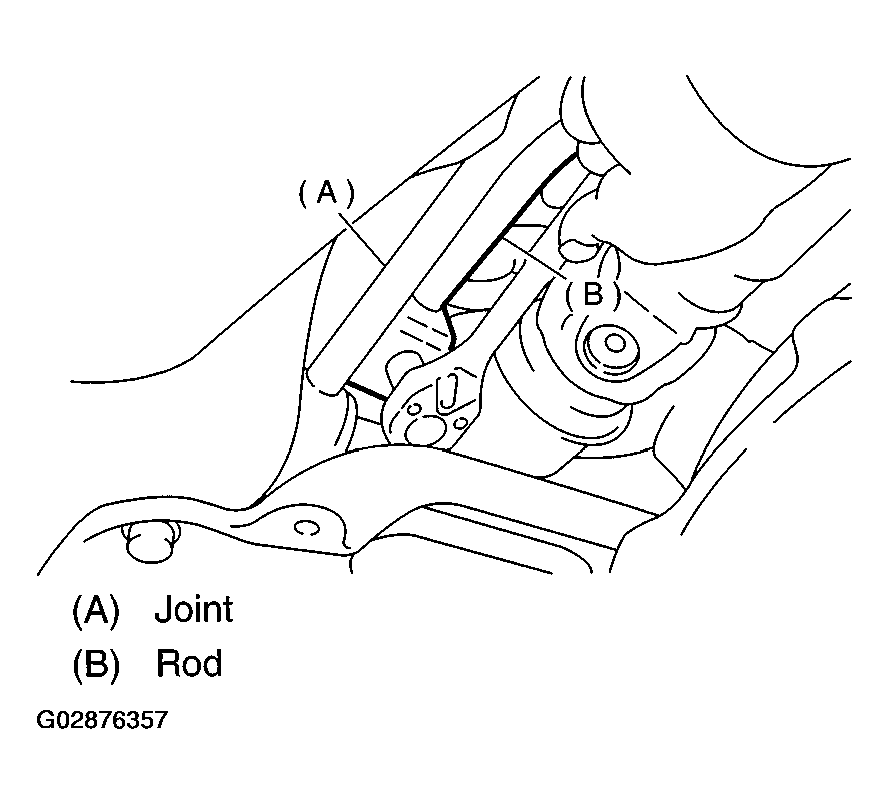

Connect rod to the joint.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
Fig 9: Connecting Rod To Joint
Courtesy of SUBARU OF AMERICA, INC.

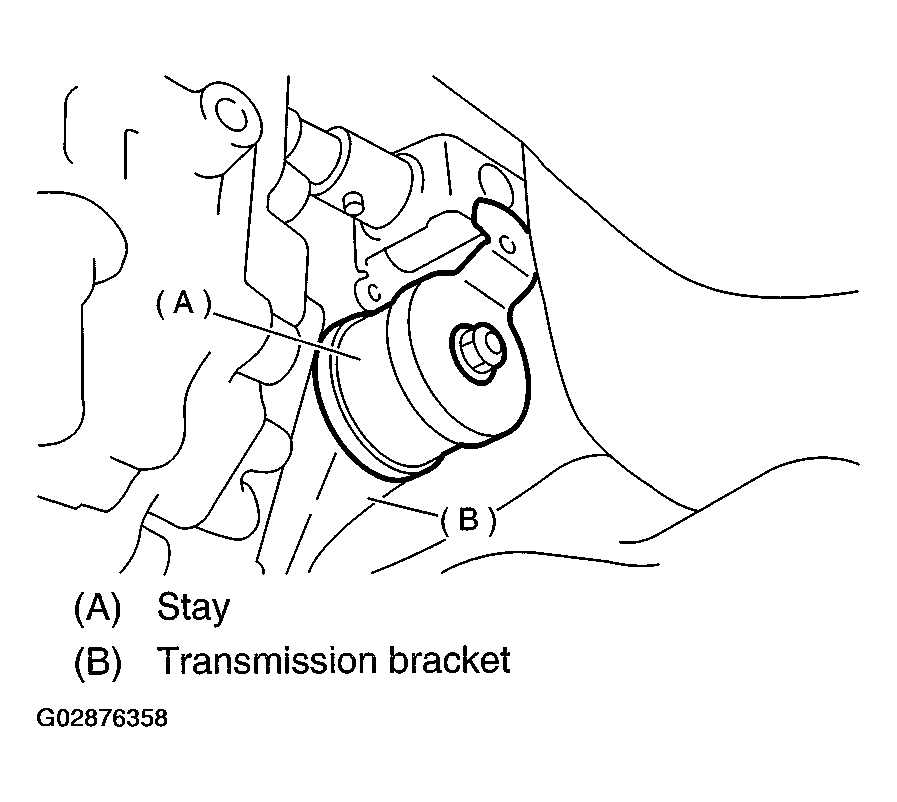

Connect stay to transmission bracket.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
Fig 10: Connecting Stay To Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install propeller shaft.
Install heat shield cover.

Fig 11: Installing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.

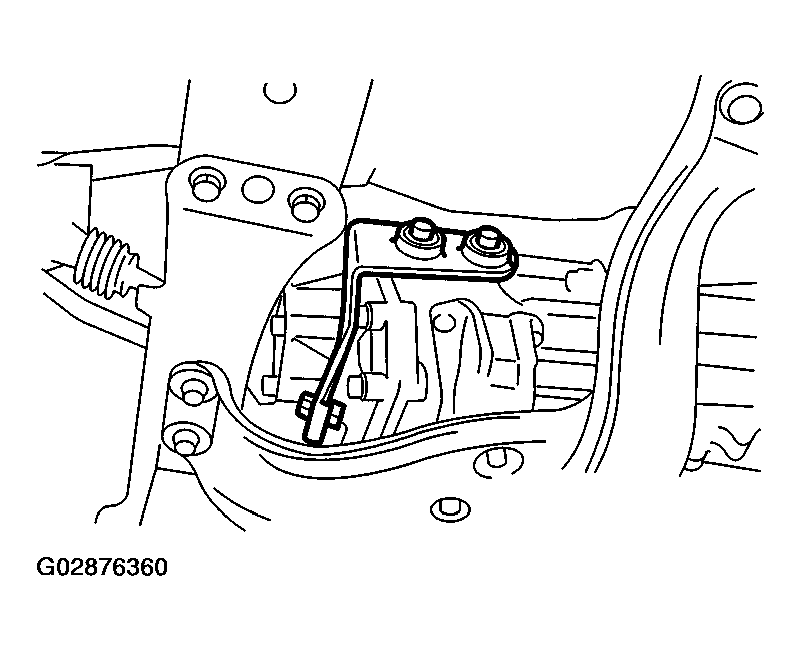

Install hanger bracket on right side of transmission.

Fig 12: Installing Hanger Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install front, center, rear, exhaust pipe and muffler.
< Ref. to INSTALLATION , Front Exhaust Pipe (H4SO)>, < Ref. to INSTALLATION , Rear Exhaust Pipe (H4SO)> and < Ref. to INSTALLATION , Muffler (H4SO).>
Install under cover.

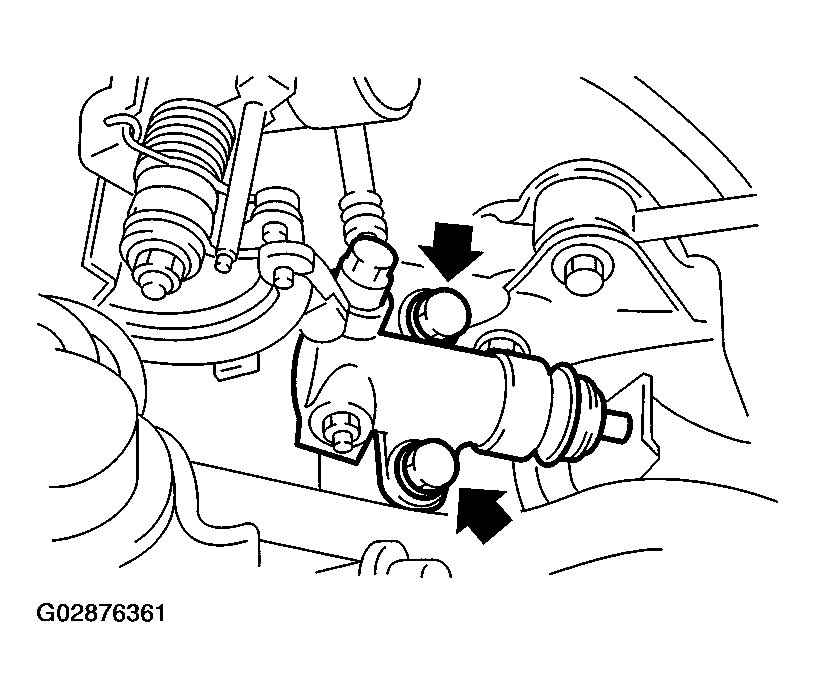

Install operating cylinder.
1. Tightening torque: 37 N.m (3.8 kgf-m, 27.5 ft-lb)
Fig 13: Installing Install Operating Cylinder Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the following connectors.
1. Transmission ground terminal
  1. Tightening torque: 13 N.m (1.3 kgf-m, 9.4 ft-lb)
2. Vehicle speed sensor connector
3. Neutral position switch connector
4. Back-up light switch connector
Install air cleaner case stay.
1. Tightening torque: 16 N.m (1.6 kgf-m, 11.6 ft-lb)
Install air cleaner case and air intake duct. < Ref. to INSTALLATION , Air Cleaner Case (H4SO)> and < Ref. to INSTALLATION , Air Intake Duct (H4SO).>
Connect battery ground cable.
Pour gear oil and check the oil level. < Ref. to TRANSMISSION GEAR OIL .>
Take off vehicle from lift arms.
