Main Shaft Assembly

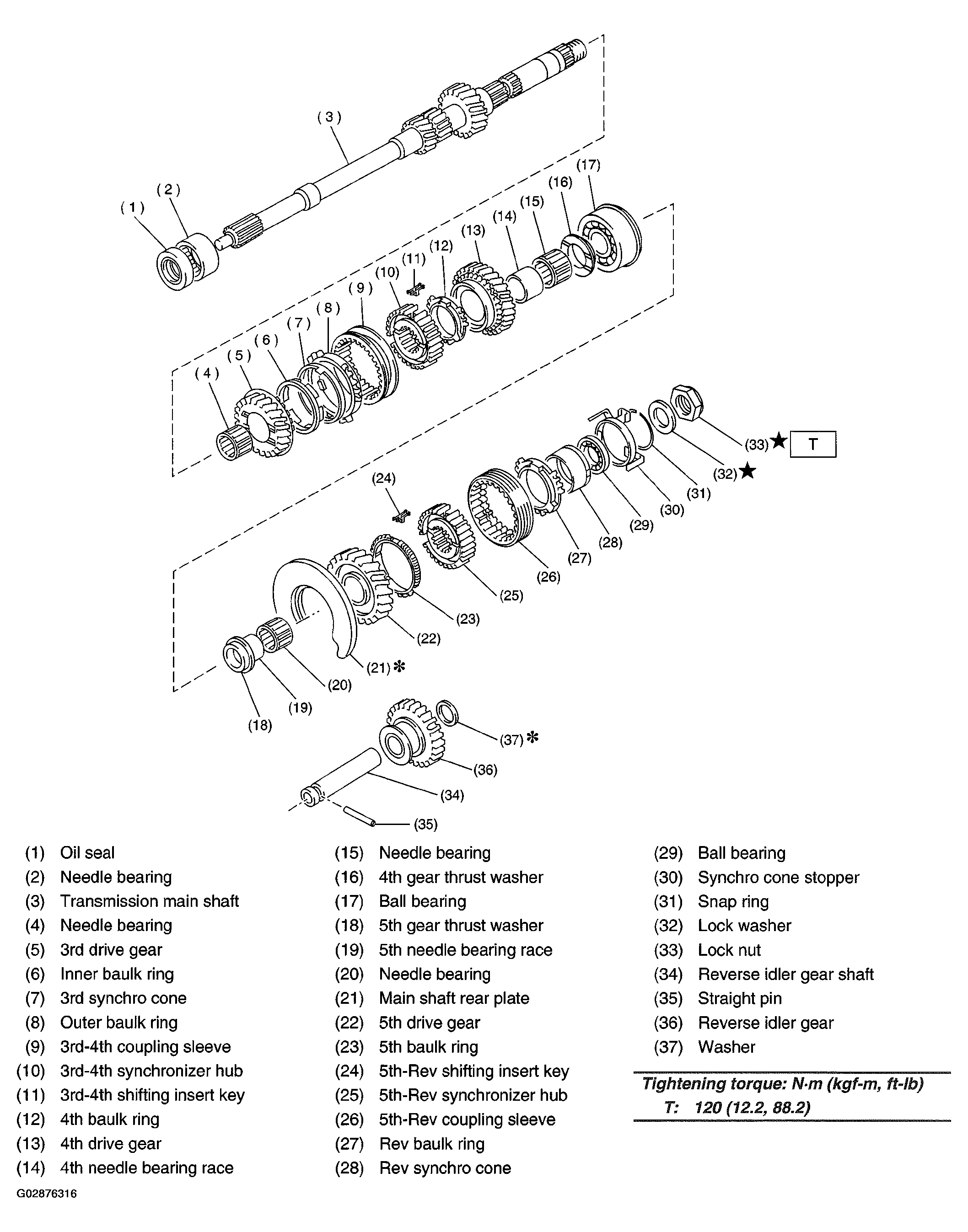

Fig 1: Main Shaft Assembly Replacement Components With Torque Specifications

G02876316

Courtesy of SUBARU OF AMERICA, INC.
