Side Retainer

  1. Install new oil seal.
    1. ST 49979700 INSTALLER

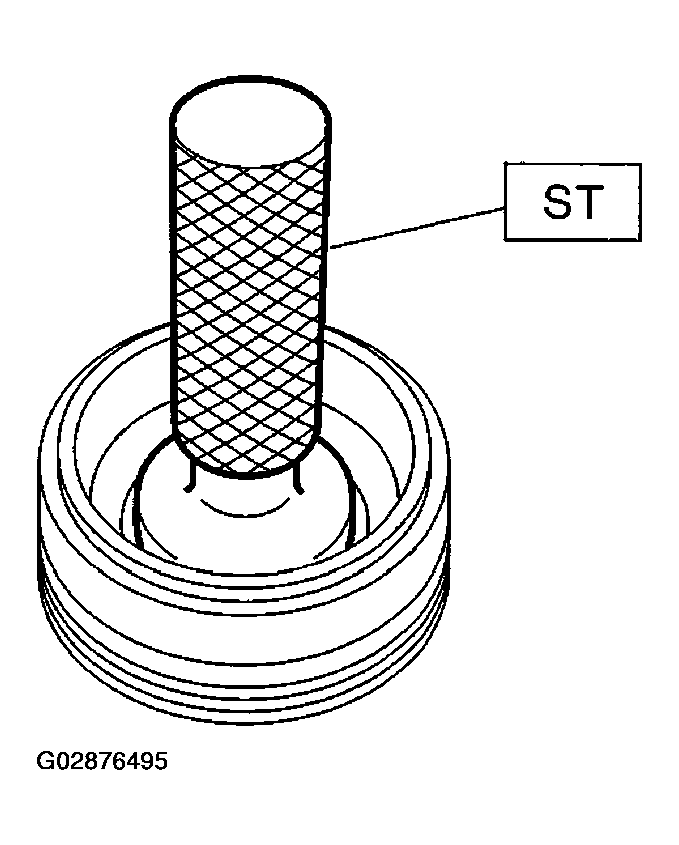

    Fig 1: Installing New Oil Seal
    G02876495Courtesy of SUBARU OF AMERICA, INC.
  2. Install new O-ring.
    NOTE: Do not stretch or damage O-ring.
    Fig 2: Identifying New O-Ring
    G02876496Courtesy of SUBARU OF AMERICA, INC.
