Lubrication (H4SO): General Description: Component

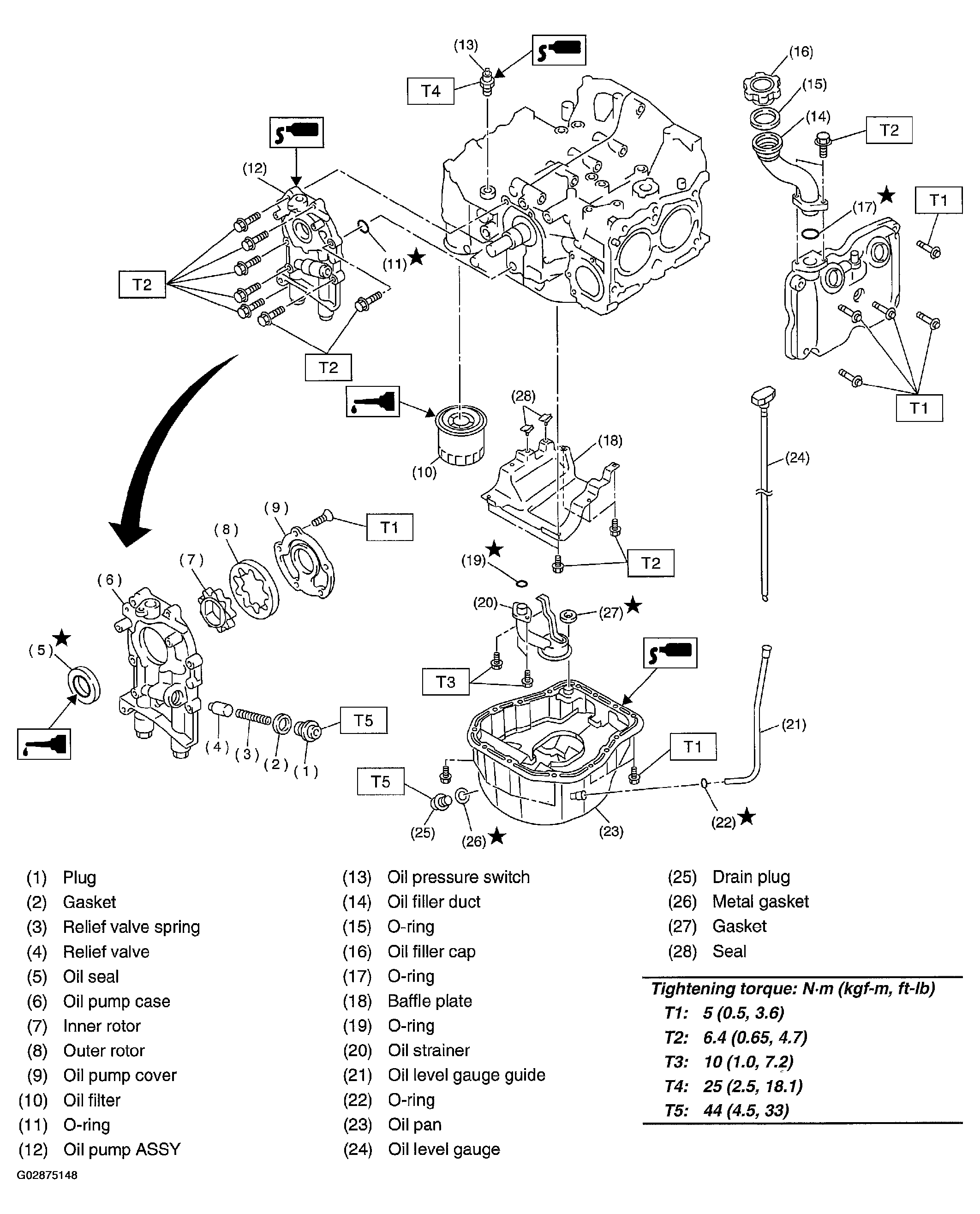

Fig 1: Exploded View Of Lubrication Components

G02875148

Courtesy of SUBARU OF AMERICA, INC.
