Fuel Filter: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Release fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.>
  2. Disconnect fuel delivery hoses from fuel filter.

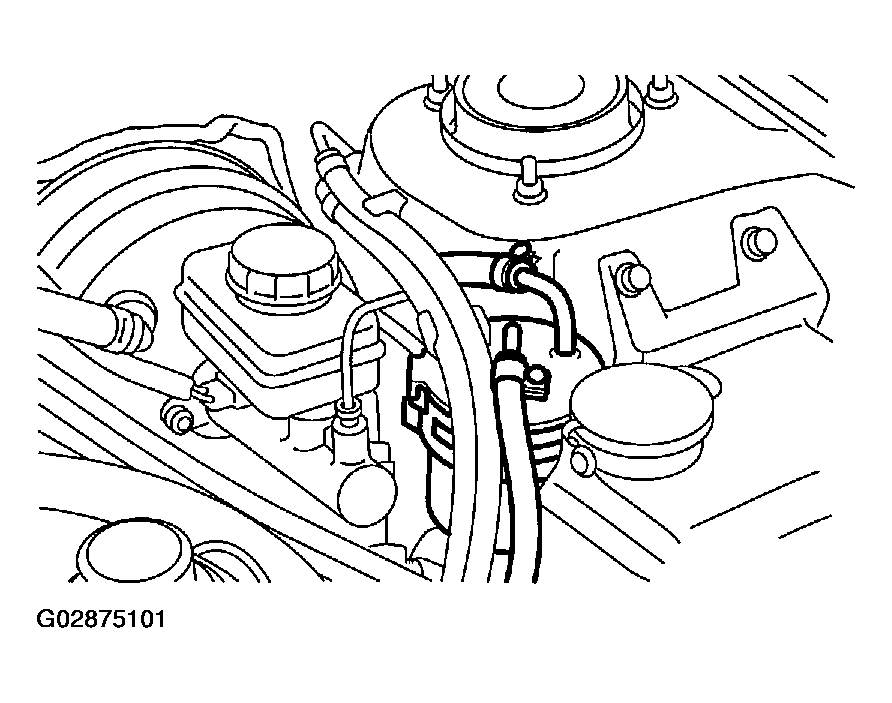

    Fig 1: Disconnecting Fuel Delivery Hoses From Fuel Filter
    G02875101Courtesy of SUBARU OF AMERICA, INC.
  3. Remove filter from holder.
