Instrumentation/Driver Info: Tachometer: Inspection

Measure tachometer resistance.

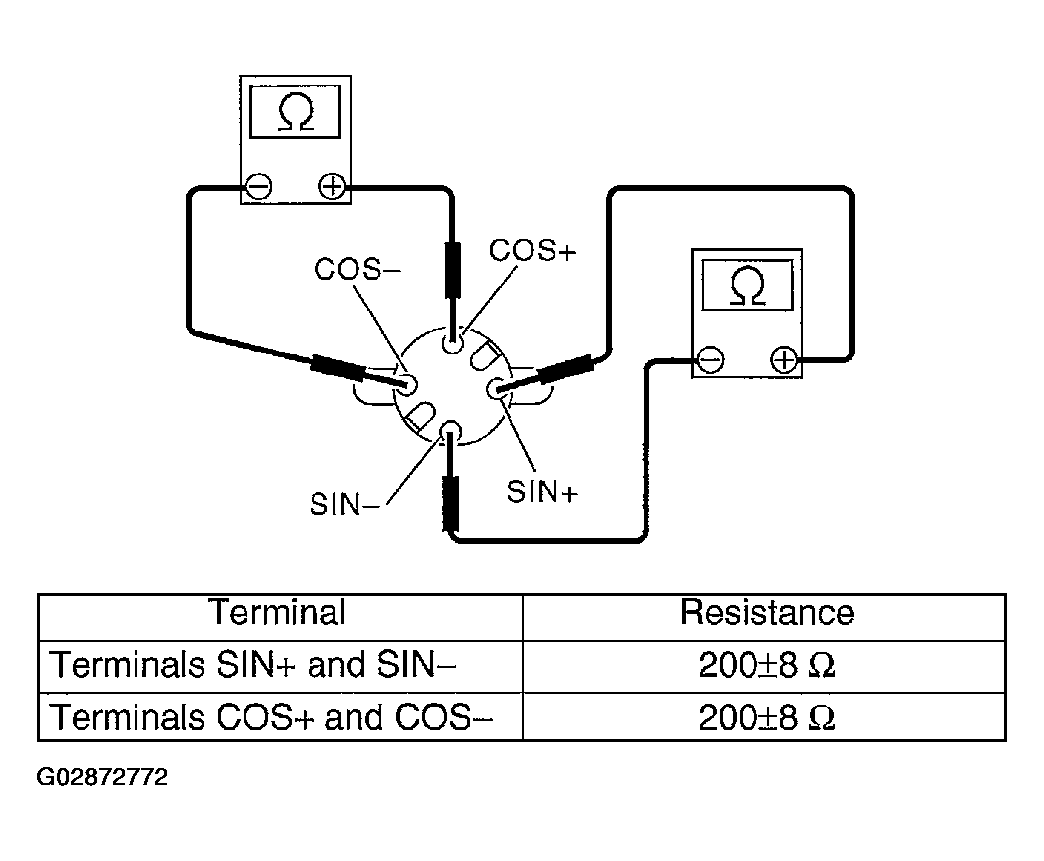

Fig 1: Measuring Tachometer Resistance

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace tachometer and water temperature gauge assembly.

If OK, replace combination meter printed circuit.
