Vehicle Speed Sensor (VSS)

  1. A/T -  The vehicle speed sensor is mounted on the transmission. The vehicle speed sensor generates a 16-pulse signal for every rotation of the front differential and sends it to the transmission control module (TCM). The signal sent to the TCM is converted there into a 4-pulse signal, and then sent to the ECM and the combination meter.
  2. M/T -  The vehicle speed sensor is mounted on the transmission. The vehicle speed sensor generates a 4-pulse signal for every rotation of the front differential and sends it to the ECM and the combination meter.

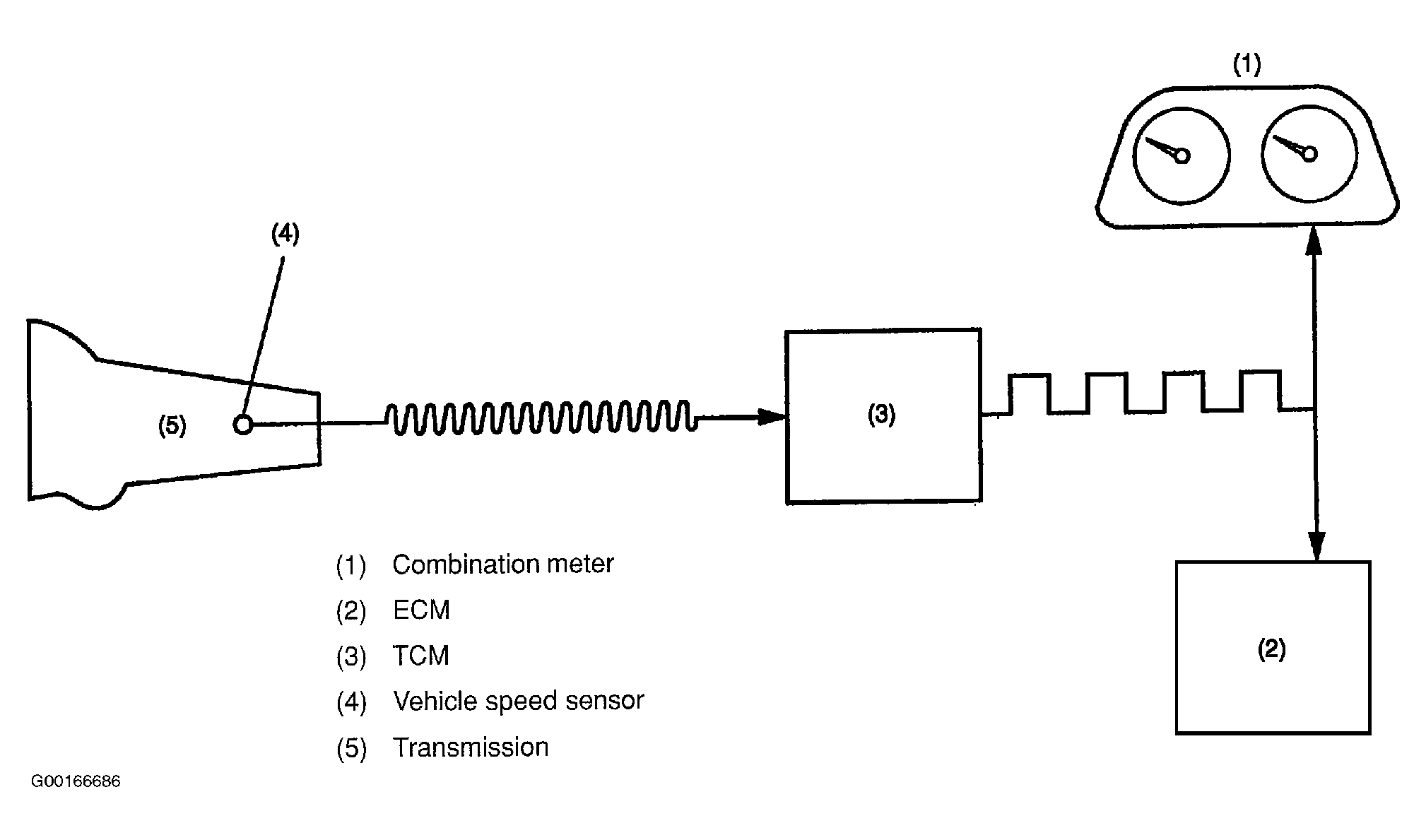

Fig 1: Identifying Vehicle Speed Sensor - A/T
G00166686Courtesy of SUBARU OF AMERICA, INC.

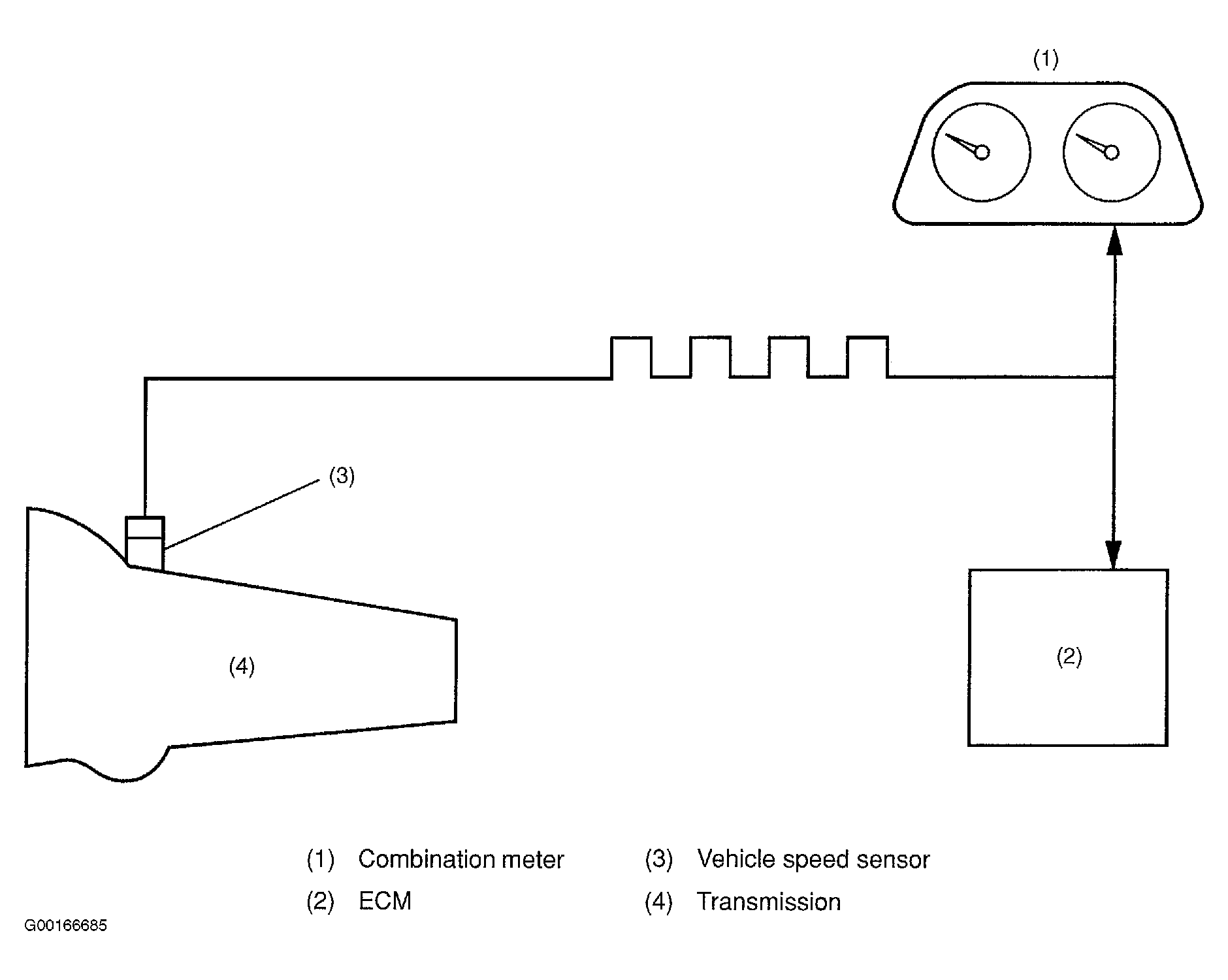

Fig 2: Identifying Vehicle Speed Sensor - M/T
G00166685Courtesy of SUBARU OF AMERICA, INC.
