Home >> Subaru >> 2003 >> Baja Standard >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Security & Locks (All Models) >> Keyless Entry System >> Inspection >> Check Output Signal To Integrated Module

Check Output Signal To Integrated Module

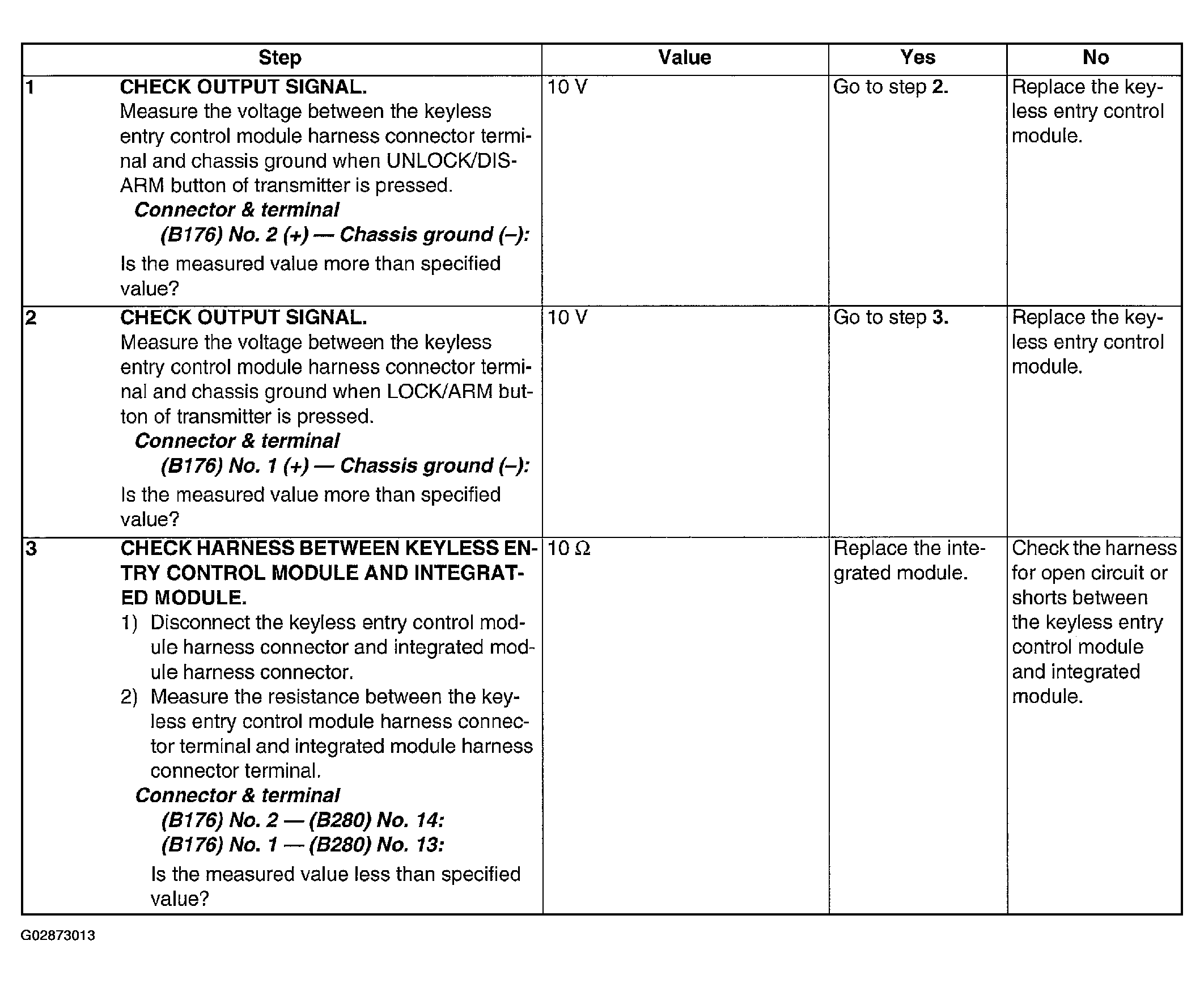

Fig 1: Checking Output Signal To Integrated Module Chart

G02873013

Courtesy of SUBARU OF AMERICA, INC.
