Wheel Alignment

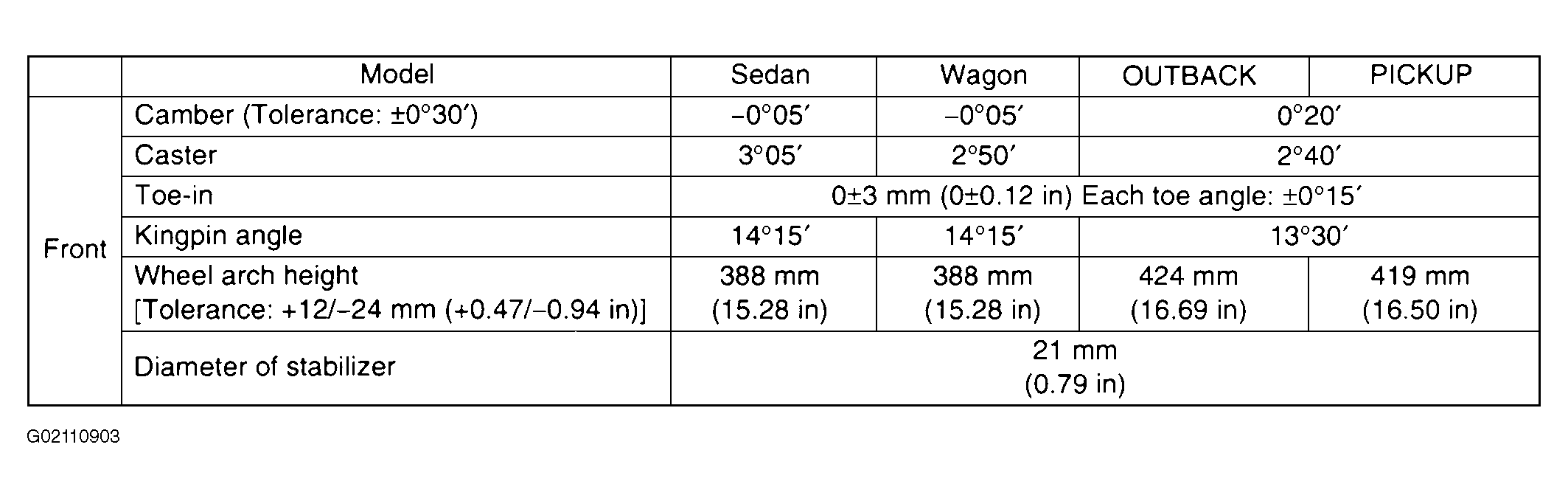

Fig 1: Front Wheel Alignment Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

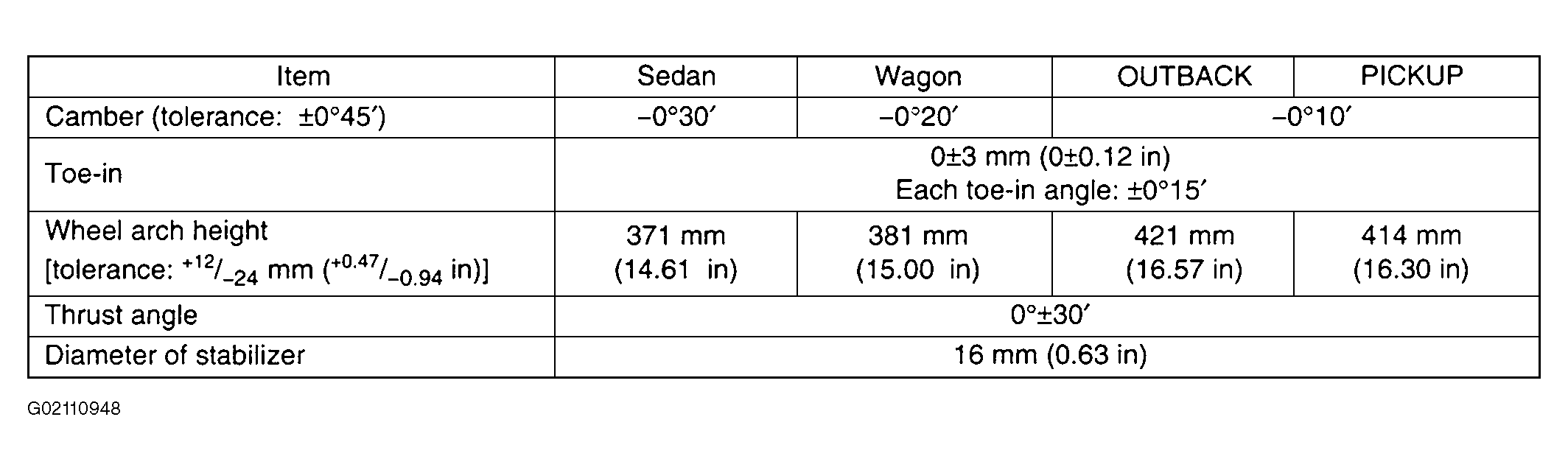

Fig 2: Rear Wheel Alignment Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Front and rear toe-ins and front camber can be adjusted. If toe-in or camber tolerance exceeds specifications, adjust toe-in and camber to the middle value of specification.
The other items indicated in the specification table cannot be adjusted. If the other items exceeds specifications, check suspension parts and connections for deformities; replace with new ones as required.

Fig 3: Identifying Toe-In Angle

Courtesy of SUBARU OF AMERICA, INC.
