Home >> Subaru >> 2002 >> Outback VDC, 4D Sedan >> Repair and Diagnosis >> Steering >> Power Assisted System (Power Steering) >> General Diagnostic Table >> Inspection >> Notes

General Diagnostic Table: Inspection: Notes

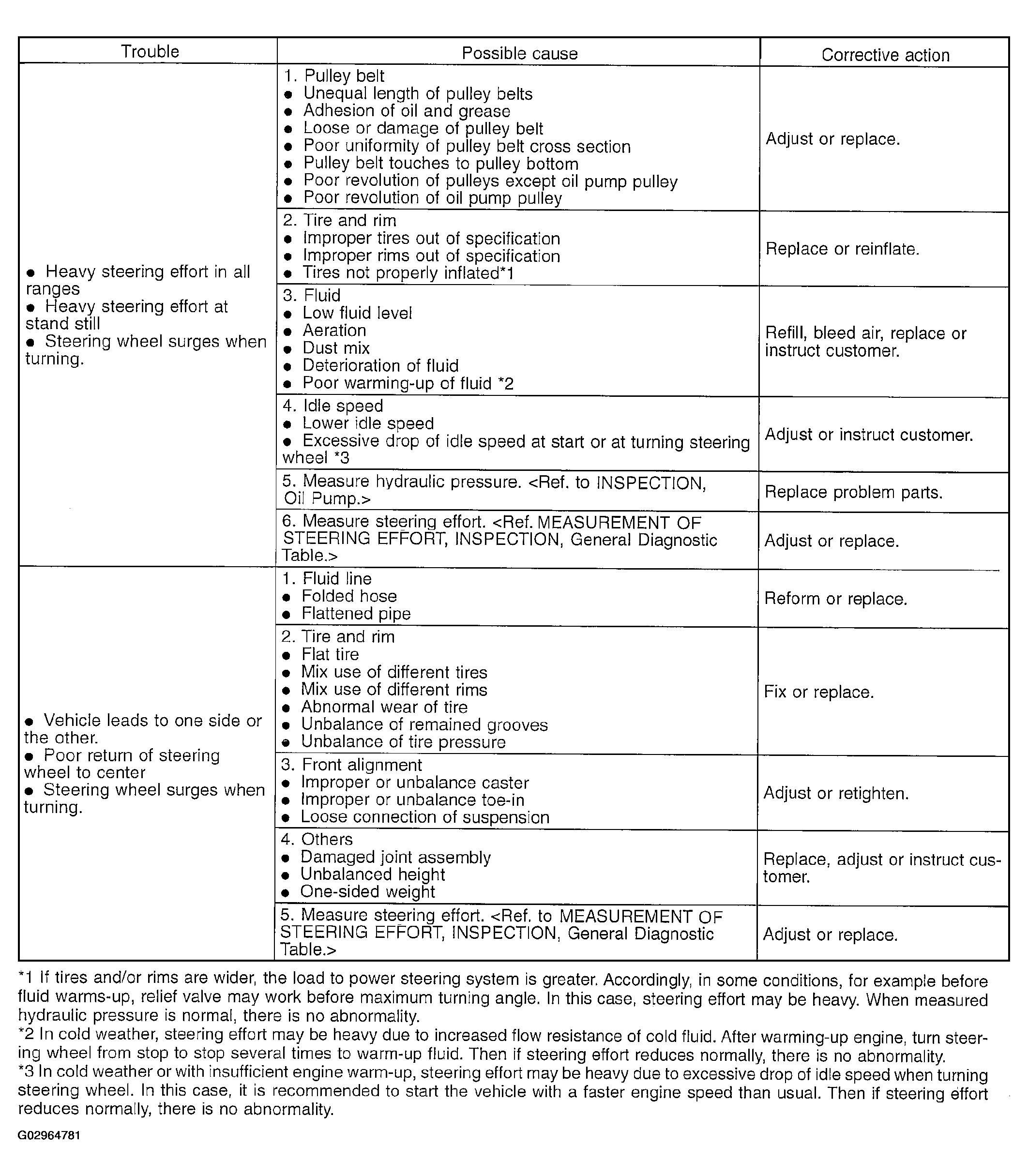

Fig 1: General Diagnostic Inspection Chart

G02964781

Courtesy of SUBARU OF AMERICA, INC.
