Master Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Install master cylinder to body, and install clutch pipe to master cylinder.
NOTE: Check that pipe is routed properly.
1. Tightening torque:
2. T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
3. T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

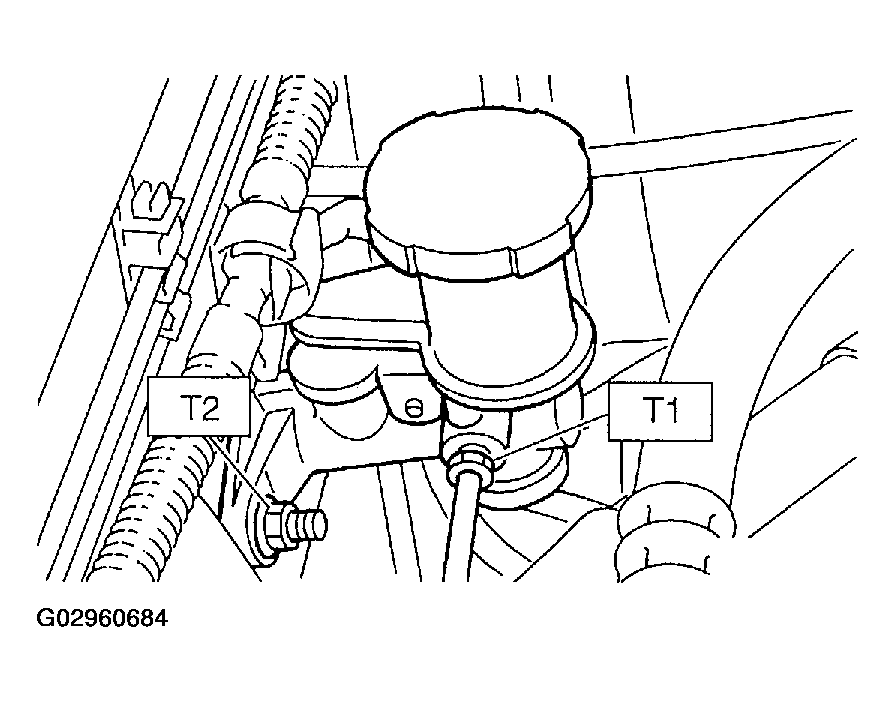

Fig 1: Installing Clutch Pipe To Master Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Connect push rod of master cylinder to clutch pedal, and install new clevis pin and snap pin.
NOTE: Apply grease to clevis pin.

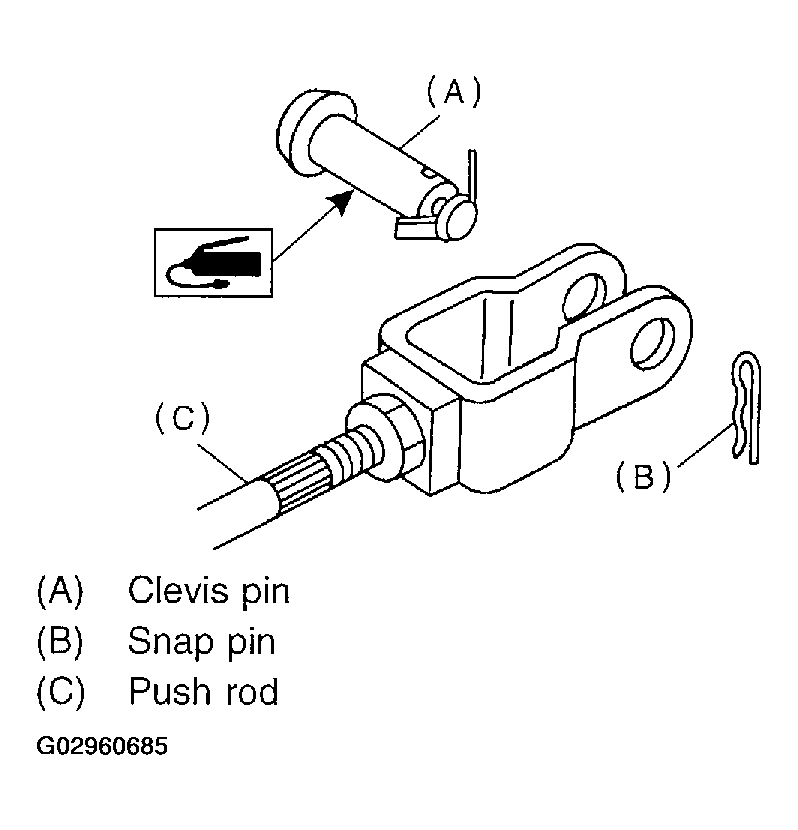

Fig 2: Connecting Push Rod Of Master Cylinder To Clutch Pedal & Installing Clevis Pin & Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from system, ensure that clutch operates properly.
1. Refer to CLUTCH FLUID AIR BLEEDING .
Install air cleaner case. Refer to INSTALLATION , Air Cleaner Case.
