Master Cylinder: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.
    1. Grease:
    2. SILICONE GREASE G40M (Part No. 004404003)

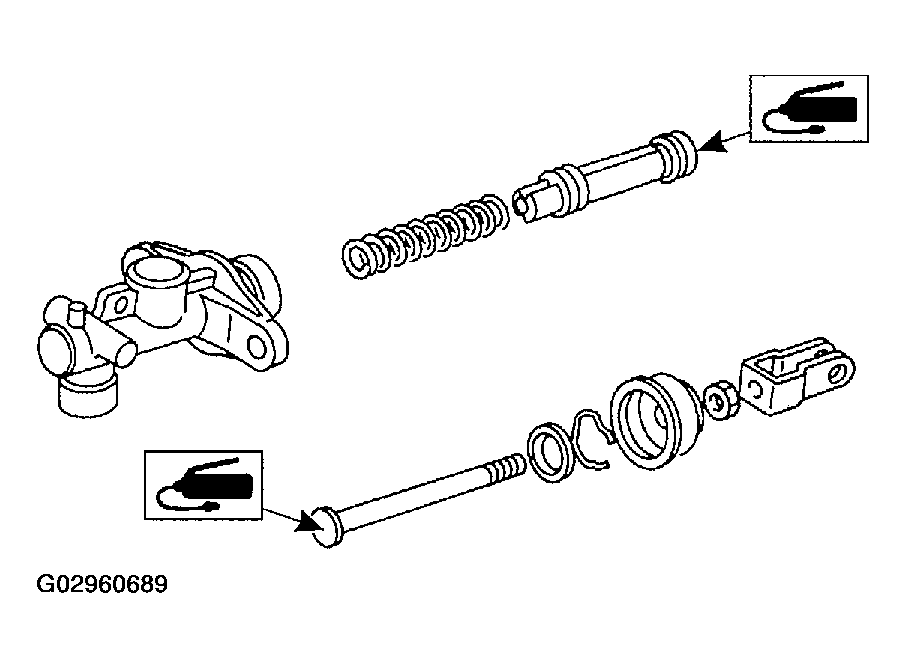

    Fig 1: Identifying Components Of Master Cylinder Assembly
    G02960689Courtesy of SUBARU OF AMERICA, INC.
  2. To assemble the master cylinder reverse the sequence of disassembly procedure.
