Section 9 (Clutch System): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove transmission assembly. Refer to REMOVAL , Manual Transmission Assembly.
  2. Install ST on flywheel.
    1. ST 498497100 CRANKSHAFT STOPPER

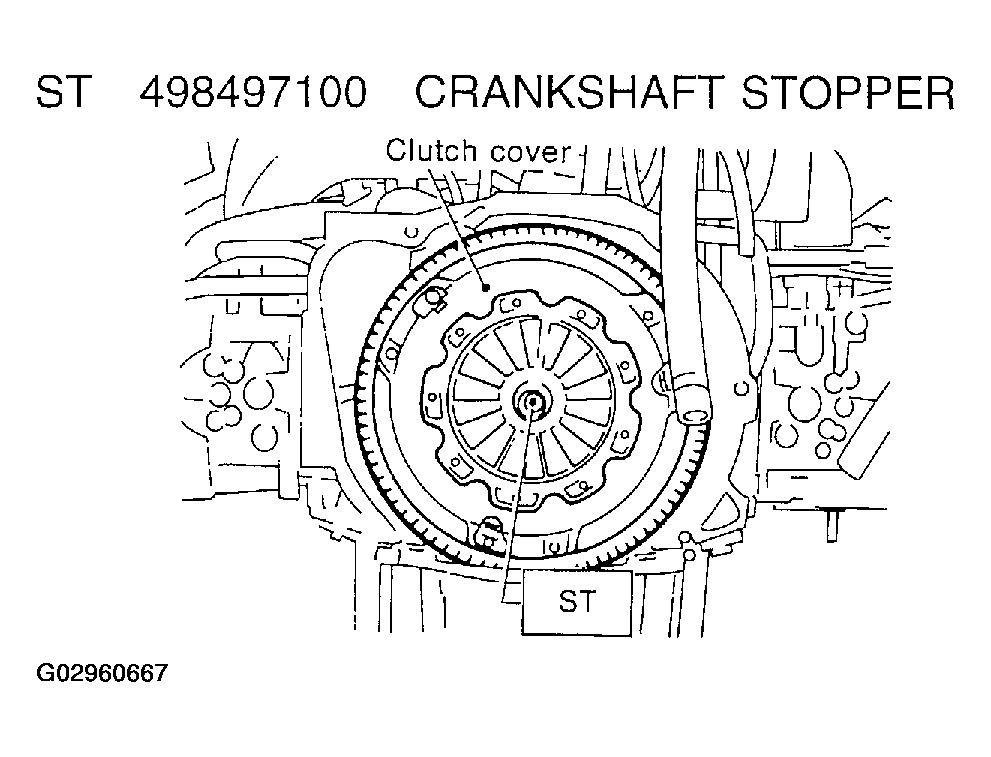

    Fig 1: Installing ST Crankshaft Stopper Flywheel
    G02960667Courtesy of SUBARU OF AMERICA, INC.
  3. Remove clutch cover and clutch disc. Refer to REMOVAL , Clutch Disc and Cover.
    NOTE:
    • Take care not to allow oil on the clutch disc facing.
    • Do not disassemble either clutch cover and clutch disc.
  4. Using ST, remove flywheel.
    1. ST 498497100 CRANKSHAFT STOPPER

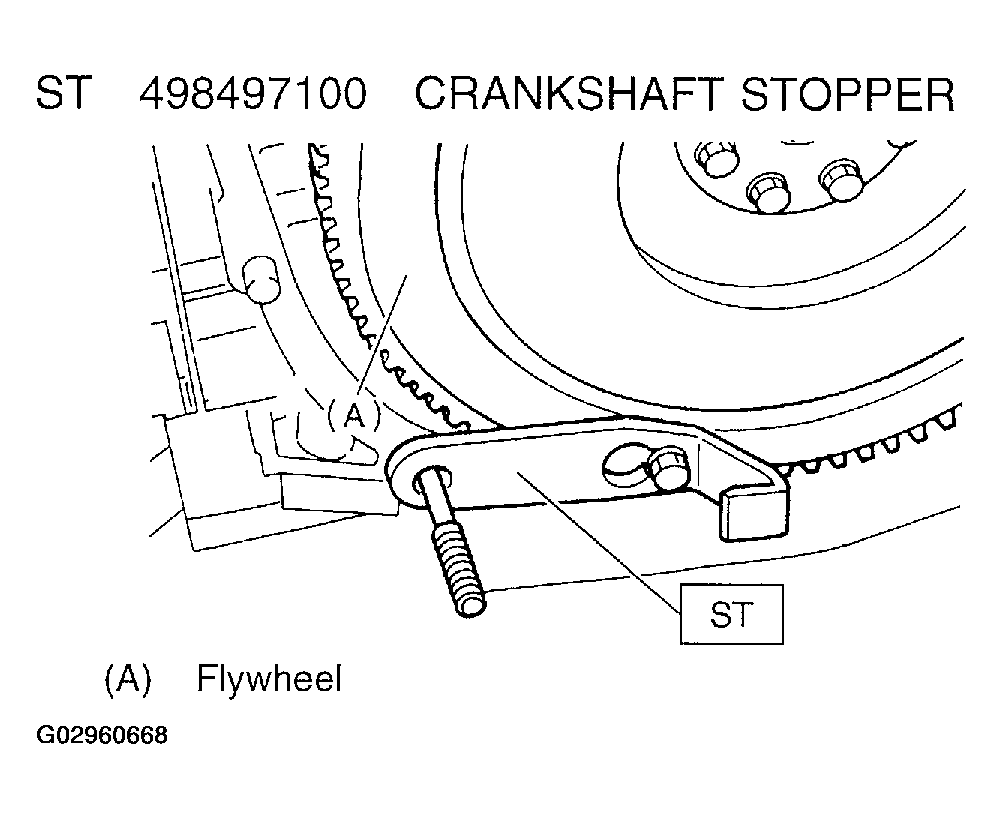

Fig 2: Removing Flywheel
G02960668Courtesy of SUBARU OF AMERICA, INC.
