Clutch Switch: Inspection

WARNING: This page is about a different variant/trim than selected.

If clutch switch does not operate properly (or if it does not stop at the specified position), replace with a new one.
Specified position: L
1. 2 ^+1.5 / ₀ mm (0.079 ⁺⁰⁰⁵⁹ / _o in)

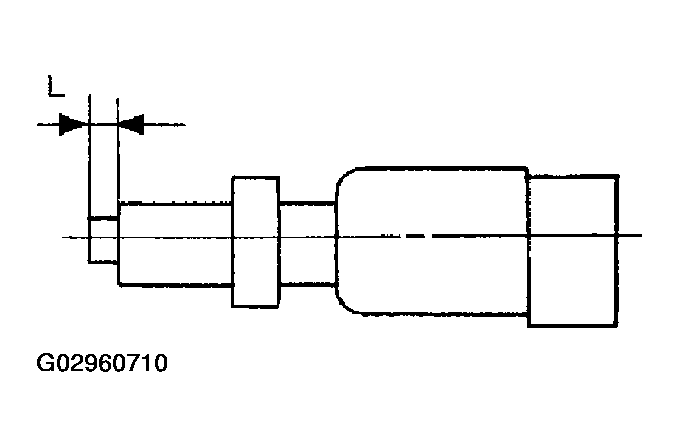

Fig 1: Checking Clutch Switch For Specified Position
Courtesy of SUBARU OF AMERICA, INC.
Check clutch switch continuity. If continuity is not as specified, replace the switch.
1. Disconnect the clutch switch connector.
2. Measure the resistance between 1 and 2 of switch terminal.
  1. Terminals/Specified resistance When clutch pedal depressed: 1 - 2/Less than 1Ω
  2. Terminals/Specified resistance When clutch pedal not depressed: 1 - 2/More than 1MΩ
  - Clutch switch (Starter interlock)

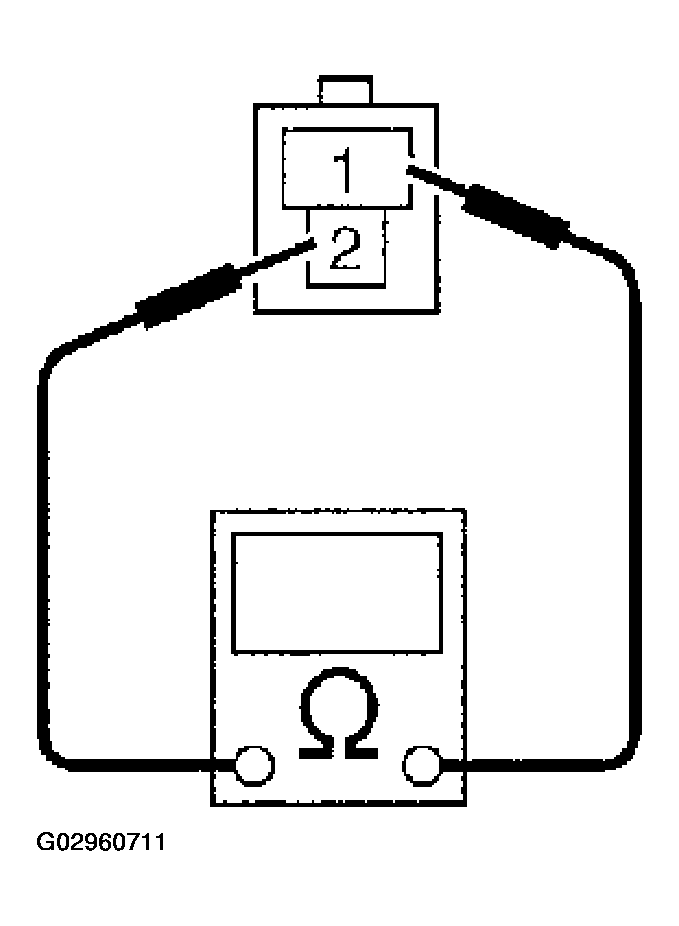

    Fig 2: Measuring Resistance Between 1 & 2 Of Clutch Switch Terminal - Starter Interlock
    Courtesy of SUBARU OF AMERICA, INC.
  - Clutch switch (With cruise control)

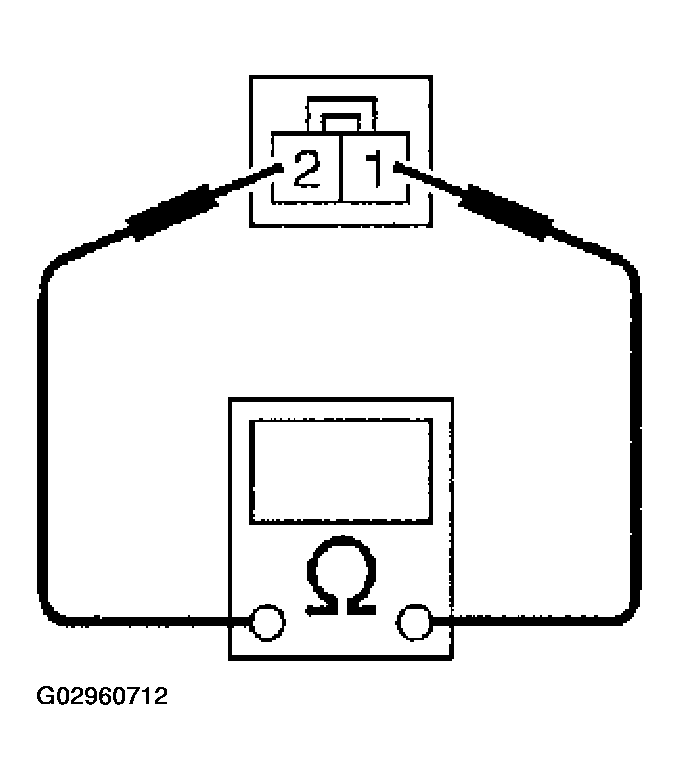

  Fig 3: Measuring Resistance Between 1 & 2 Of Clutch Switch Terminal - With Cruise Control
  Courtesy of SUBARU OF AMERICA, INC.
