Intake Manifold: Removal

  1. Release fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE  , OPERATION, FUEL. >
  2. Open fuel flap lid, and remove fuel filler cap.

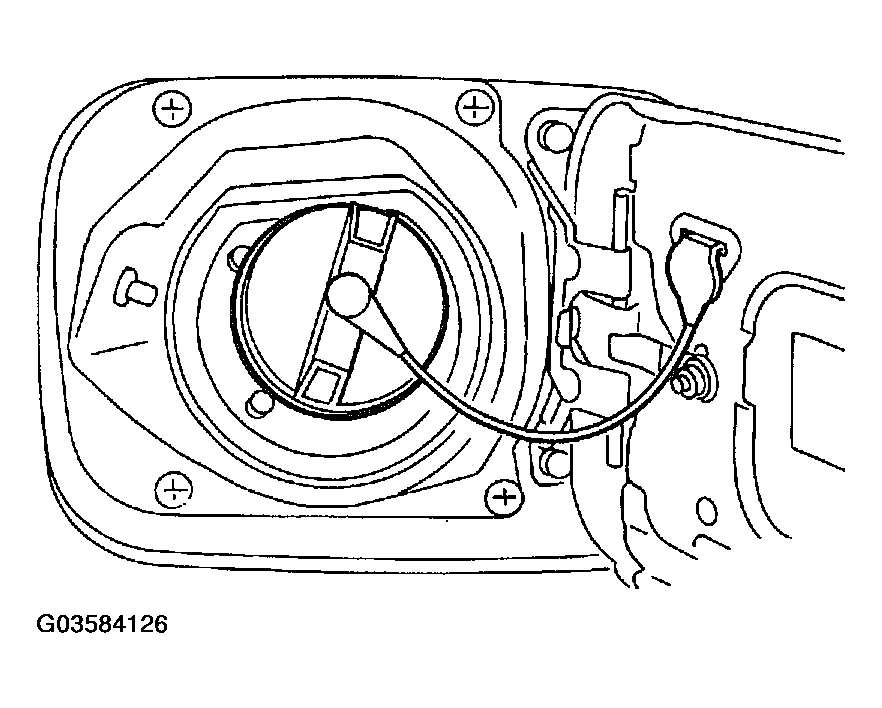

    Fig 1: Removing Fuel Filler Cap
    G03584126Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect battery ground cable.

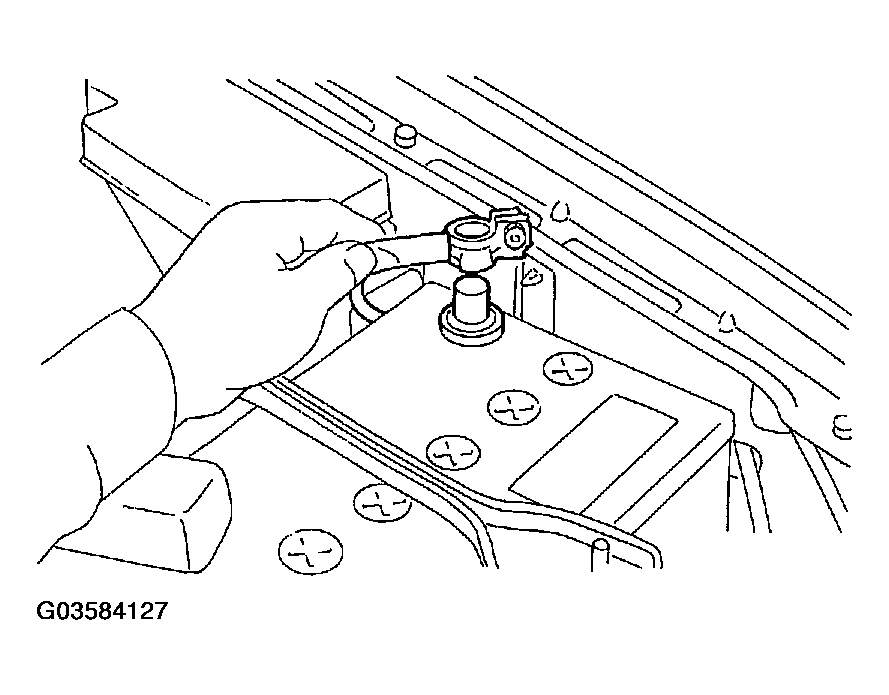

    Fig 2: Disconnecting Battery Ground Cable
    G03584127Courtesy of SUBARU OF AMERICA, INC.
  4. Remove air intake duct, air cleaner assembly and air intake chamber. < Ref. to REMOVAL , Air Intake Duct. > and < Ref. to REMOVAL , Air Cleaner. > and < Ref. to REMOVAL , Air Intake Chamber. >
  5. Disconnect accelerator cable (A).
  6. Disconnect cruise control cable (B). (With cruise control model)

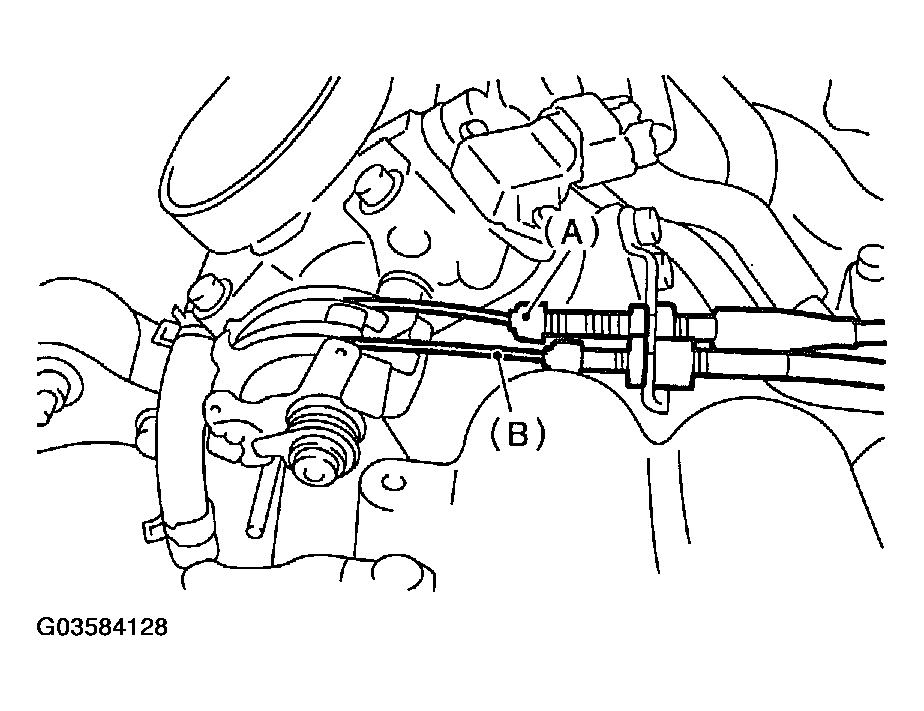

    Fig 3: Disconnecting Accelerator Cable Cruise Control Cable
    G03584128Courtesy of SUBARU OF AMERICA, INC.
  7. Remove power steering pump and tank from brackets.
    1. Remove V-belt.

      < Ref. to REMOVAL , V-belt. >

    2. Remove power steering oil pipe with bracket.

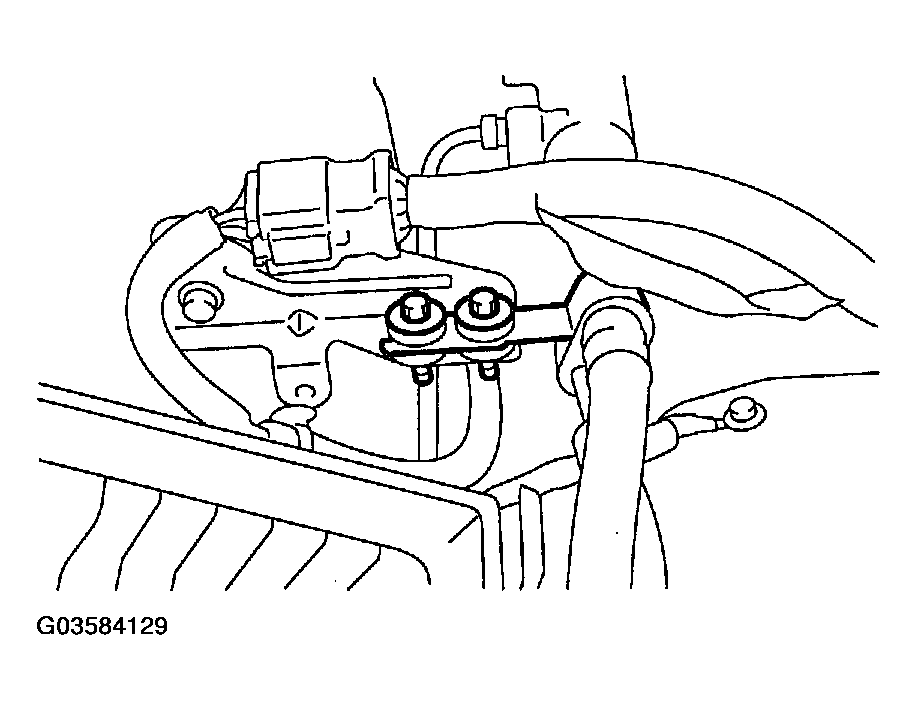

      Fig 4: Removing Power Steering Oil Pipe With Bracket
      G03584129Courtesy of SUBARU OF AMERICA, INC.
    3. Remove bolts which install power steering pump bracket.
      NOTE: Do not separate hose and pipe from the main pump.

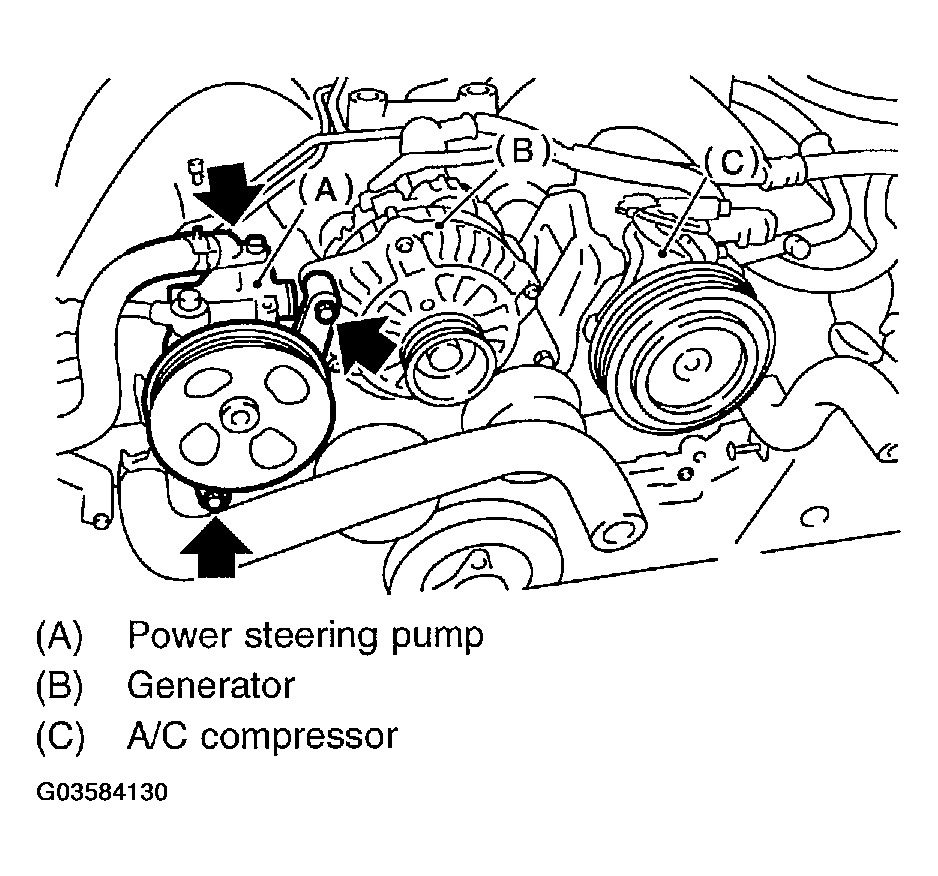

      Fig 5: Removing Bolts
      G03584130Courtesy of SUBARU OF AMERICA, INC.
    4. Disconnect power steering pump switch connector.

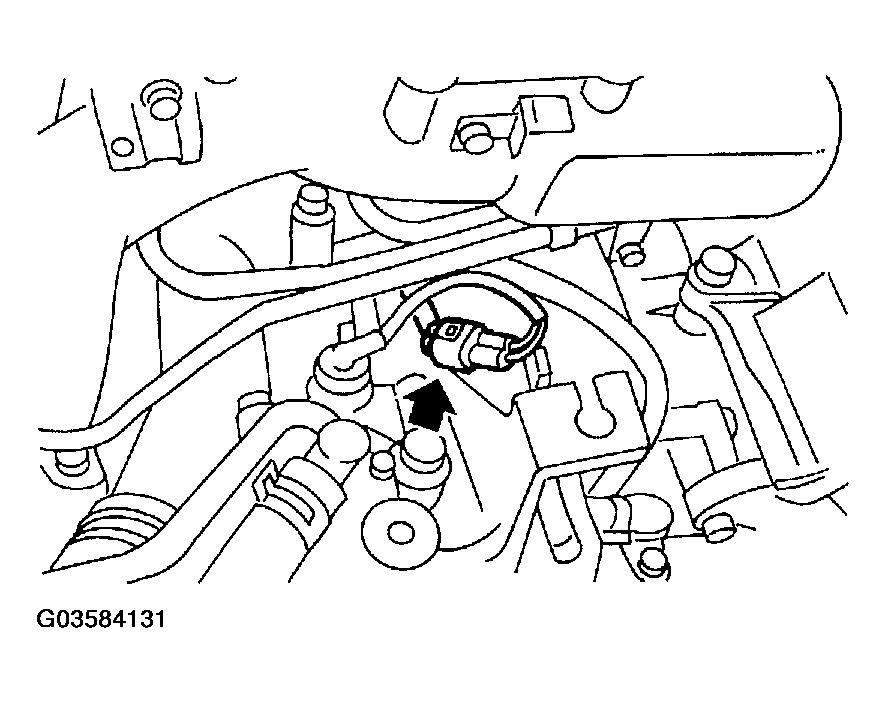

      Fig 6: Disconnecting Power Steering Pump Switch Connector
      G03584131Courtesy of SUBARU OF AMERICA, INC.
    5. Remove power steering tank from the bracket by pulling it upward.

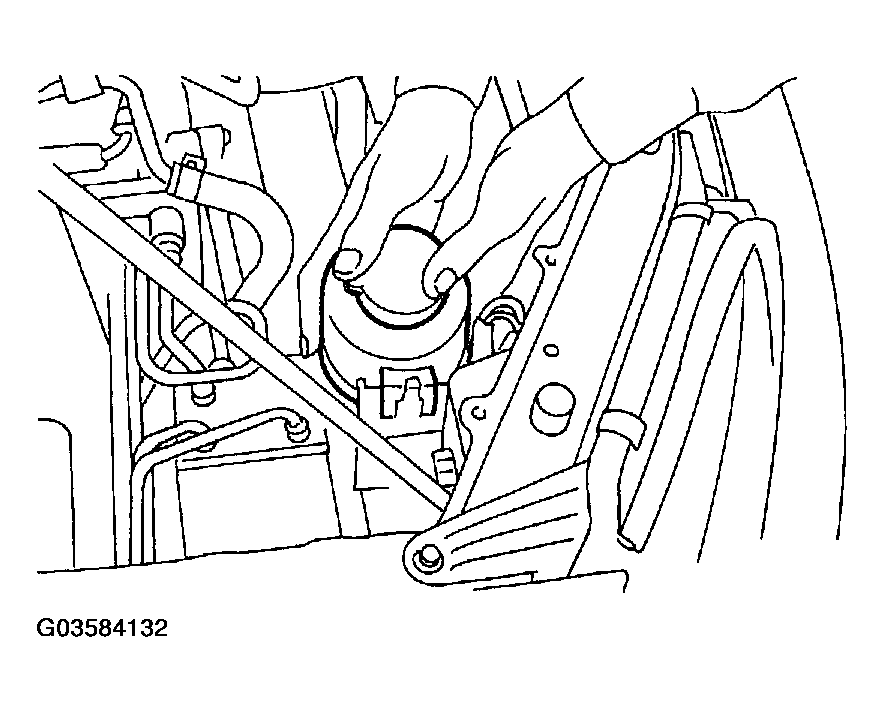

      Fig 7: Removing Power Steering Tank From Bracket
      G03584132Courtesy of SUBARU OF AMERICA, INC.
    6. Place power steering pump on the right side wheel apron.

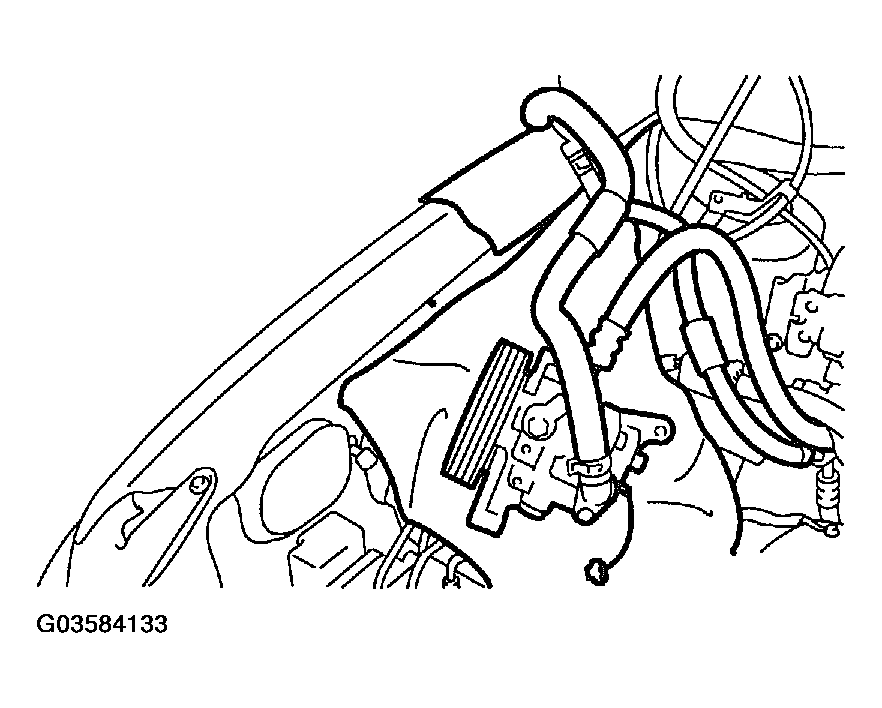

      Fig 8: Placing Power Steering Pump On Right Side Wheel Apron
      G03584133Courtesy of SUBARU OF AMERICA, INC.
  8. Remove two bolts which install washer tank on body.

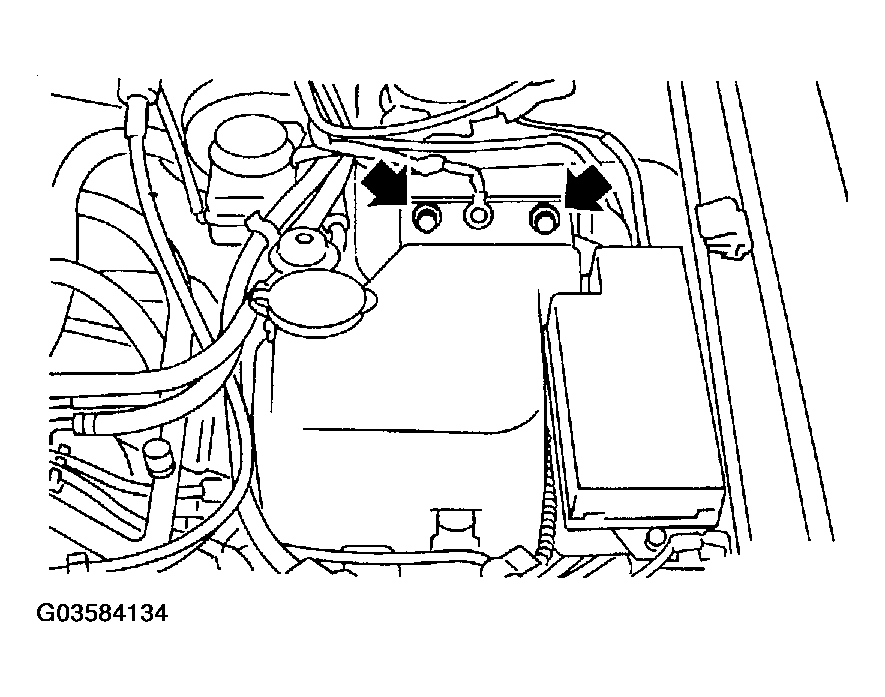

    Fig 9: Removing Washer Tank Bolts
    G03584134Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect connector from front window washer motor.
  10. Disconnect connector from rear gate glass washer motor.

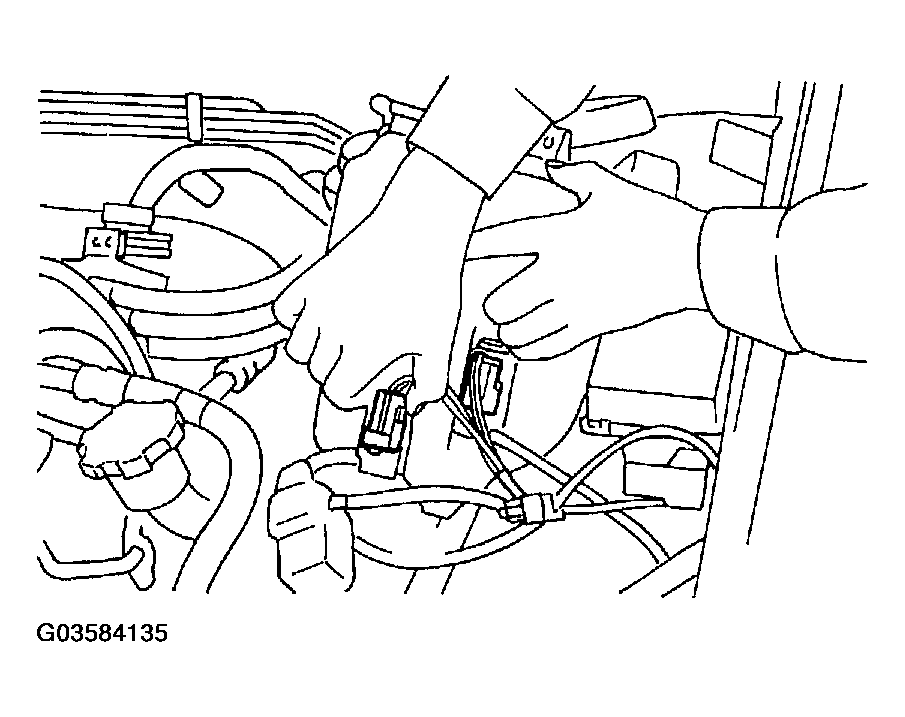

    Fig 10: Disconnecting Connector From Rear Gate Glass Washer Motor
    G03584135Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
  12. Move washer tank upward.

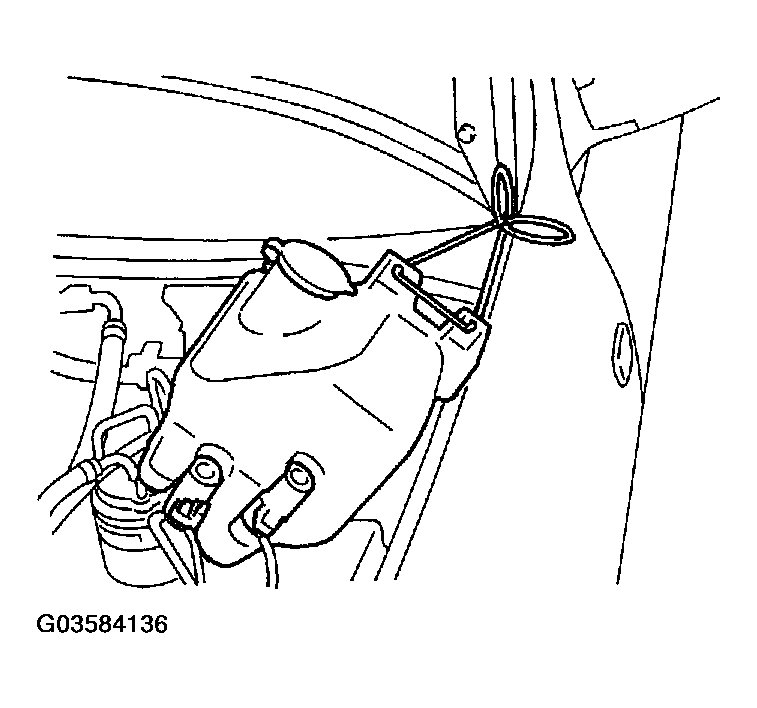

    Fig 11: Disconnecting Rear Window Glass Washer Hose
    G03584136Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect PCV hoses from cylinder head cover.

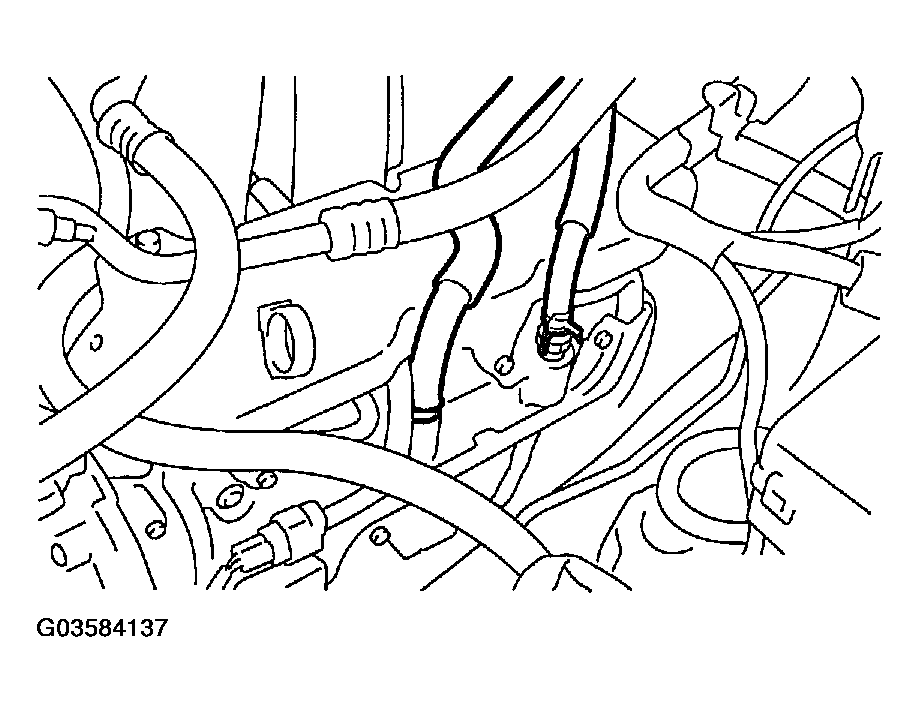

    Fig 12: Disconnecting PCV Hoses From Cylinder Head Cover
    G03584137Courtesy of SUBARU OF AMERICA, INC.
  14. Disconnect engine coolant hose from throttle body.

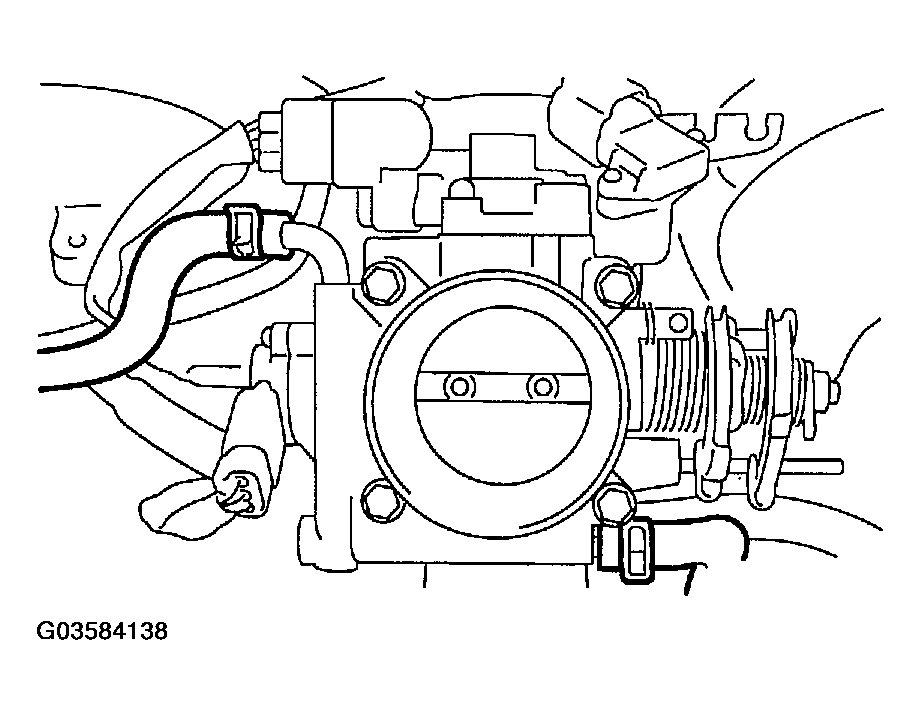

    Fig 13: Disconnecting Engine Coolant Hose From Throttle Body
    G03584138Courtesy of SUBARU OF AMERICA, INC.
  15. Disconnect brake booster hose.

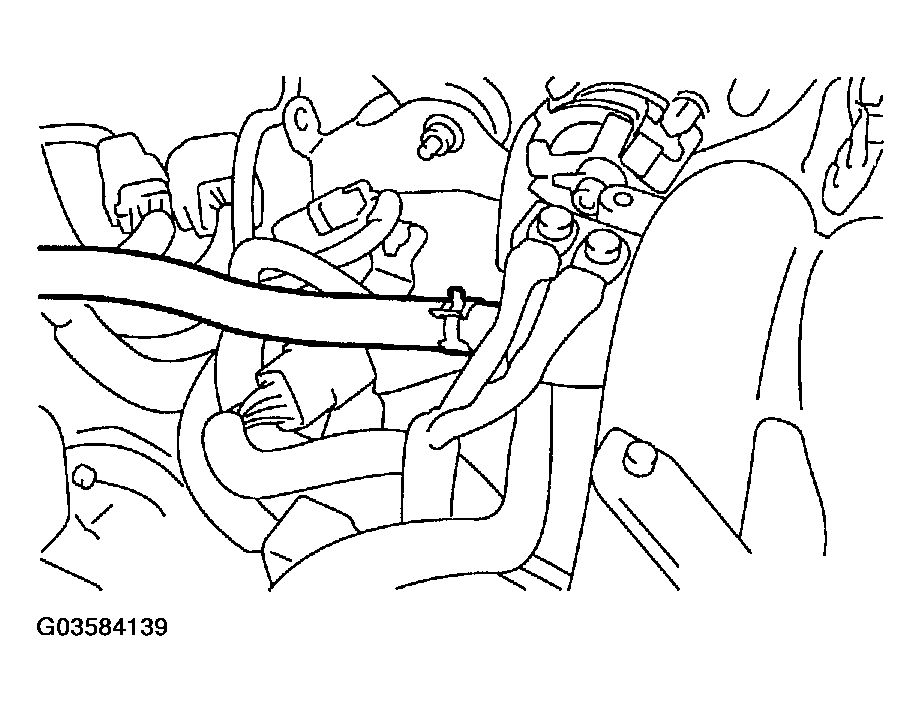

    Fig 14: Disconnecting Brake Booster Hose
    G03584139Courtesy of SUBARU OF AMERICA, INC.
  16. Remove EGR pipe from EGR valve.
    NOTE: Be careful not to drop gaskets.

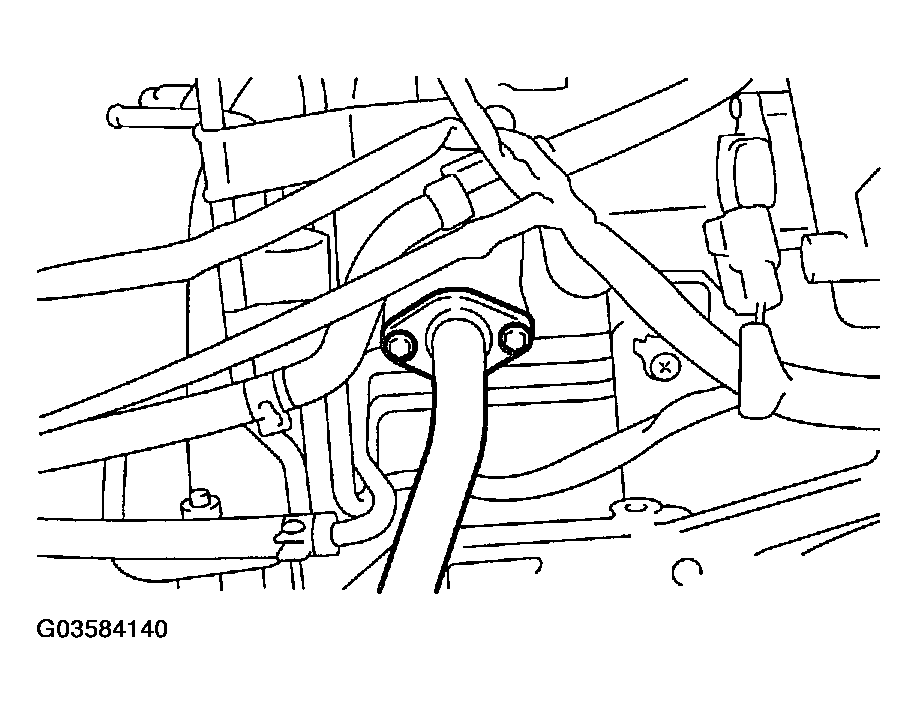

    Fig 15: Removing EGR Pipe From EGR Valve
    G03584140Courtesy of SUBARU OF AMERICA, INC.
  17. Disconnect engine harness connectors from bulkhead harness connectors.

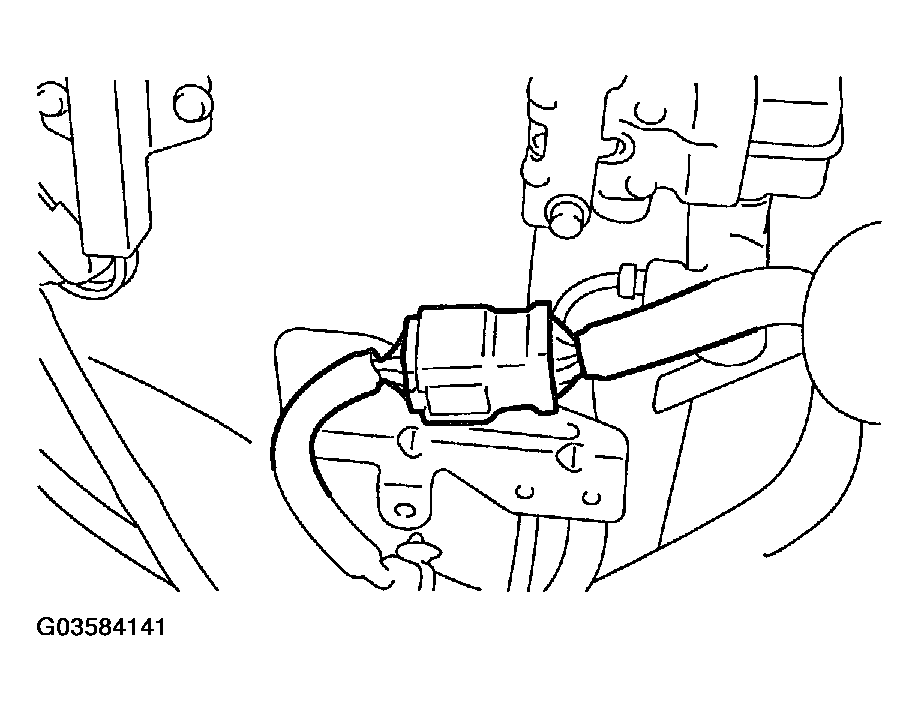

    Fig 16: Disconnecting Engine Harness Connectors From Bulkhead Harness Connectors
    G03584141Courtesy of SUBARU OF AMERICA, INC.
  18. Disconnect engine ground cable from intake manifold.

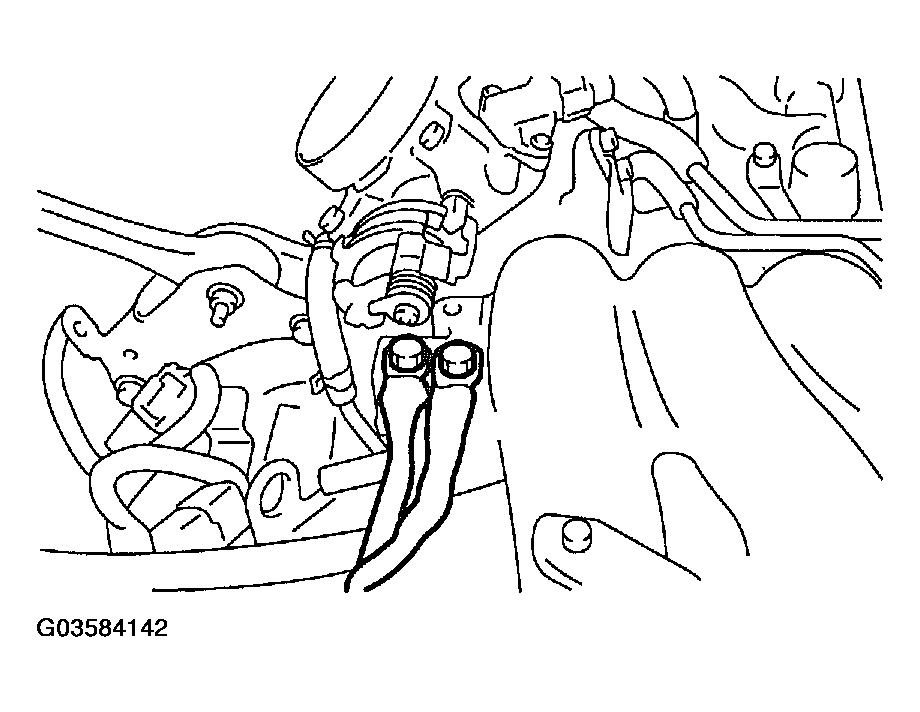

    Fig 17: Disconnecting Engine Ground Cable From Intake Manifold
    G03584142Courtesy of SUBARU OF AMERICA, INC.
  19. Disconnect fuel hoses from fuel pipes.
    WARNING:
    • Do not spill fuel.
    • Catch fuel from hoses in a container or cloth.

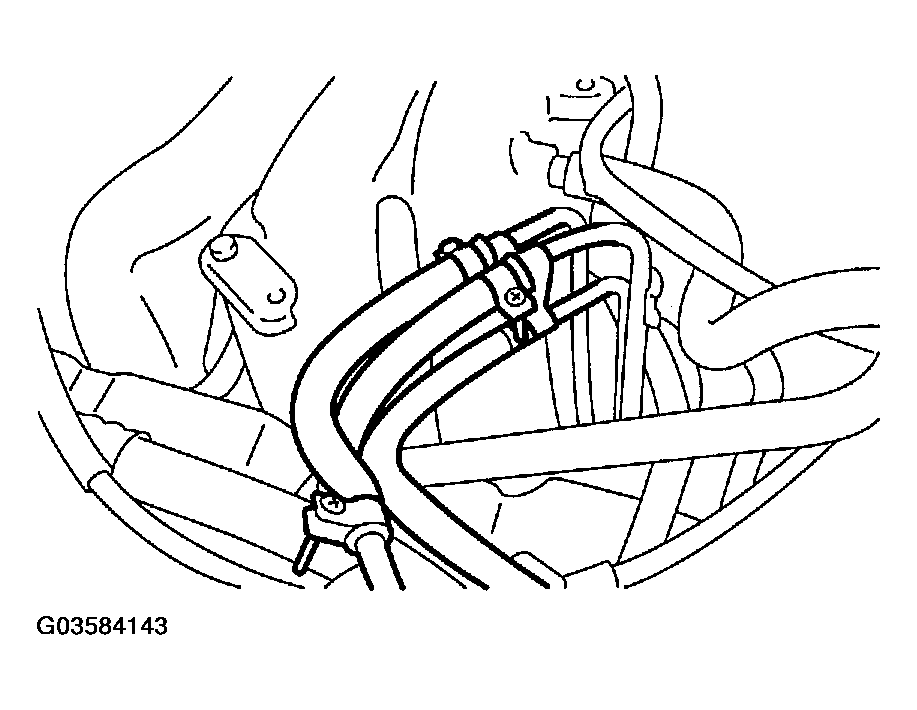

      Fig 18: Disconnecting Fuel Hoses From Fuel Pipes
      G03584143Courtesy of SUBARU OF AMERICA, INC.
  20. Remove ground cable from fuel pipe protector LH.

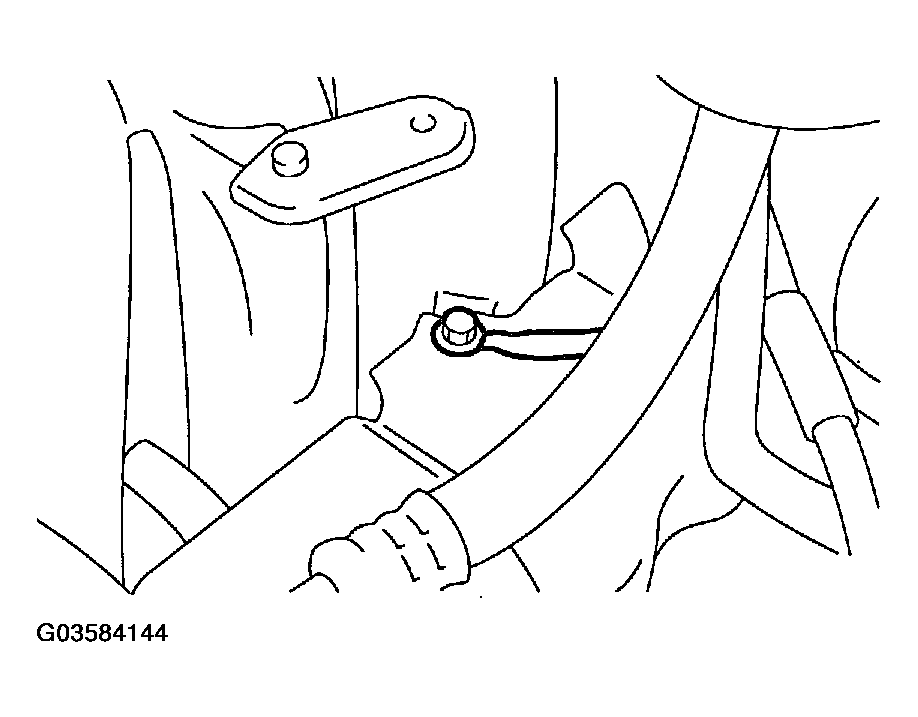

    Fig 19: Removing Ground Cable From Fuel Pipe Protector LH
    G03584144Courtesy of SUBARU OF AMERICA, INC.

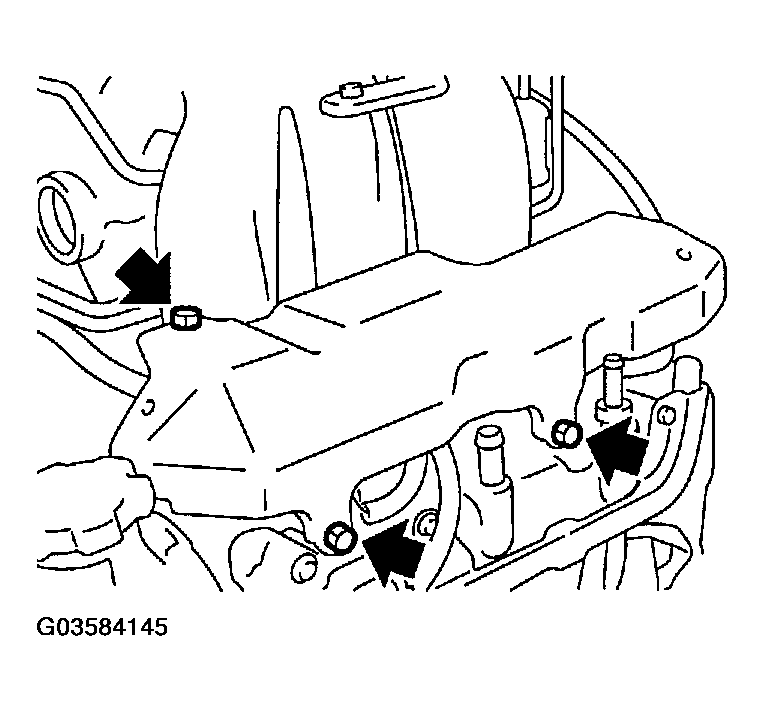

  21. Remove fuel pipe protector LH.
    Fig 20: Removing Fuel Pipe Protector LH
    G03584145Courtesy of SUBARU OF AMERICA, INC.
  22. Disconnect air assist hose (A).
  23. Remove the bolt (B), which holds fuel injector pipe LH onto cylinder head.

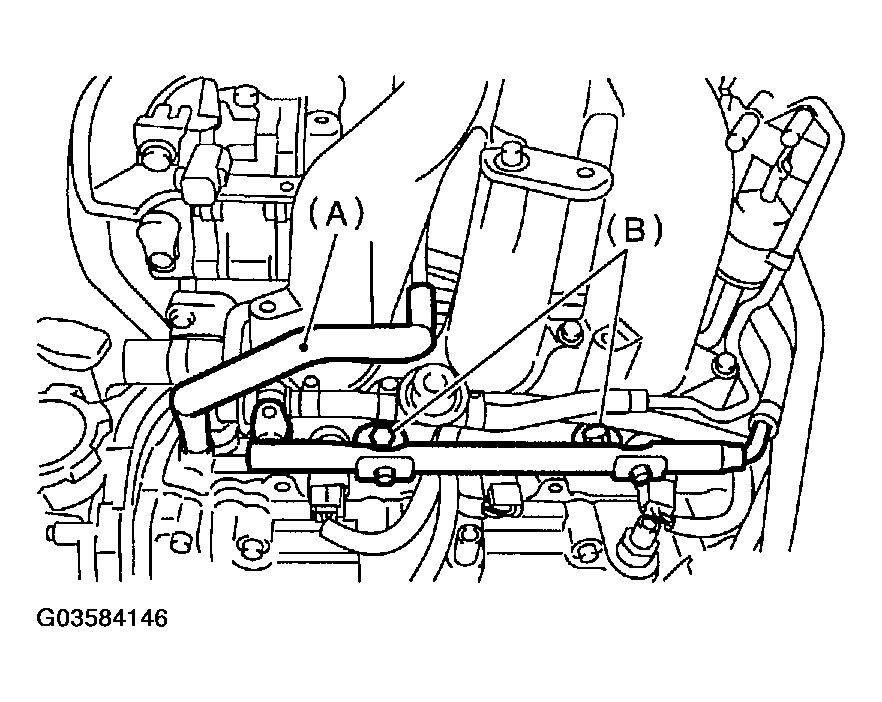

    Fig 21: Disconnecting Air Assist Hose
    G03584146Courtesy of SUBARU OF AMERICA, INC.
  24. Remove ground cable from fuel pipe protector RH.

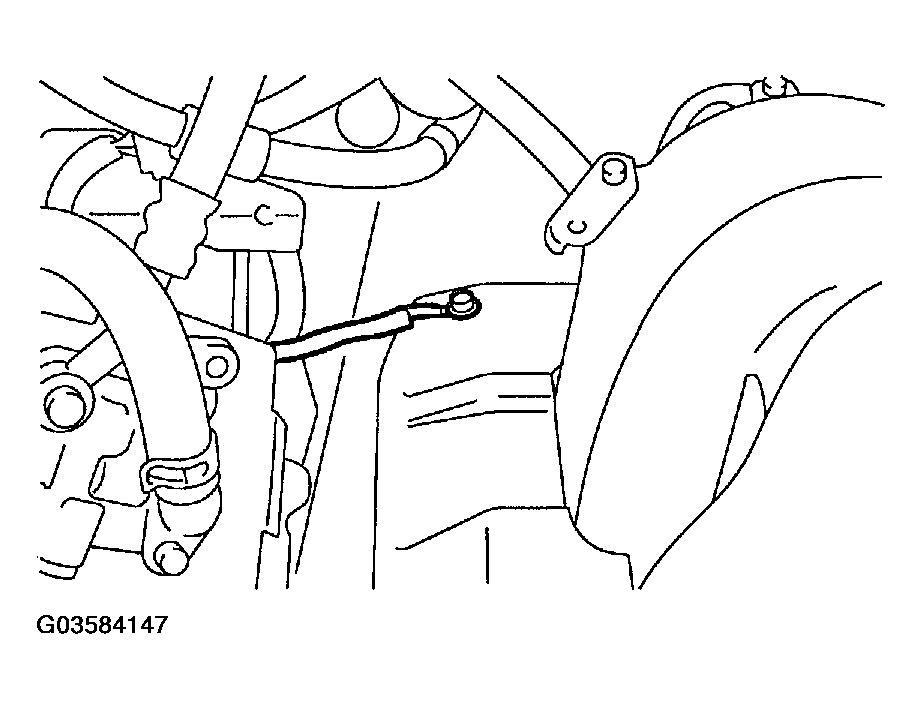

    Fig 22: Removing Ground Cable From Fuel Pipe Protector RH
    G03584147Courtesy of SUBARU OF AMERICA, INC.
  25. Remove fuel pipe protector RH.

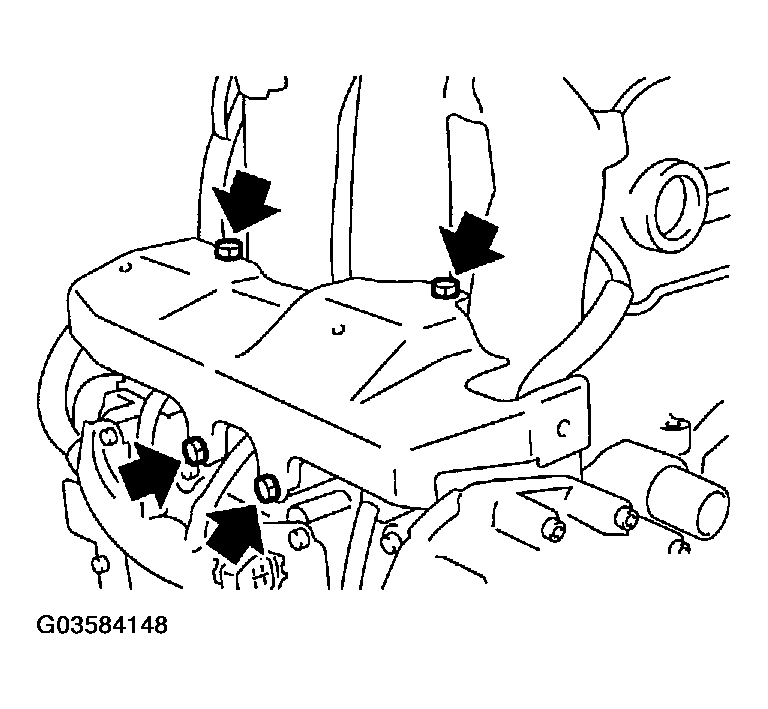

    Fig 23: Removing Fuel Pipe Protector RH
    G03584148Courtesy of SUBARU OF AMERICA, INC.
  26. Disconnect air assist hose (A).

    Remove the bolt (B), which holds fuel injector pipe RH onto cylinder head.

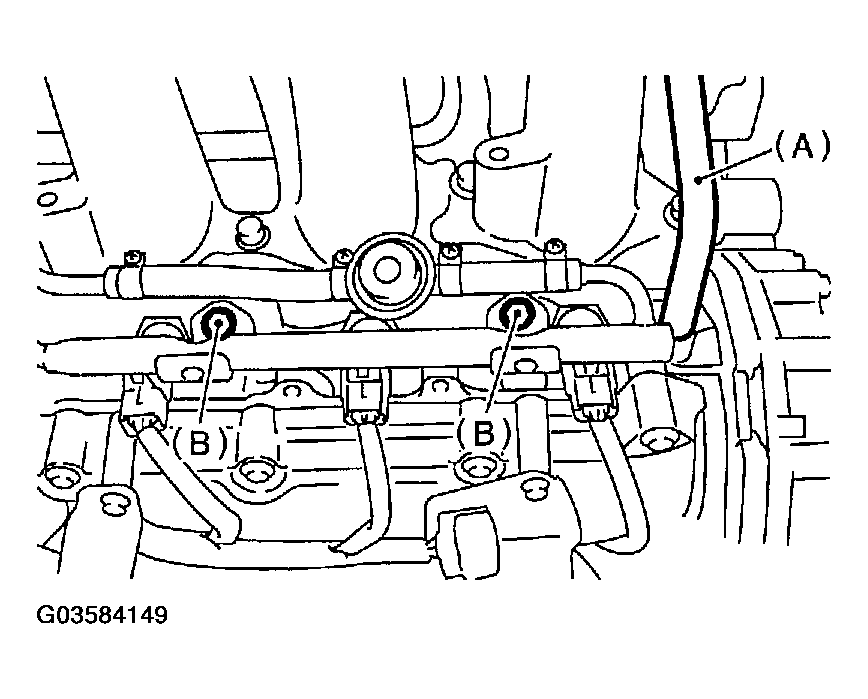

    Fig 24: Disconnecting Air Assist Hose (A)
    G03584149Courtesy of SUBARU OF AMERICA, INC.
  27. Remove bolts which holds intake manifold onto cylinder heads.

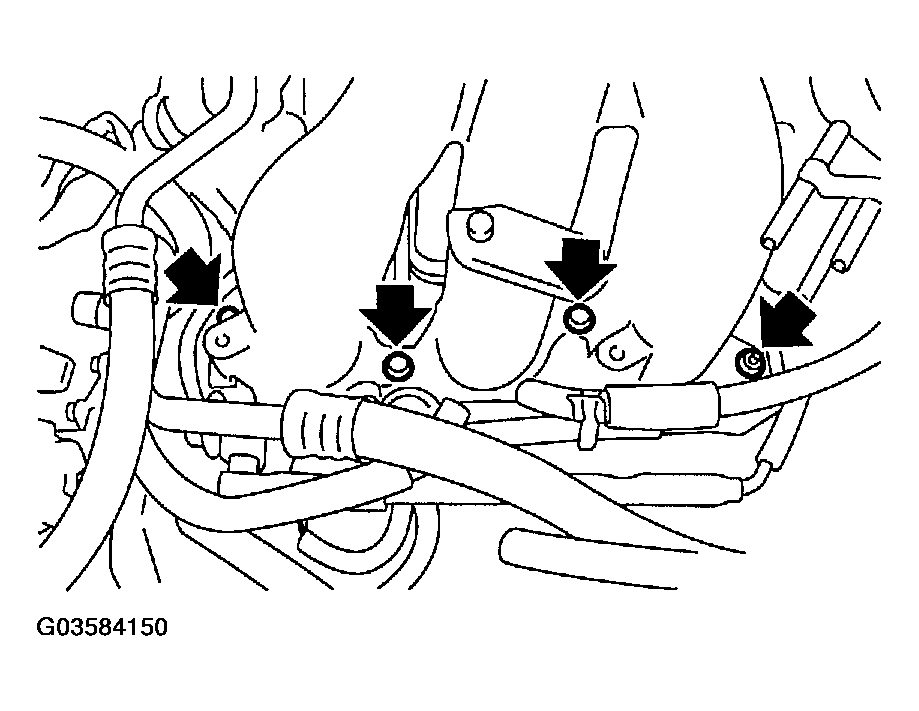

    Fig 25: Removing Bolts Which Holds Intake Manifold Onto Cylinder Heads (1 Of 2)
    G03584150Courtesy of SUBARU OF AMERICA, INC.

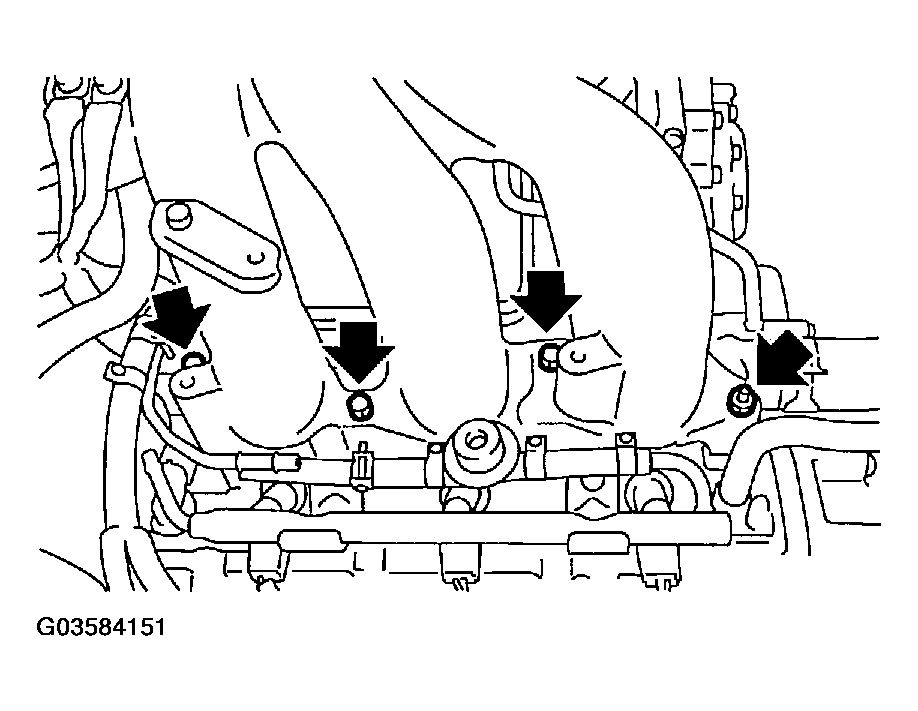

    Fig 26: Removing Bolts Which Holds Intake Manifold Onto Cylinder Heads (2 Of 2)
    G03584151Courtesy of SUBARU OF AMERICA, INC.
  28. Remove intake manifold.
