Home >> Subaru >> 2002 >> Outback VDC, 4D Sedan >> Repair and Diagnosis >> Body & Frame >> Power Seats >> Component Locations

Component Locations

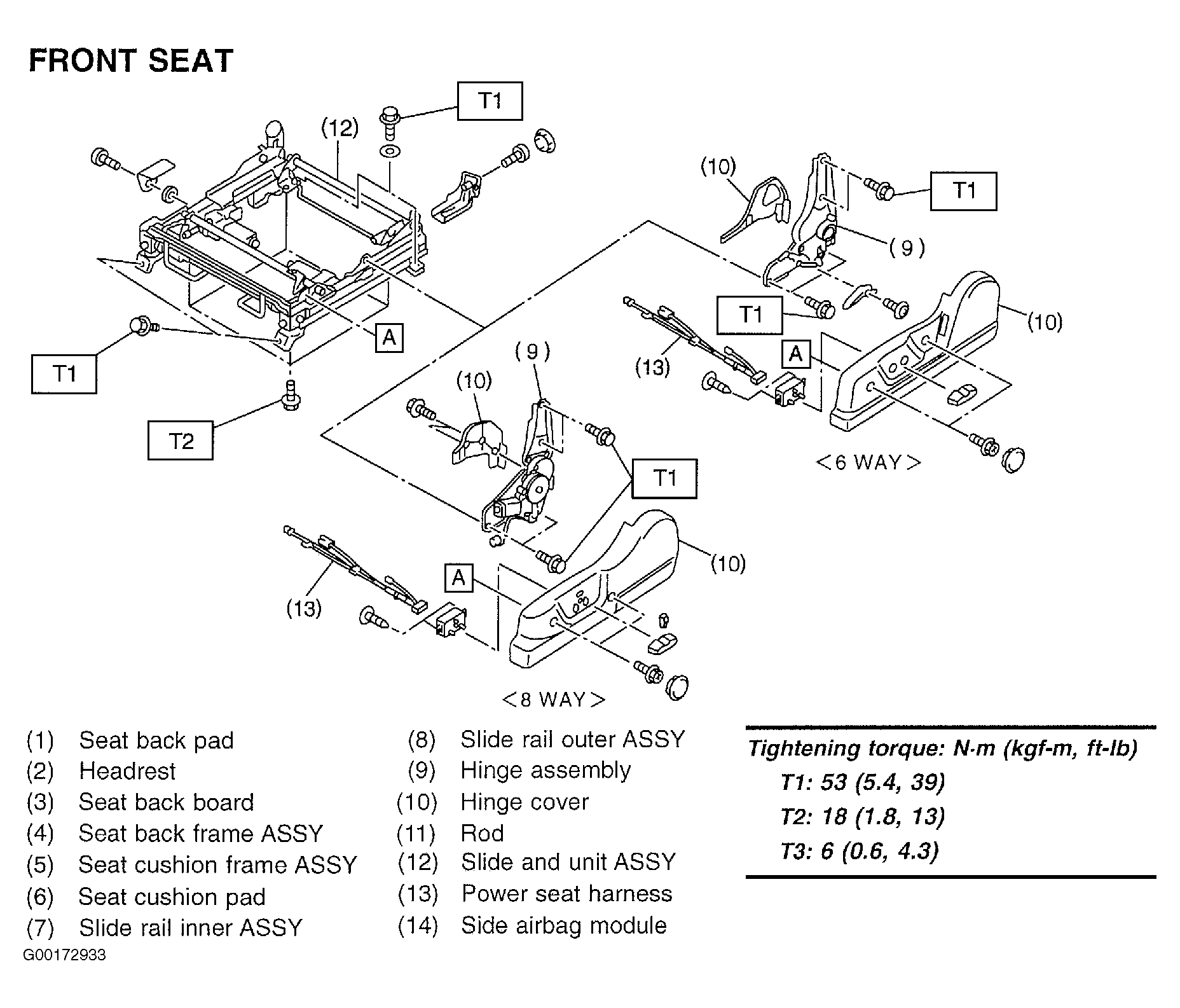

Fig 1: Locating Front Seat Components (Power Seats)

G00172933

Courtesy of SUBARU OF AMERICA, INC.
