Section 118 (Clutch System): Flywheel: Installation

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

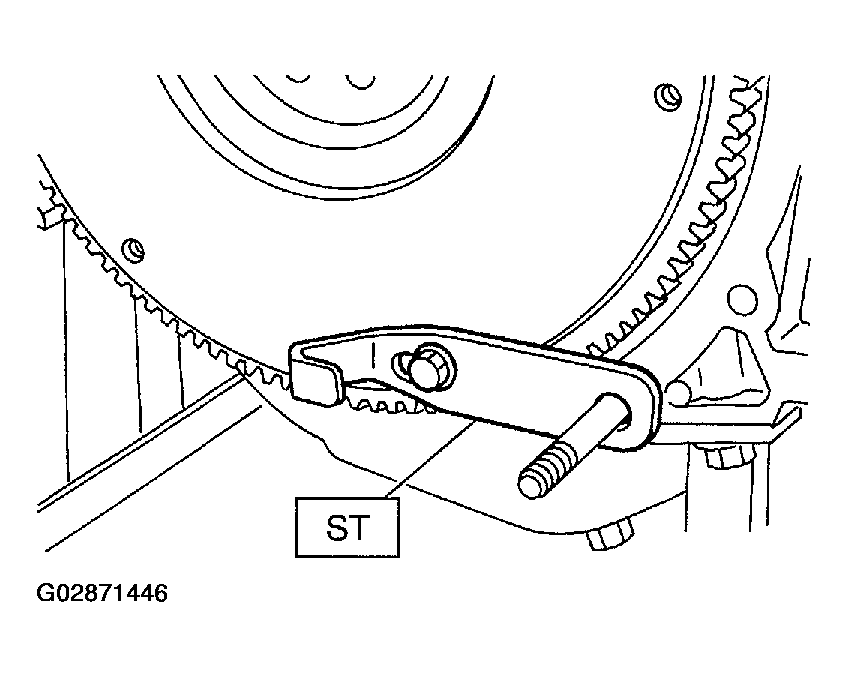

Install the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

Fig 1: Removing Flywheel
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross method.

Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

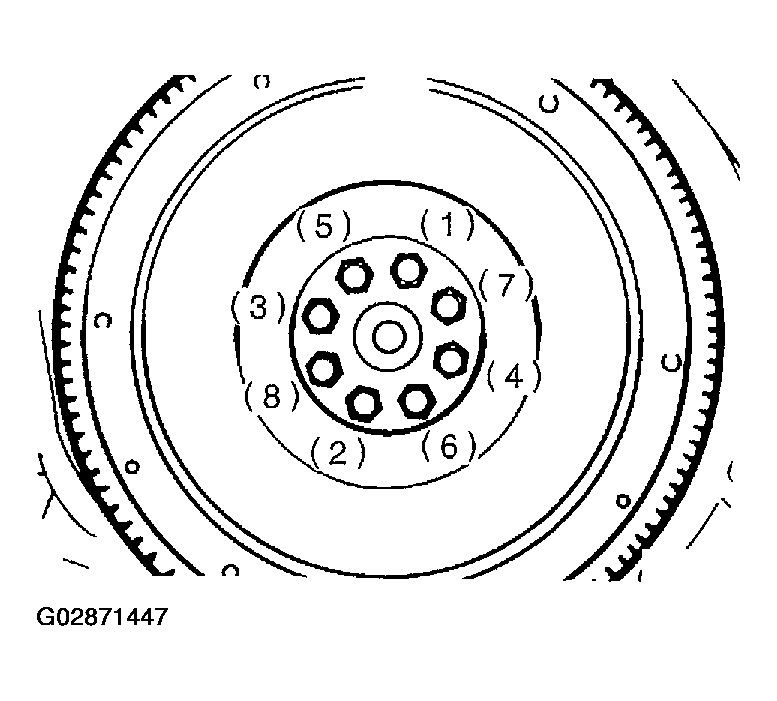

Fig 2: Tightening Flywheel Attaching Bolts To Specified Torque
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. Refer to INSTALLATION , Clutch Disc and Cover.
Install the transmission assembly. Refer to INSTALLATION , Manual Transmission Assembly.
