Home >> Subaru >> 2002 >> Outback L.L. Bean Edition >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> Differentials >> General Diagnostic Table >> Inspection

General Diagnostic Table: Inspection

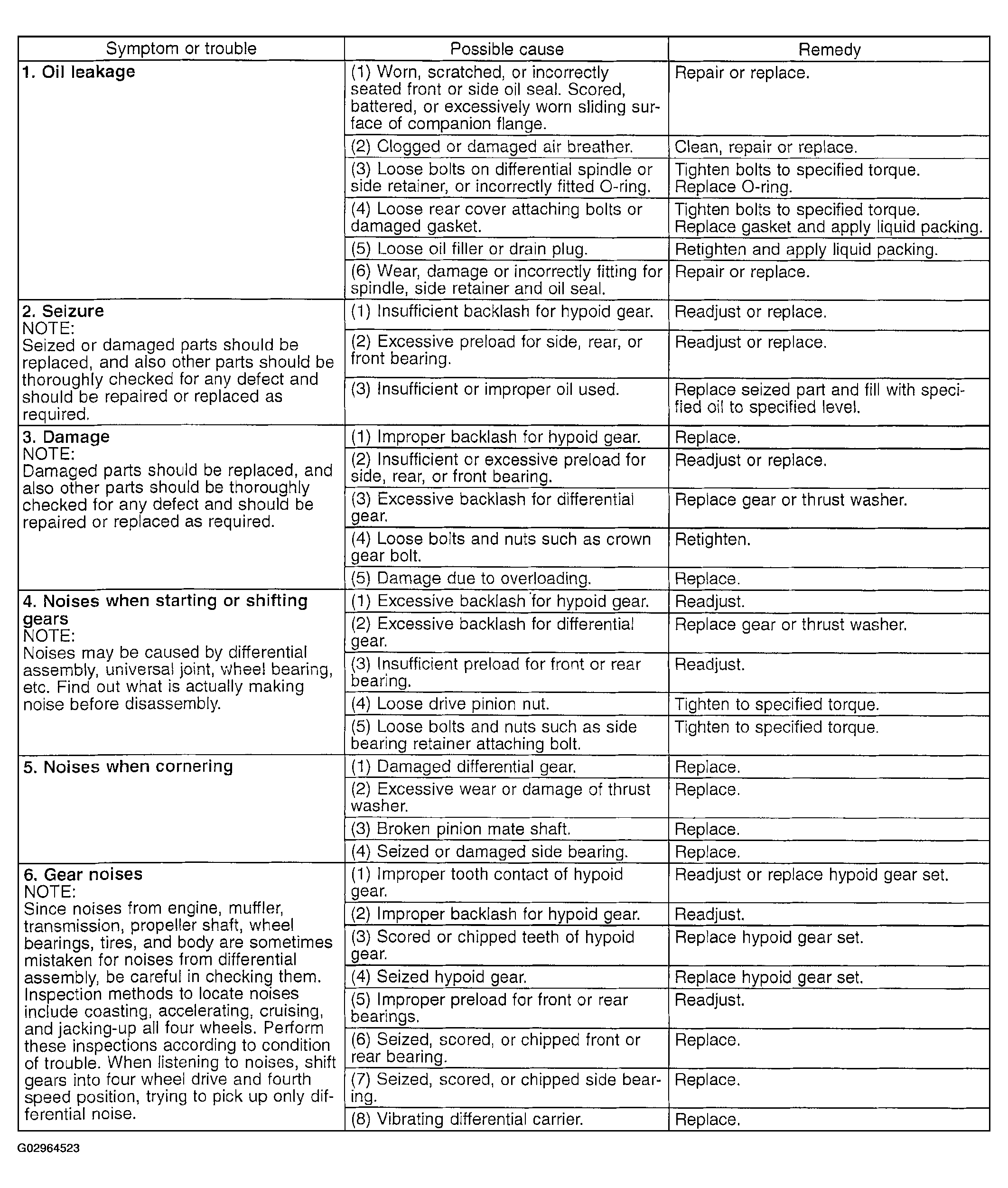

Fig 1: General Diagnostic Table

G02964523

Courtesy of SUBARU OF AMERICA, INC.
