Front Tweeter: Removal

  1. Disconnect ground cable from battery.
  2. Remove gusset cover.

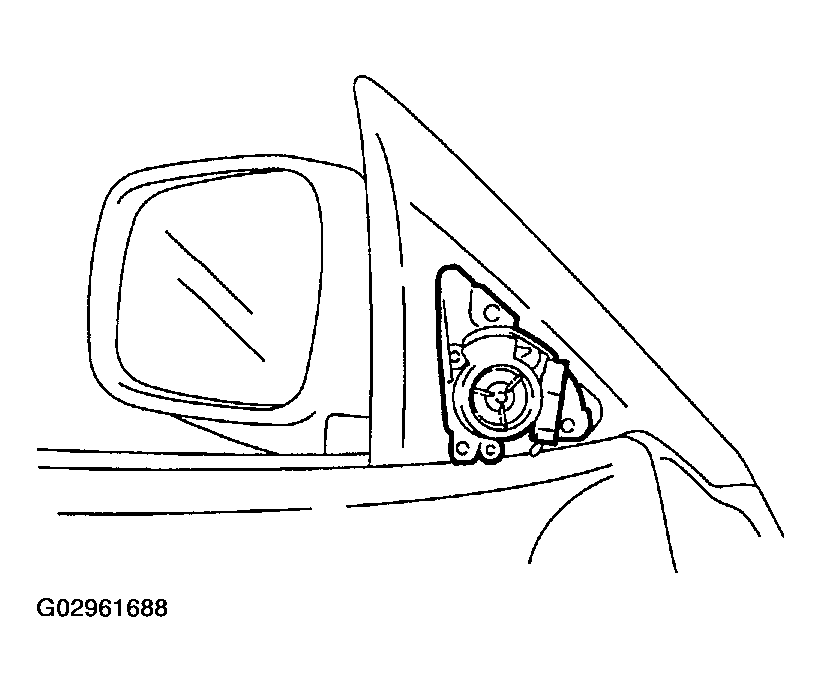

    Fig 1: Removing Gusset Cover
    G02961688Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect harness connector and remove tweeter.
