Differential Case Assembly

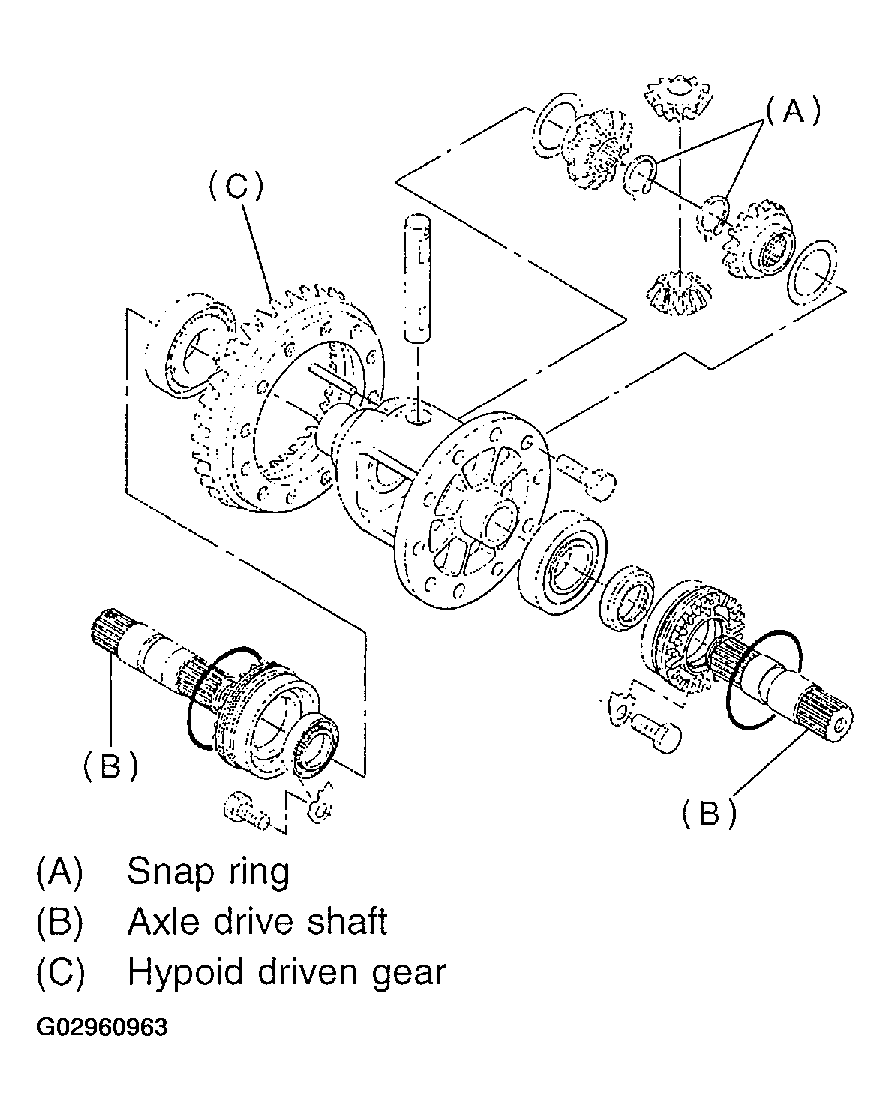

Remove right and left snap rings from differential, and then remove two axle drive shafts.
NOTE: During reassembly, reinstall each axle drive shaft in the same place from which it was removed.
Loosen twelve bolts and remove hypoid driven gear.

Fig 1: Removing Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Drive out straight pin from differential assembly toward hypoid driven gear.

Fig 2: Removing Straight Pin From Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.

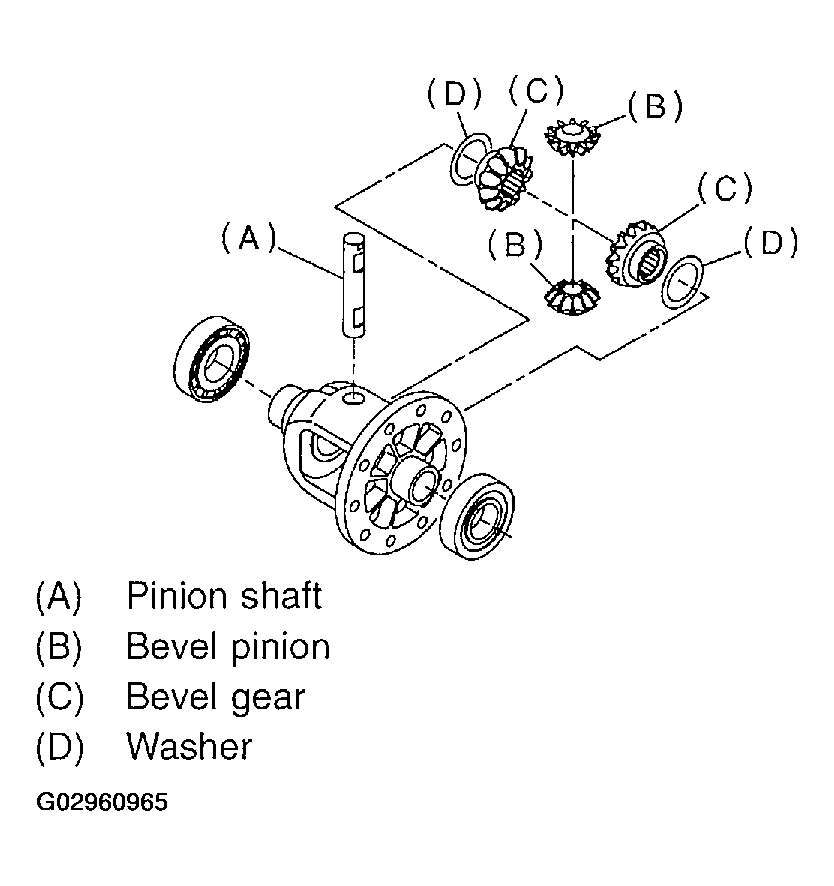

Pull out pinion shaft, and remove differential bevel pinion and gear and washer.

Fig 3: Removing Differential Bevel Pinion, Gear & Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove roller bearing using ST.
NOTE: When replacing bearing inner race, replace it with outer race as a set.

ST 399527700 PULLER SET

Fig 4: Removing Roller Bearing Using ST
Courtesy of SUBARU OF AMERICA, INC.
