Differential Case Assembly

Install bevel gear and bevel pinion together with washers, and insert pinion shaft.
NOTE: Face the chamfered side of washer toward gear.

Fig 1: Installing Bevel Gear & Bevel Pinion
Courtesy of SUBARU OF AMERICA, INC.
Measure backlash between bevel gear and pinion. If it is not within specifications, install a suitable washer to adjust it. Refer to ADJUSTMENT , Front Differential Assembly.
NOTE: Be sure the pinion gear tooth contacts adjacent gear teeth during measurement.

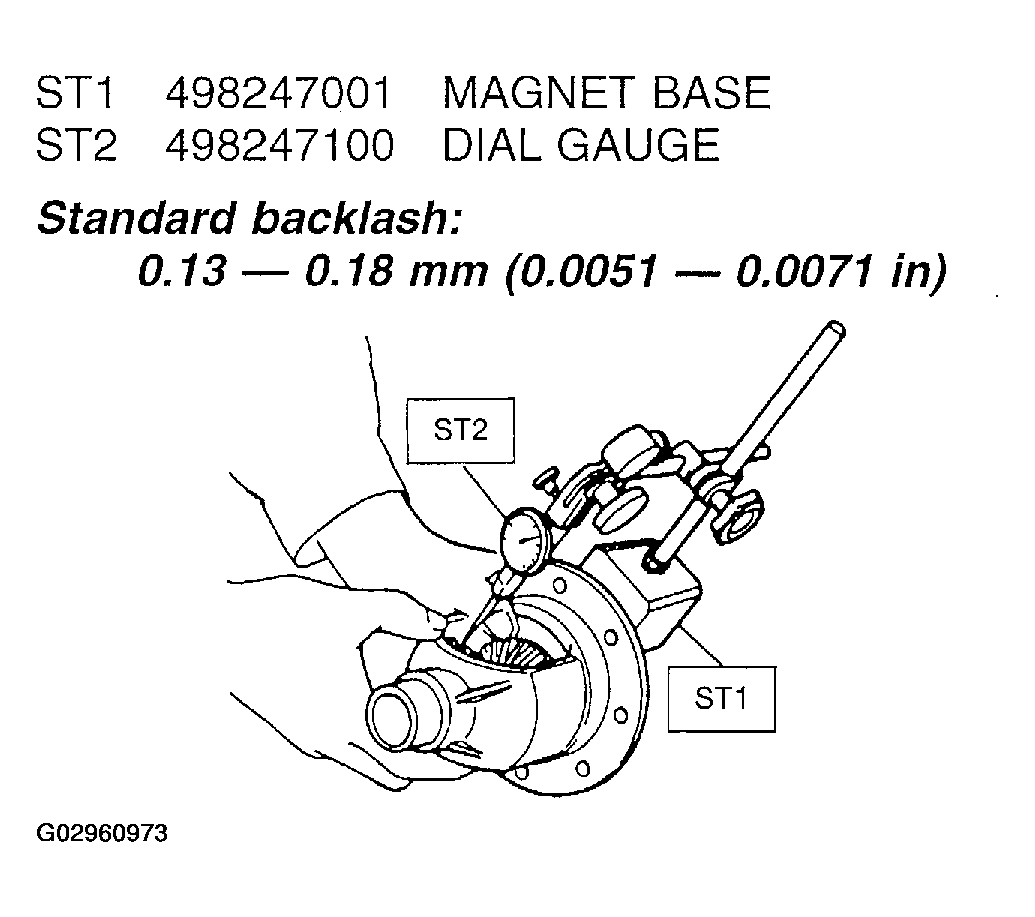

Fig 2: Measuring Backlash Between Bevel Gear & Pinion
Courtesy of SUBARU OF AMERICA, INC.
Align pinion shaft and differential case at their holes, and drive straight pin into holes from the hypoid driven gear side, using ST.
NOTE: Lock straight pin after installing.

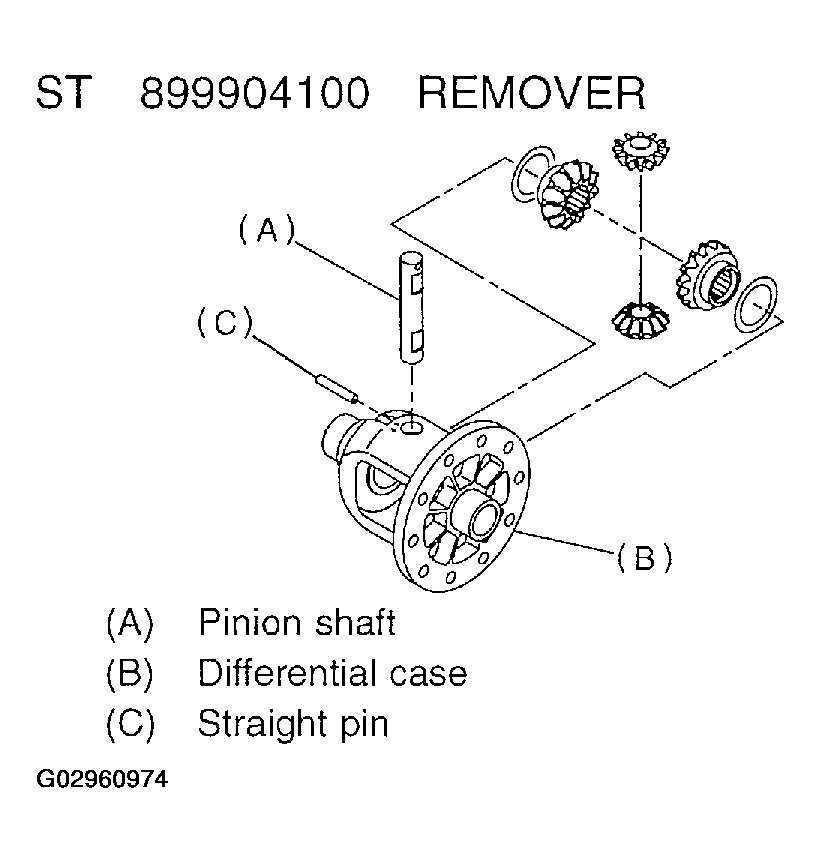

Fig 3: Aligning Pinion Shaft & Differential Case At Their Holes
Courtesy of SUBARU OF AMERICA, INC.
Install roller bearing to differential case.
CAUTION: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 lmp ton).

NOTE: Be careful to use roller bearing outer races as a set.

Fig 4: Installing Roller Bearing To Differential Case
Courtesy of SUBARU OF AMERICA, INC.
Install hypoid driven gear to differential case using twelve bolts.
Tightening torque:
1. T: 62 N.m (6.3 kgf-m, 45.6 ft-lb)

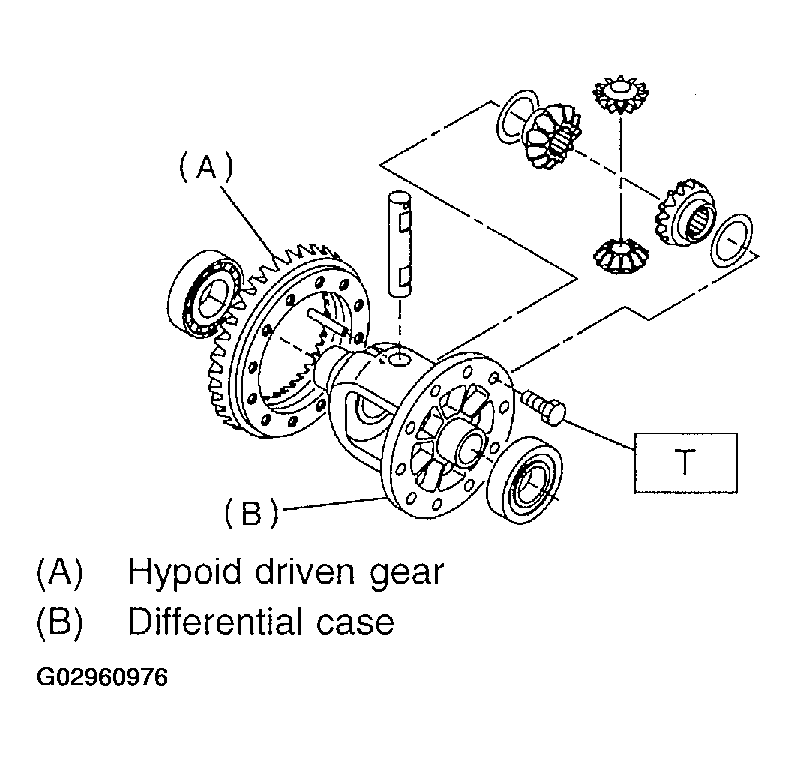

Fig 5: Installing Hypoid Driven Gear To Differential Case
