Install the water pump onto the left-hand cylinder head.
CAUTION:
- Replace gasket with a new one.
- When installing water pump, tighten bolts in two stages in alphabetical sequence as shown in figure.
Tightening torque:

First; 12 N.m (1.2 kgf-m, 8.7 ft-lb)

Second; 12 N.m (1.2 kgf-m, 8.7 ft-lb)

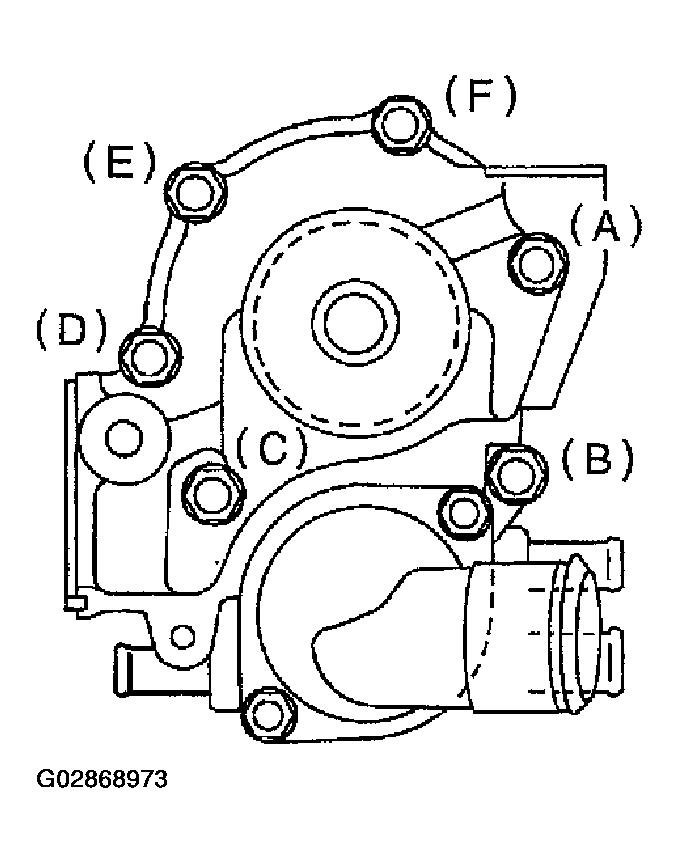

Fig 1: Tightening Bolts In Stages And Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the tensioner bracket.
Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

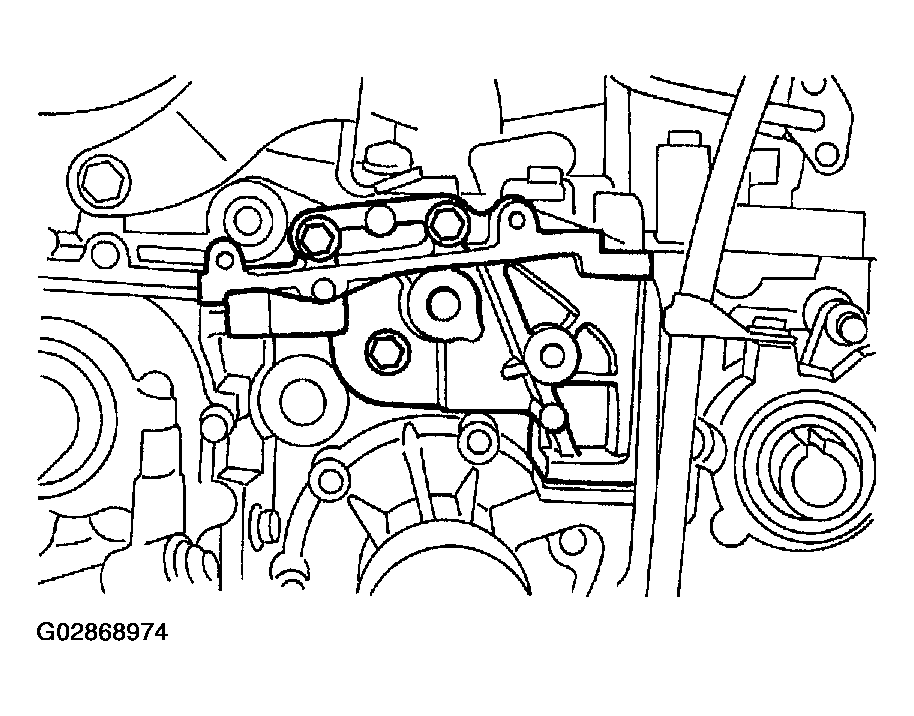

Fig 2: Installing The Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the left-hand belt cover No. 2.
Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)

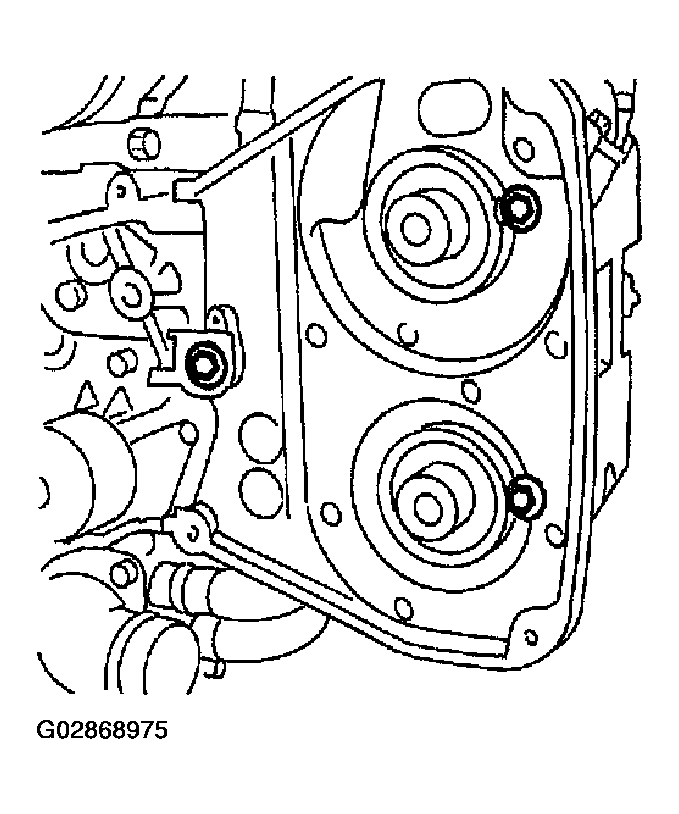

Fig 3: Installing The Left-Hand Belt Cover No. 2
Courtesy of SUBARU OF AMERICA, INC.
Install the left-hand camshaft sprockets by using ST.
ST 499207400 CAMSHAFT SPROCKET WRENCH

Tightening torque: 98 N.m (10.0 kgf-m, 72.4 ft-lb)

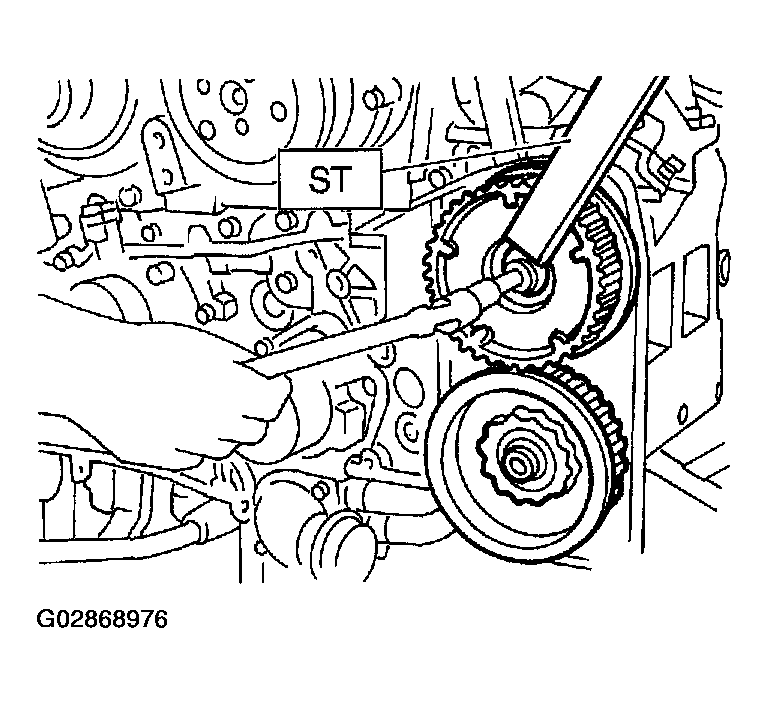

Fig 4: Installing The Left-Hand Camshaft Sprockets
Courtesy of SUBARU OF AMERICA, INC.
Install the camshaft position sensor. CAMSHAFT POSITION SENSOR .
Install the belt idler No. 2 (C).
Install the belt idler (B).
Install the automatic belt tension adjuster (A) which has a tension rod held by a pin. Refer to TIMING BELT ASSEMBLY .
Tightening torque: 39.4 N.m (4.0 kgf-m, 28.9 ft-lb)

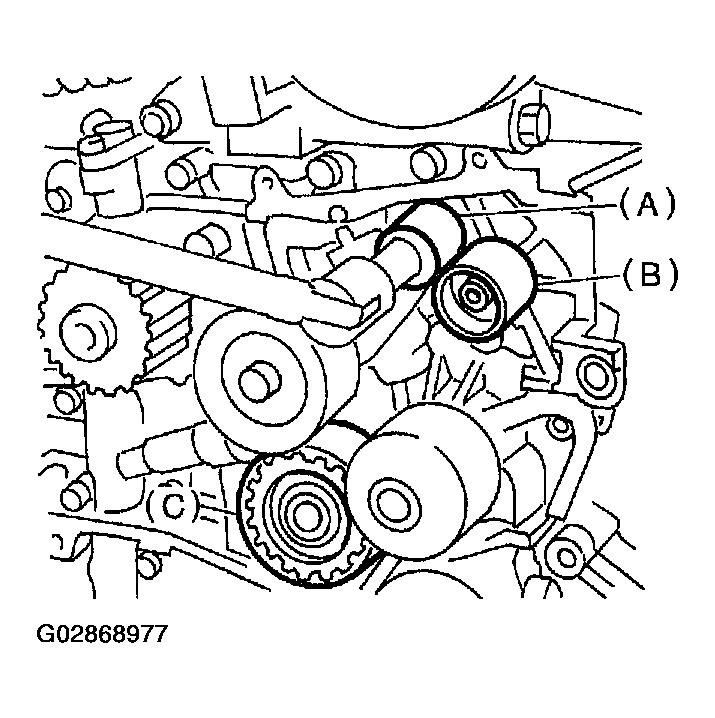

Fig 5: Installing The Automatic Belt Tension Adjuster
Courtesy of SUBARU OF AMERICA, INC.
Install the timing belt. Refer to TIMING BELT ASSEMBLY .
Install the V-belts. Refer to V-BELT .
Install the radiator main fan and sub fan motor assemblies. Refer to Radiator Main Fan and Fan Motor and Radiator Sub Fan and Fan Motor .
Install the reservoir tank.

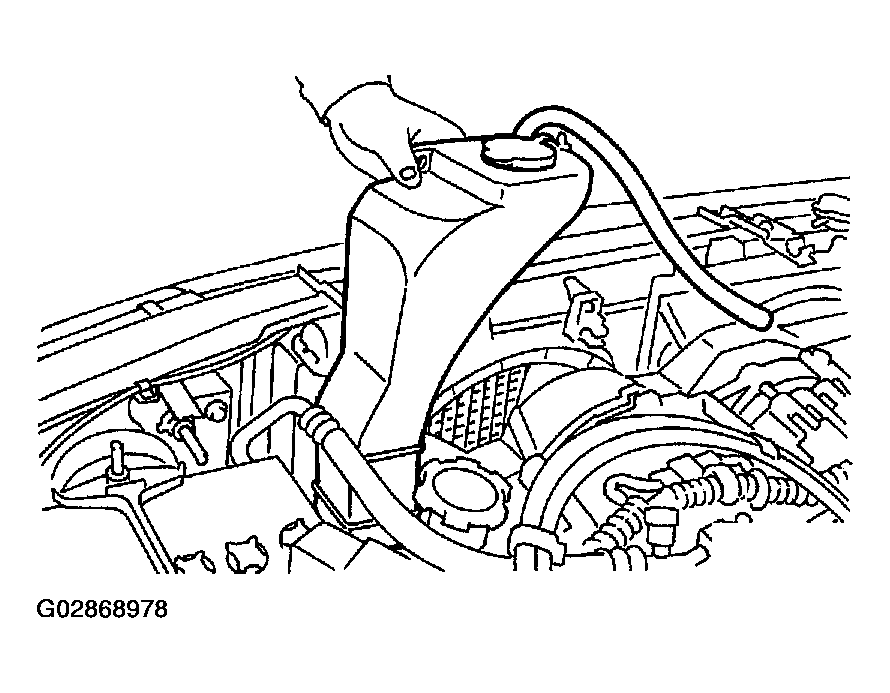

Fig 6: Installing The Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the over flow hose.
Lift up the vehicle.
Connect the radiator outlet hose (A) and heater hose (B) to the water pump.

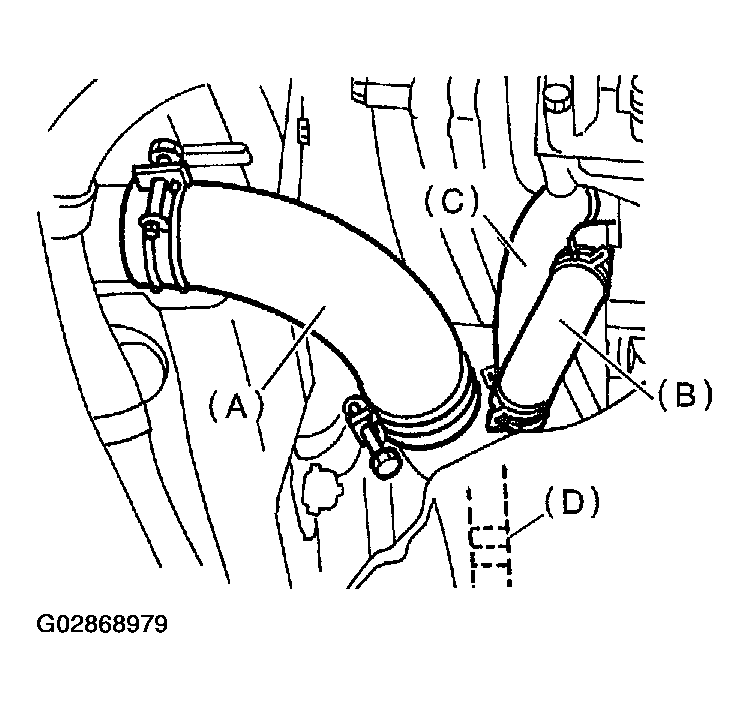

Fig 7: Connecting The Radiator Outlet And Heater Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the water by-pass hose (C) and oil cooler hose (D).
Install the bolt which installs water by-pass pipe onto the oil pump.

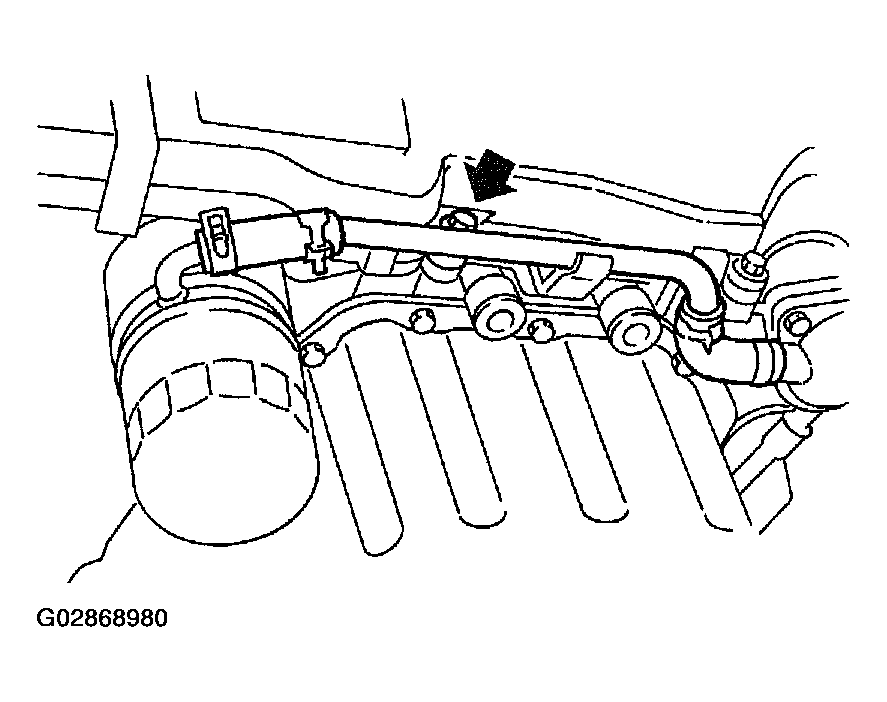

Fig 8: Installing The Bolt Which Installs Water By-Pass Pipe Onto The Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to radiator main fan and sub fan motors.
Install the radiator under cover.
Install the under cover.
Lower the vehicle.
Connect the battery ground cable.

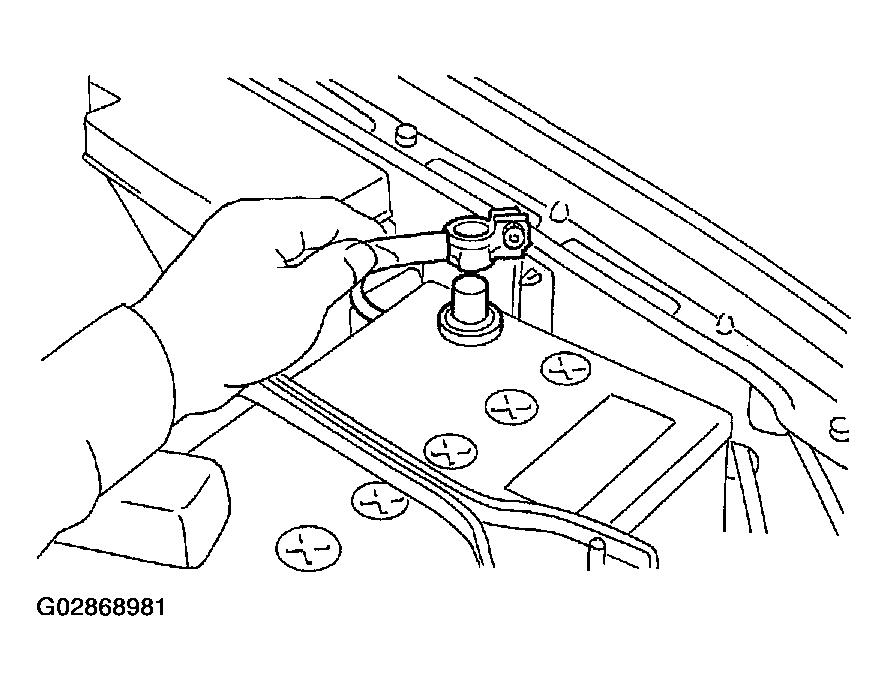

Fig 9: Connecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Fill coolant. Refer to FILLING OF ENGINE COOLANT .
