Oil Pump: Installation

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Do the following:

Apply fluid packing to matching surfaces of oil pump.
Fluid packing: THREE BOND 1215 or equivalent

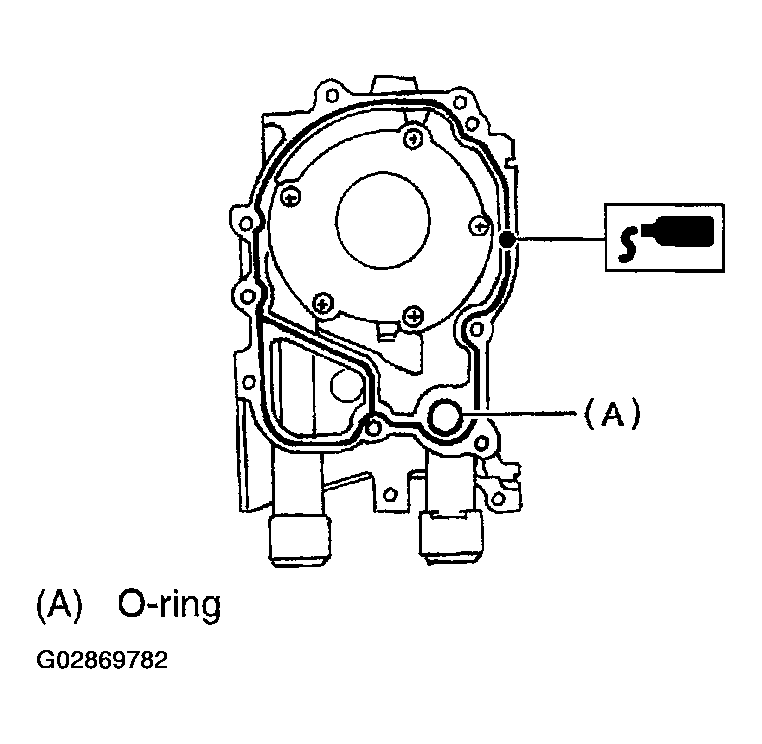

Fig 1: Applying Fluid Packing
Courtesy of SUBARU OF AMERICA, INC.
Replace the O-ring with a new one.
Apply a coat of engine oil to the inside of the oil seal.

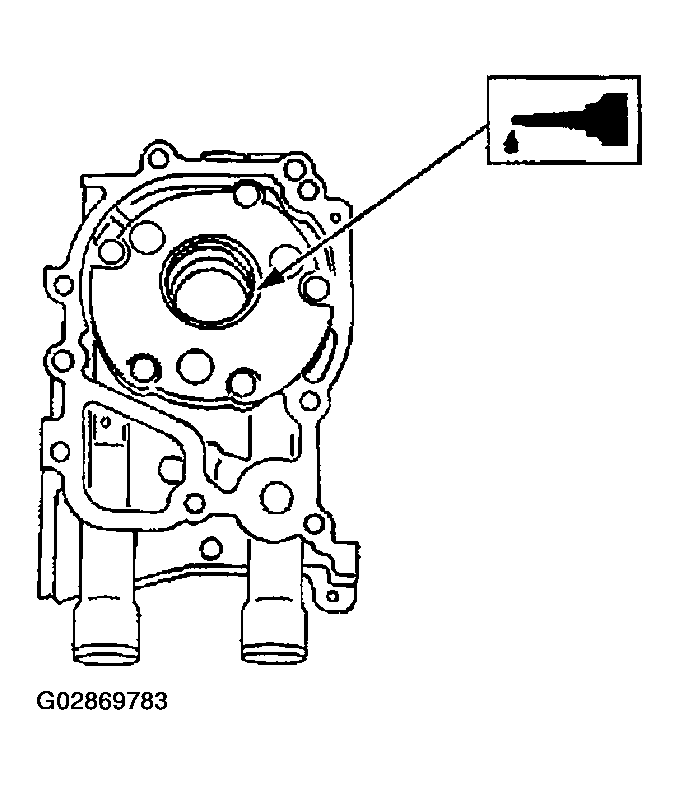

Fig 2: Applying Coat Of Engine Oil
Courtesy of SUBARU OF AMERICA, INC.
Be careful not to scratch oil seal when installing oil pump on cylinder block.
Position the oil pump, aligning the notched area with the crankshaft, and push the oil pump straight.
CAUTION: Make sure the oil seal lip is not folded.
Install the oil pump.
Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

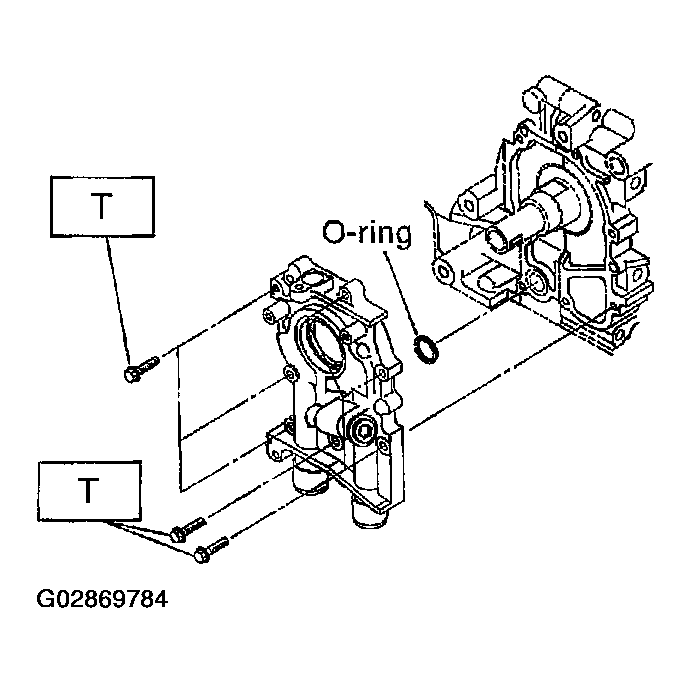

Fig 3: Installing Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
