Engine Oil Cooler: Installation

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
Tightening torque:

T; 54 N.m (5.5 kgf-m, 39.8 ft-lb)

CAUTION: Always use a new O-ring.

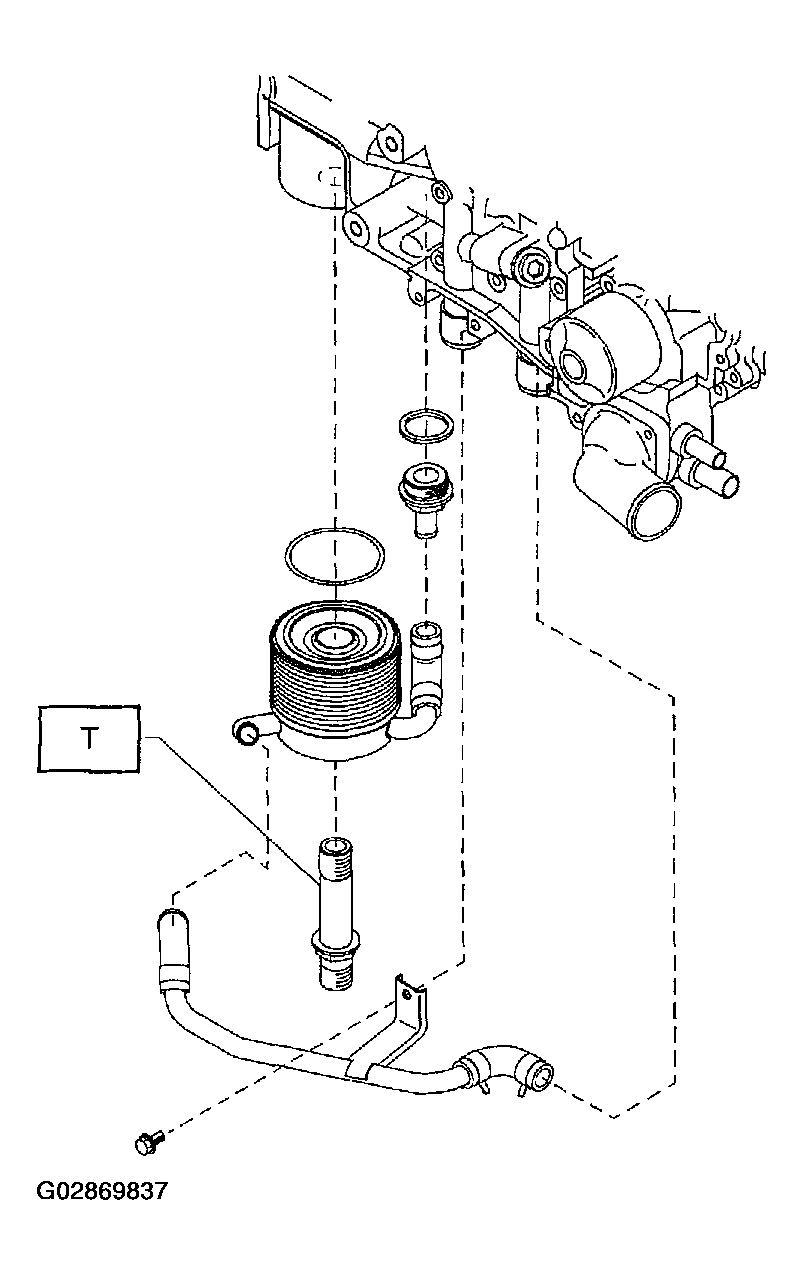

Fig 1: Installing Engine Oil Cooler
Courtesy of SUBARU OF AMERICA, INC.
