Relay and Fuse: Inspection

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

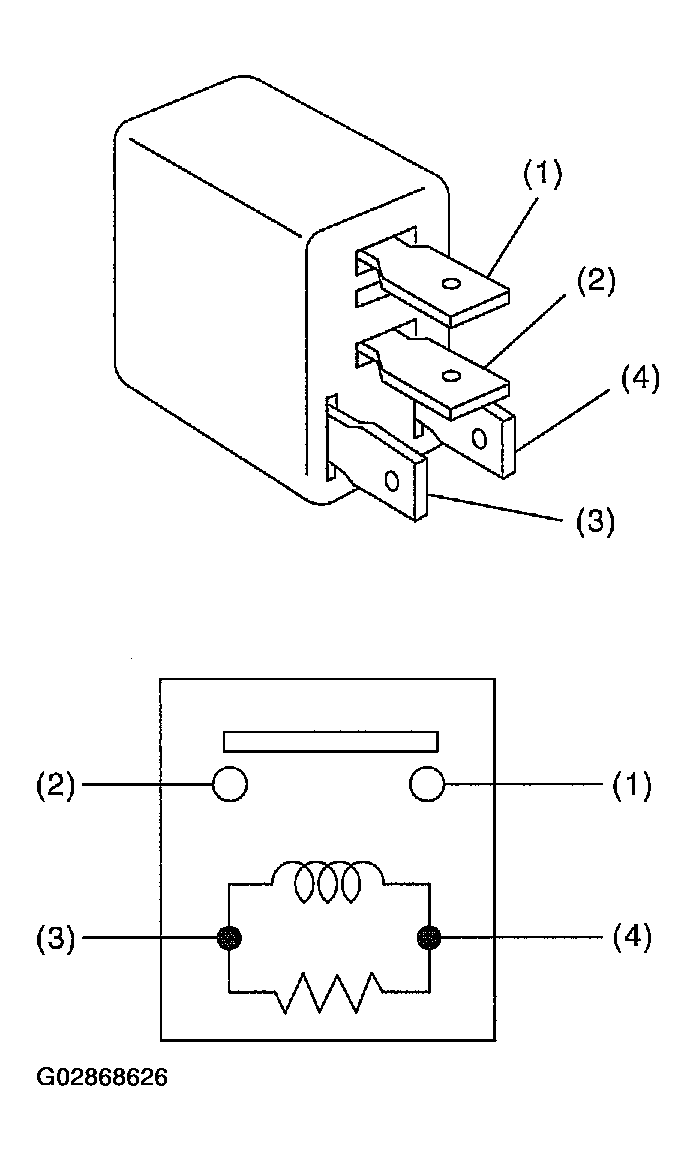

Fig 1: Identifying Relay Terminals
G02868626Courtesy of SUBARU OF AMERICA, INC.

(3)-(4):  Continuity exists

(1)-(2):  No continuity

While applying battery voltage to the cable between (3) and (4), check continuity between (1) and (2).

If no continuity exists, replace the relay with a new one.
