Heater Core: Removal

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater and cooling unit. Refer to Control Unit  .
  2. Loosen the screws to remove heater core cover.

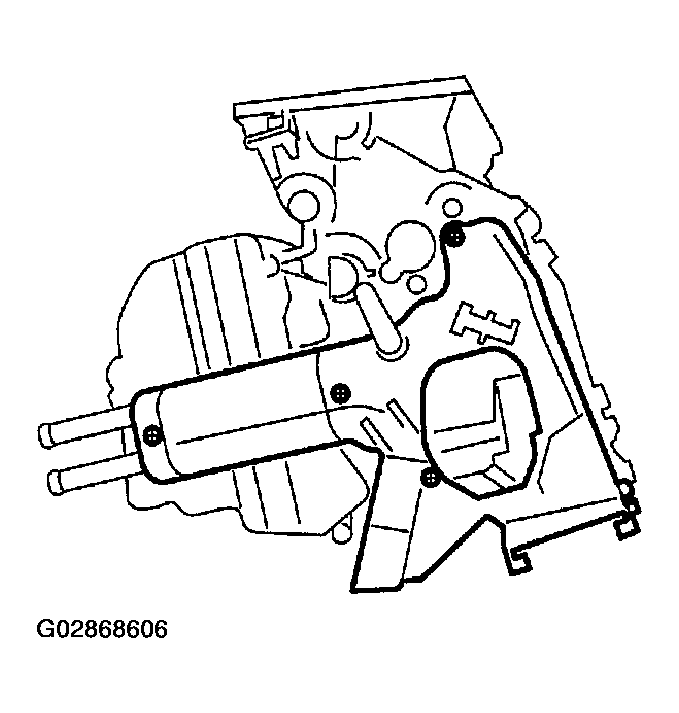

    Fig 1: Removing Heater Core Cover
    G02868606Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the heater core.

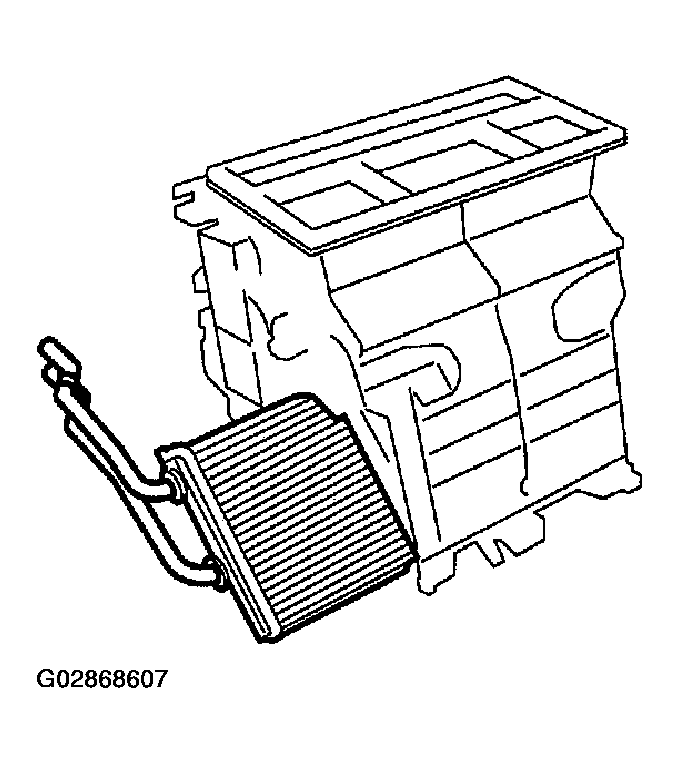

    Fig 2: Removing The Heater Core
    G02868607Courtesy of SUBARU OF AMERICA, INC.
