Blower Resistor: Inspection
WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.

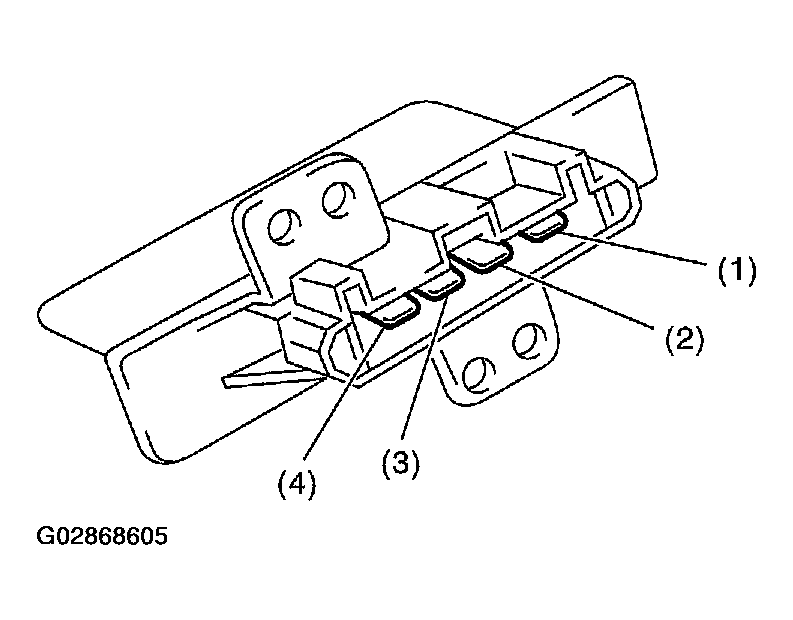

Measure the blower resistor resistance.
BLOWER RESISTOR RESISTANCE CHART
| Terminal No. |
Standard |
| 3 and 1 |
Approx. 0.51 ohm |
| 3 and 2 |
Approx. 2.70 ohm |
| 3 and 4 |
Approx. 1.43 ohm |
If NG, replace the blower resistor.
