Inhibitor Switch: Adjustment

  1. Loosen the three inhibitor switch securing bolts.
  2. Shift the select lever to the N range.
  3. Insert ST as vertical as possible into the holes in the inhibitor switch lever and switch body.

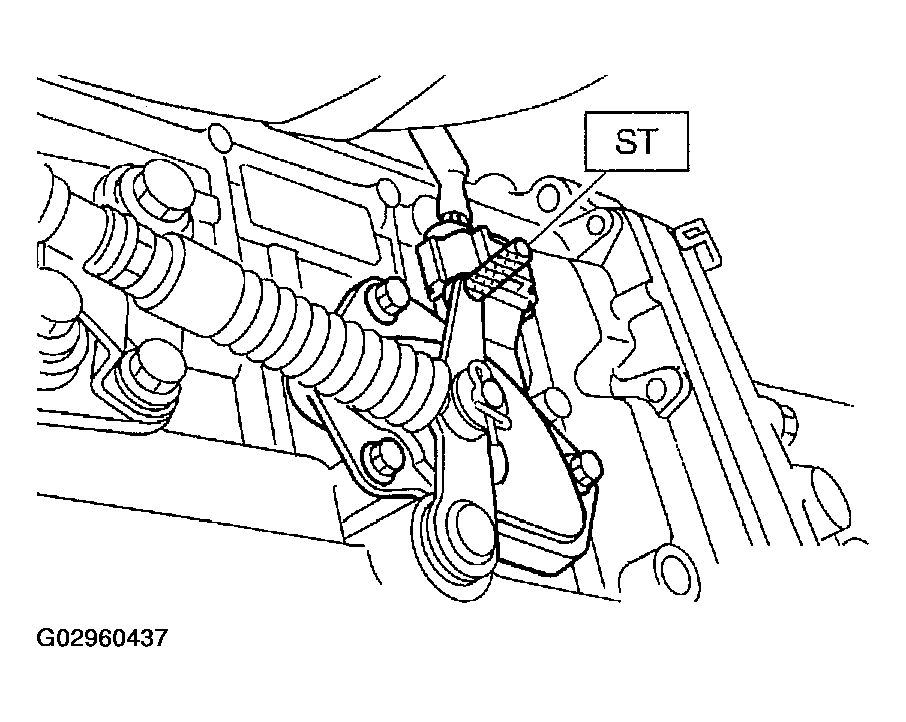

    Fig 1: Inserting ST Vertically
    G02960437Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten the three inhibitor switch bolts.
    1. Tightening torque:  3.4 N.m (0.35 kgf-m, 2.5 ft-lb)
  5. Repeat the above checks. If the inhibitor switch is determined to be "faulty", replace it.
