Planetary Gear And Plate

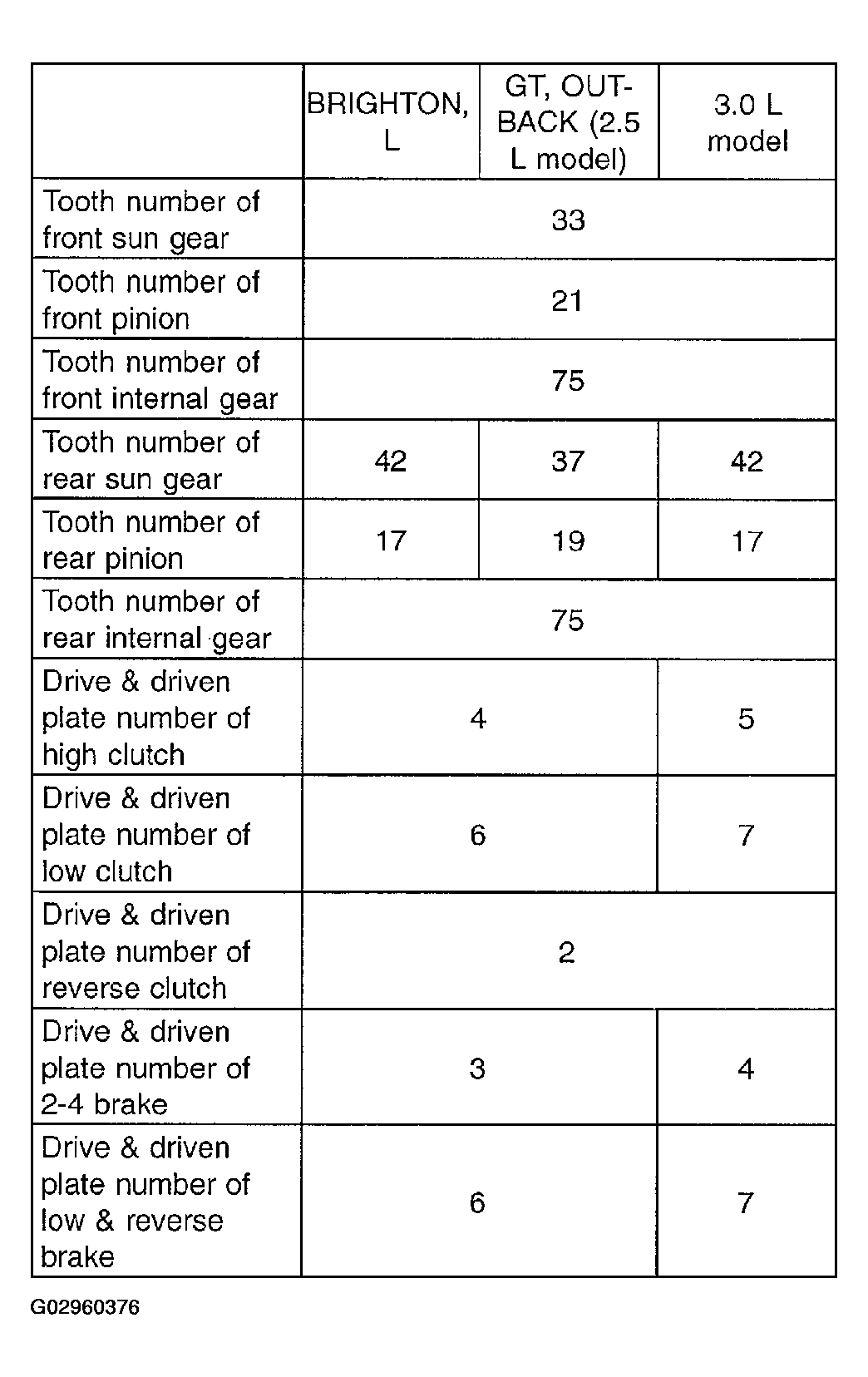

Fig 1: Planetary Gear & Plate Specifications Chart
G02960376Courtesy of SUBARU OF AMERICA, INC.
