Subaru
>>
2002
>>
Outback Base, 4D Wagon, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission (Diagnostics)
>>
Transmission Control Module (TCM) I/O Signal
>>
Schematic
>>
With VDC System
With VDC System

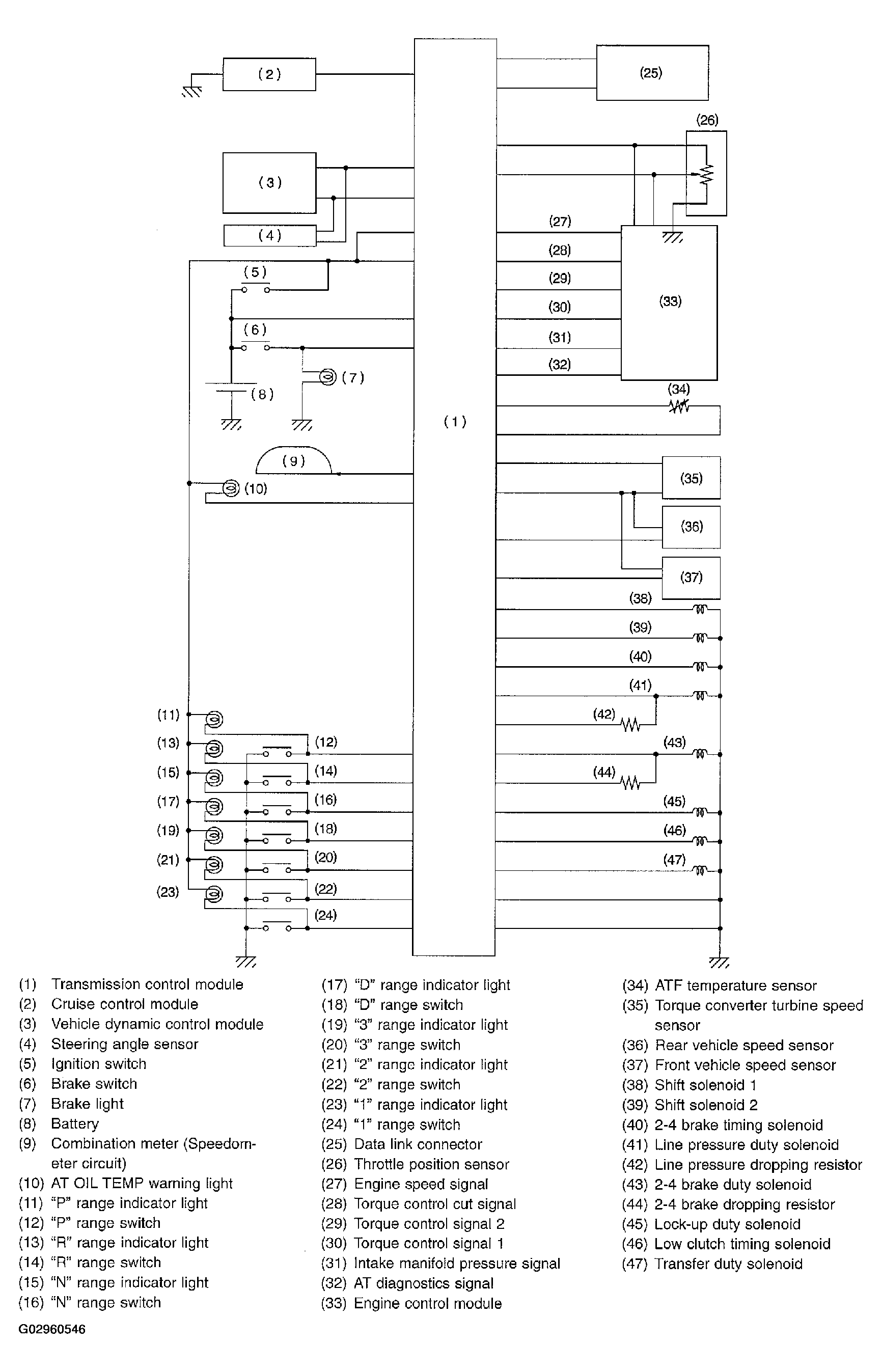

Fig 1: Transmission Control Module Schematic - With VDC System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
